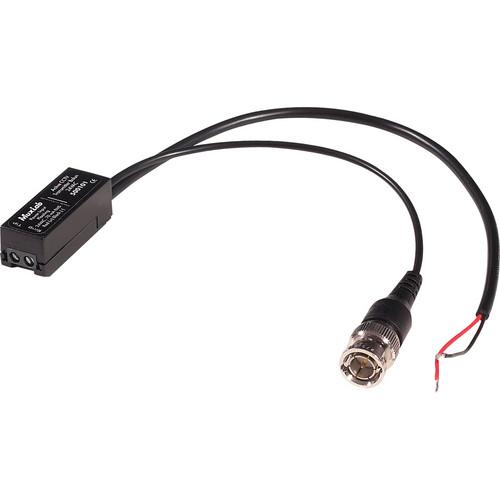

User Manual for MuxLab 500101 Active CCTV Transmitter Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500101 Active CCTV Transmitter Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500101 Active CCTV Transmitter Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500101 Active CCTV Transmitter Balun (24VAC) allows a single CCTV video signal to be transmitted via a Cat5 UTP (Unshielded Twisted Pair) cable. Installed at the CCTV camera, the balun features manual gain compensation adjustment that enhances the brightness, sharpness and color intensity of the video signal, based on the actual cable conditions. The balun derives 24VAC power from the camera power supply and features surge protection on power input. When used in conjunction with passive CCTV baluns at the receiver, the transmission distance supported is up to 3000' (914m); it can be extended to 6000' (1828m) when an active balun is connected between the CCTV camera and a receiver such as a DVR, multiplexer, or video switcher. Made of ABS fire retardant plastic, the 500101 transmitter balun securely fits between the CCTV dome camera and the back box and has a ground loop isolation of up to ±5V between the input and output. Compatible with other MuxLab CCTV baluns, it can work in marginal cabling installations or installations that are ground loop sensitive. - Allows a single CCTV video signal to be transmitted via a Cat5 unshielded twisted pair (UTP) cable
- Transmits up to 3000' (914m); this distance can be extended up to 6000' (1828m) when connected between the CCTV camera and the DVR, multiplexer, or video switcher
- Fits between the CCTV dome camera and back box
- Made of ABS fire retardant plastic
- Low power consumption (24VAC)
- Surge protection on power input
- Derives power from camera power supply
- Manual gain compensation based on cable length
- Ground loop isolation between video input and output up to ±5V
- Suitable for marginal cabling installations and ground loop sensitive installations
- Cable strain relief - allows flexibility in the cable without stressing on the vulnerable point in the cord
- Operating temperature range: 32 - 122°F (0 - 50°C)
- Compatible with other MuxLab CCTV baluns (500009, 500023, 500015, 500130, and 500122)
UPC: 627699001011 In the Box MuxLab 500101 Active CCTV Transmitter Balun (24VAC) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500101 Active CCTV Transmitter Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500101 Specs | Video Format | NTSC, PAL, SECAM | | Application | CCTV cameras, DVR, IP camera encoders, monitors, switchers and multiplexers | | Transmission | Transparent to the user | | Bandwidth | DC to 8 MHz | | Maximum Input | 1.2Vp-p unbalanced | | Maximum Output | +/-5V balanced | | Gain | 100kHz: Variable from 2 - 7 dB
5MHz: Variable from 13 - 40 dB | | Return Loss | Greater than 15 dB @ 1MHz | | Ground Loop Isolation | Isolation between video input and output up to ± 5V | | Common Mode Rejection | 15 kHz: 60 dB typ
8 MHz: 40 dB typ | | Maximum Distance | Up to 3,000' (914 m) with passive balun (500009) at receiver
Up to 6,000' (1,828 m) with active balun (500015 or 500120) at receiver | | Gain Compensation Switches | Four (4) settings based on cable length
Factory setting: 750 - 1,500' (229 - 457 m) | | Cable | UTP:
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1,000' (305 m) at 1 MHz
BNC:
Impedance: 75 ohms at 1 MHz (RG59/U mini coax) | | Connectors | (reverse polarity sensitive)
BNC-M for video with 8" (203mm) mini coax lead
2-wire red/black cable lead for input power
Two (2) screw terminals for video twisted pair | | Impedance | Input: 75 ohms (BNC)
Output: 100 ohms (screw terminals) | | Power Requirements | Floating 24VAC @ 70mA RMS max.
Shares power with camera PSU. Connects to camera's power terminals. | | Compatibility | Compatible with MuxLab CCTV baluns 500009, 500023, 500015, 500130, 500122 | | Temperature | Operating: 32 - 122°F (0 - 50°C)
Storage: -4 ~ +185°F (-20 ~ +85°C)
Humidity: up to 95% | | Enclosure | ABS fire retardant plastic, black | | Dimensions | 1.3 x 0.62 x 0.62" (3.1 x 1.6 x 1.6cm) - plus 8" (20.3cm) mini coax lead | | Weight | 1 oz (28g) | | | | Package Weight | 0.01 lb | | Box Dimensions (LxWxH) | 9.5 x 5.5 x 0.25" |
