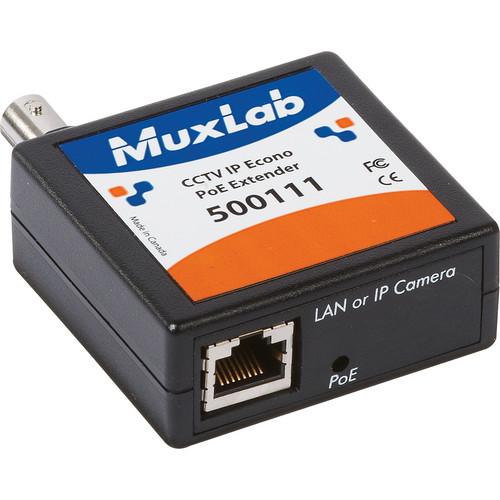

Product description The Muxlab 500111 CCTV IP Econo PoE Extender allows you to connect a single IP PoE camera to a LAN switch via a single 75-ohm coax cable. It supports signal transmission at a distance of up to 330’ (100 m) (14 W) at 100 Mbps, 1000’ (300 m) at 10 Mbps (14 W), and up to 1600’ (500 m) (7 W) at 10 Mbps. By consuming only 0.5 W of power from the PoE, this IP Econo Extender reduces the load on the PoE source or the switch. - Connects a single IP PoE camera to a 10/100BaseT PoE switch up to 1600' (500 m) via a single coax cable
- Used in pairs for transmission of camera signals in point-to-point configuration
- 0.5 W power consumption via PoE eliminates the need for an external PSU
- Compatible with most MuxLab mounting accessories
- Ideal for highways, airports, hotels, casinos, commercial complexes, remote parking lots, entry gates, hospitals, car dealerships, and prisons
UPC: 627699001110 In the Box MuxLab 500111 CCTV IP Econo PoE Extender 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500111 CCTV IP Econo PoE Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500111 Specs | Environment | PoE CCTV IP | | Devices | PoE CCTV IP cameras with a 10/100 Mbps Ethernet port, using up to 14 W | | Standards | Ethernet side: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IEEE 802.3af compatible PoE | | Distance vs Speed Between Units | 10 Mbps at 7 W: 1600' (500 m)
10 Mbps at 14 W: 1000' (300 m)
100 Mbps at 14 W: 330' (100 m) The maximum distance will vary depending on the coax cable. | | Cable Between Unit | Coax 75 ohm RG59/RG6 or better, (avoid CCS cable) | | Cable for Ethernet Port | Cat 5/5e/6 UTP, up to 10' (3 m) Cable not included | | Indicators | Power present | | Ethernet Connector | One RJ45S | | Connector | Connector to Connect the Two Units: BNC 75 ohms | | Power Consumption | 0.5 W from the PoE, no external supply required | | Temperature | Operating: 0 to 140° F (0 to 60° C)
Storage: 131 - 185° F (-55 to 85° C) | | Humidity | Up to 95% non-condensing | | Enclosure | Plastic | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.54 cm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.0 x 1.7 x 1.2" |
