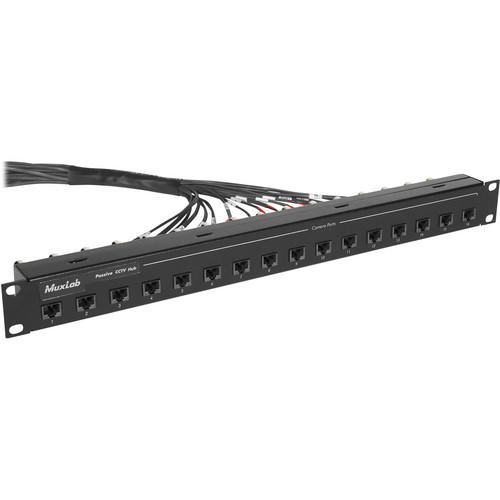

User Manual for MuxLab 500134 Passive CCTV Hub Plus Click to enlarge the picture
Contents of the user manual for the MuxLab 500134 Passive CCTV Hub Plus
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500134 Passive CCTV Hub Plus contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500134 Passive CCTV Hub Plus allows transmission of video, remote power and PTZ control using a Cat5E/6 cable, eliminating the need for multiple cables.
Integrated 16-channel 18/2 power cable assembly allows you to connect the hub to a 16-channel CCTV power supply, thus enabling ease of installation. The 1U rack-mountable, 16-port hub supports transmission of color signals up to 1200' (365m) via Cat3, which can be extended up to 2200' (670m) via Cat5E/6. For black and white signals, the maximum transmission distance is up to 1500' (457m) via Cat3 and can be extended up to 2500' (762m) via Cat5E/6.
Made of black anodized aluminum, the compact hub measures 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm), and features port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029). The Pass-Thru hub transmits remote power up to 350' (107m) via 2 twisted pair cables while the Power-Thru transmits up to 518' (170m) via 3 twisted pair cables at 24VAC. The 2-wire PTZ control transmits up to 4000' (1.2km) via one UTP cable.
Providing hassle-free cabling solution, the passive hub connects to the CCTV surveillance equipment that includes cameras, DVRs, video switchers, monitors, multiplexers, and other CCTV equipments.
- Allows transmission of video, remote power and PTZ control using a Cat5E/6 cable, eliminating the need for multiple cables
- Integrated 16-channel 18/2 power cable assembly allows you to connect the hub to a 16-channel CCTV power supply, thus enabling ease of installation
- Transmits color signals up to 1200' (365m) via Cat3; distance can be extended up to 2200' (670m) via Cat5E/6
- Transmits black and white signals up to 1500' (457m) via Cat3; distance can be extended up to 2500' (762m) via Cat5E/6
- Port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029)
- Transmits Pass-Thru remote power up to 350' (107m) via 2 UTP cables and Power-Thru remote power up to 518' (170m) via 3 UTP cables at 24VAC
- 2-wire PTZ control transmits up to 4000' via 1 UTP cable
- Pin configuration table on unit
- Made of black anodized aluminum
- Compact design - 19 x 1.75 x 1.5 " (48.26 x 4.4 x 5.1 cm)
- Connects to the CCTV surveillance equipment that includes cameras, DVRs, video switchers, monitors, multiplexers, and other CCTV equipments
UPC: 627699001349 In the Box MuxLab 500134 Passive CCTV Hub Plus Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500134 Passive CCTV Hub Plus in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500134 Specs | Environment | Composite video; NTSC, PAL, SECAM | | Devices | CCTV cameras, DVRs, monitors, switchers, multiplexers and other CCTV equipt | | Transmission | Transparent to the user | | | | Bandwidth | DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance Colour | Cat 3 -1,200' (365m); Cat5e/6 - 2,200' (670m) | | Maximum Distance Black & White | Cat 3 -1,500' (457m); Cat5e/6 - 2,500' (762m) | | | | Switch Mode | Pass-Thru Mode (500022)
Number of twisted pairs: 2
Max. Distance @ 24VAC:
5 VA: 350 ft (107m) 10 vA: 175 ft (53m)
20 VA: 90 ft (30m) 30 vA: 60 ft (20m)
Power-Thru Mode (500024/500029)
Number of twisted pairs: 3
Max. Distance @ 24VAC:
5 VA: 518 ft (170m) 10 VA: 259 ft (85 m)
20 VA: 130 ft (43 m) 30 VA: 86 ft (28 m) | | Maximum Input Voltage | 50 Volts (AC RMS/DC)
Recommended Class II PSU with fuse protection per port | | Maximum Current Rating | 4.5A (AC RMS/DC) | | | | Wiring | Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4,000 ft (1.2 km) depending on the PTZ camera vendor | | Maximum Power Rating | 50 Volts (AC RMS/DC); 3A (AC RMS/DC) | | | | Cable - UTP | 24 AWG or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz | | Cable - Coax | Impedance: 75 Ω at 1 MHz. (RG59/U)
Max. 25 ft. of coax allowed end to end | | Connectors | Video: 16 BNC-F Power: 16 2-pole terminals. Control: 16 2-pole terminals. Includes 16-channel 24" (61cm) 18AWG/2-wire power cable assembly terminated on 4-pole screw terminal blocks (Packaged separately)
Terminal blocks mate with hub
Combined signals: 16 RJ45 jacks | | Port Configuration Switch | Sets each port as Pass-Thru (500022) or as Power-Thru (500024/500029) | | Temperature | Operating: 0° to 55°C
Storage:-20° to 85°C
Humidity: up to 95% | | Enclosure | Black, anodized aluminum | | Dimensions (W x H x D) | 19 x 1.75 x 1.5" (48.26 x 4.4 x 5.1 cm) | | Weight | 2.6 lb (1.2kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 21.0 x 5.0 x 4.5" |
