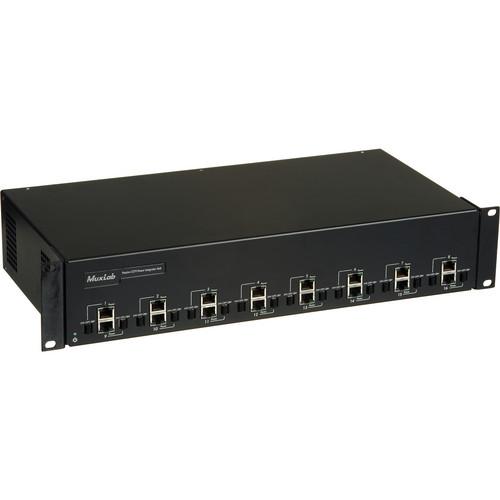

Product description The MuxLab 500136-USPassive CCTV Power Integrator Hub (US) allows transmission of video, remote power, and PTZ control using a Cat5E/6 cable between the CCTV camera and the DVR/IP encoder. It has a built-in 16-channel CCTV power supply (350VA) that supplies 24VAC to each camera. The hub is compatible with MuxLab’s 500000R, 500009, 500022, 500023, 500024, and 500029 CCTV baluns.
The 500136-USPower Integrator Hub provides auto-resettable fuses on each port, and has a 2U rack height. It features a port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029). The Pass-Thru port transmits remote power up to 350' (107m) via 2 twisted pair cables while the Power-Thru transmits up to 518' (170m) via 3 twisted pair cables at 24VAC. 2-wire PTZ control transmits up to 4000' (1.2km) via a single UTP cable. The hub is compatible with CCTV cameras, DVRs, IP encoders, monitors, switchers, and other CCTV equipments. - Allows transmission of video, remote power, and PTZ control using a Cat5E/6 cable between the CCTV camera and the DVR/IP encoder
- Built-in 16-channel CCTV PSU (350VA)
- Compatible with MuxLab's 500000R, 500009, 500130, 500022, 500023, 500024, and 500029 CCTV baluns
- Port configuration switch to set each port as Pass-Thru (500022) or Power-Thru mode (500024/500029)
- Transmits Pass-Thru remote power up to 350' (107m) via 2 UTP cables; Power-Thru remote power up to 518' (170m) via 3 UTP cables at 24VAC
- 2-wire PTZ control transmits up to 4000' via a single UTP cable
- Connects to the CCTV surveillance equipment that includes cameras, DVRs, switchers, monitors, and other CCTV equipments
UPC: 627699001363 In the Box MuxLab 500136-US Passive CCTV Power Integrator Hub (US) 5-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500136-US Passive CCTV Power Integrator Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500136-US Specs | | | Environment | Composite video; NTSC, PAL, SECAM | | Devices | CCTV cameras, DVRs, IP encoders, monitors, switchers and other CCTV equipment | | Transmission | Transparent to the user | | | | Bandwidth | DC to 8 MHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range | | Return Loss | Greater than 15 dB over the frequency range from 20Hz to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Cat 5e/6 - 2,200 ft (670m)
[Shorter distances will result with DVR equipment. Typically 1,000 to 1,500 ft (304.8 to 457.2 m)] | | | | Port Configuration Switch | Pass-Thru Mode (500022)
Number of twisted pairs: 2
Max. Distance @ 24VAC:
5 VA: 350 ft (107m) 10 vA: 175 ft (53m)
20 VA: 90 ft (30m) 30 vA: 60 ft (20m)
Power-Thru Mode (500024/500029)
Number of twisted pairs: 3
Max. Distance @ 24VAC:
5 VA: 518 ft (170m) 10 VA: 259 ft (85 m)
20 VA: 130 ft (43 m) 30 VA: 86 ft (28 m) | | Maximum Power Rating | 350VA, 60 Hz | | Voltage Selector Switch | Sets port to 24 VAC or "OFF" or 28 VAC. Factory default: "OFF" | | Maximum Input Voltage/Current | 500136-US: 120 Volts ac, 3.5 Amps, 60 Hz | | Max Output Voltage per port | 28Vac or 24Vac @ full load ; 31 Vac or 27 Vac @ no load | | Max Output Power per port | 22 VA @ 28 Vac or 16 VA @ 24 Vac | | Max Output Current per port | 0.78 A ac | | Fuses | Auto-Reset type, all ports individually protected, no service required | | LED Indicators | Master Power ON, green; 16 Ports Power On, green | | | | Wiring | Remote 2-wire PTZ control supported via one (1) twisted pair | | Maximum Distance | Up to 4,000 ft (1.2 km) depending on the PTZ camera vendor** | | Maximum Power Rating | 50 Volts (AC RMS/DC); 3A (AC RMS/DC) | | | | Cable - UTP | 24 AWG or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHzMaximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000 ft at 1 MHz | | Connectors | Video: Sixteen (16) BNC-F Control: Sixteen (16) 2-pole screw terminals
Combined signals: Sixteen (16) RJ45 jacks | | Temperature | Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: up to 95% | | Enclosure | Black, anodized aluminum | | Regulatory | FCC, cUL, CE | | Dimensions (W x H x D) | 19 x 3.5 x 9.0" (48.2 x 8.8 x 23 cm) | | Weight | 23 lb (11kg) |
