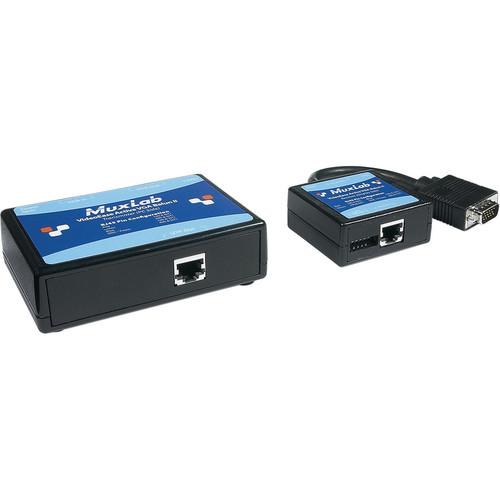

Product description Designed for use in digital signage, classroom, and boardroom applications, the 500140 Active VGA Balun II Kit from MuxLab is comprised of a transmitter, a receiver, and two power supplies. Once installed the kit transmits VGA or component video at distances of up to 600' using Cat 5e/6 cable. Furthermore, it supports up to 1920 x 1440 and 1080p resolutions for high-definition transmissions. The VGA balun also supports remote power pass-thru connectivity up to 150', and there is a local monitor output for additional flexibility. - 500142 Active VGA Balun II Receiver Designed for use in digital signage, classroom, and boardroom applications, the 500142 Active VGA Balun II Receiver from MuxLab transmits VGA or component video at distances of up to 600' using Cat 5e/6 cable. Furthermore, it supports up to 1920 x 1440 and 1080p resolutions for high-definition transmissions. The balun features manual gain compensation, allowing you to easily adjust the video signal's brightness, sharpness, and color intensity based on your cable conditions. The VGA balun also supports remote power pass-thru connectivity up to 150'. Providing a hassle-free cabling solution, this DDC compliant balun connects to a wide variety of equipment, including Pcs, Laptops, monitors, LCD monitors, plasma screens, and DLP projectors.
- Receives VGA or component video up to 600' in a point-to-point configuration using Cat 5e/6 UTP cable
- Supports up to 1920 x 1440 and 1080p resolution
- Manual gain compensation adjustment enhances the brightness, sharpness, and color intensity of the video signal
- Supports remote power pass-thru connectivity up to 150'
- Ground loop isolation from -2 VDC to +3 VDC
- DDC1/DDC2 (Plug-and-Play) compliant
- Constructed of ABS fire retardant plastic for durability
- Connects to a variety of equipment including PCs, laptops, monitors, LCD monitors, plasma screens, and DLP projectors
- Suitable for use with digital signage, residential, boardroom, classroom, and medical imaging video systems
UPC: 627699001424 - 500141 Active VGA Balun II Transmitter Designed for use in digital signage, classroom, and boardroom applications, the 500141 Active VGA Balun II Transmitter from MuxLab transmits VGA or component video at distances of up to 600' using Cat 5e/6 cable. Furthermore, it supports up to 1920 x 1440 and 1080p resolutions for high-definition transmissions. The balun features manual gain compensation, allowing you to easily adjust the video signal's brightness, sharpness, and color intensity based on your cable conditions. The VGA balun also supports remote power pass-thru connectivity up to 150', and there is a local monitor output for additional flexibility. Providing a hassle-free cabling solution, this DDC compliant balun connects to a wide variety of equipment, including Pcs, Laptops, monitors, LCD monitors, plasma screens, and DLP projectors.
- Transmits VGA or component video up to 600' in a point-to-point configuration using Cat 5e/6 UTP cable
- Supports up to 1920 x 1440 and 1080p resolution
- Manual gain compensation adjustment enhances the brightness, sharpness, and color intensity of the video signal
- Supports remote power pass-thru connectivity up to 150'
- Local monitor output for additional flexibility
- Ground loop isolation from -2 VDC to +3 VDC
- DDC1/DDC2 (Plug-and-Play) compliant
- Constructed of ABS fire retardant plastic for durability
- Connects to a variety of equipment including PCs, laptops, monitors, LCD monitors, plasma screens, and DLP projectors
- Suitable for use with digital signage, residential, boardroom, classroom, and medical imaging video systems
UPC: 627699001417 - 500144 Power Supply for Active VGA Balun II The 500144 Power Supply from MuxLab supplies 12 VDC, 0.5 A of power. It is designed for use with the company's 500141 or 500142 Active VGA Balun II. UPC: 627699001448
In the Box Bundle Items 500142 Active VGA Balun II Receiver cfaefqfctecfcqabvwabdreac 500141 Active VGA Balun II Transmitter 2 x 500144 Power Supply for Active VGA Balun II Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500140 Active VGA Balun II Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 500142 Active VGA Balun II Receiver
| Environment | VGA. VESA VP&D 1.0, VIP version 2.0. DDC1 and DDC2 | | Devices | PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Bandwidth | Up to 220 MHz (1920 x 1200 resolution), 1080p | | Input Impedance | HD15; 75 Ohms | | Output Impedance | Cat5: 100 Ohms | | Connectors | VGA/Component Input (Cat5E): RJ45 shielded
VGA/Component Output (Display): DB15HD-M | | Maximum Distance | Remote Power:
150' (46 m) (Tx Balun unpowered, Rx balun powered)
150' (46 m) (Tx Balun powered, Rx balun unpowered)
For VGA via Cat 5e/6:
640 x 480 (VGA): 1000' (305 m)
800 x 600 (SVGA): 1000' (305 m)
1024 x 768 (XGA): 1000' (305 m)
1280 x 1024 (SXGA): 850' (260 m)
1600 x 1200 (UXGA): 800' (245 m)
1366 x 768 (WXGA): 850' (260 m)
1680x1050 (WSXGA): 850' (260 m)
1920 x1200 (WUXGA): 600' (180 m)
For Component Video (YPbPr) via Cat 5e/6:
480i/p: 1,000' (305 m)
1080p: 600' (180 m)
1080i: 850' (260 m) | | RJ45 Pin Configuration | Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T) | | Gain Control | Gain control via brightness and sharpness potentiometers (Rev B) | | LED Indicators | Power: One (1) green LED | | Cable | Category 5 or better twisted pair cable
Transmitter requires additional VGA jumper cables (available separately) | | Ground Loop Isolation | Up to -2 VDC to +3 VDC between PC and display ground | | Power Supply | 110 to 240 VAC / 12 VDC / 0.5 A | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC/CE, RoHS | | Dimensions | 2.4 x 2.25 x 1.0" (6.1 x 5.5 x 2.5 cm) and 6.0" (15.2 cm) cable lead | | Weight | 2 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 1.1" | - 500141 Active VGA Balun II Transmitter
| Environment | VGA. VESA VP&D 1.0, VIP version 2.0. DDC1 and DDC2 | | Devices | PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Bandwidth | Up to 220 MHz (1920 x 1200 resolution), 1080p | | Input Impedance | HD15; 75 Ohms | | Output Impedance | Cat5: 100 Ohms | | Connectors | VGA/Component Input (PC): DB15HD-F
VGA/Component Output (Local Monitor): DB15HD-F
VGA/Component Output (Cat5E): RJ45 shielded | | Maximum Distance | Remote Power:
150' (46 m) (Tx Balun unpowered, Rx balun powered)
150' (46 m) (Tx Balun powered, Rx balun unpowered)
For VGA via Cat 5e/6:
640 x 480 (VGA): 1000' (305 m)
800 x 600 (SVGA): 1000' (305 m)
1024 x 768 (XGA): 1000' (305 m)
1280 x 1024 (SXGA): 850' (260 m)
1600 x 1200 (UXGA): 800' (245 m)
1366 x 768 (WXGA): 850' (260 m)
1680x1050 (WSXGA): 850' (260 m)
1920 x1200 (WUXGA): 600' (180 m)
For Component Video (YPbPr) via Cat 5e/6:
480i/p: 1,000' (305 m)
1080p: 600' (180 m)
1080i: 850' (260 m) | | RJ45 Pin Configuration | Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T) | | Gain Control | Gain control via brightness and sharpness potentiometers (Rev B) | | LED Indicators | Power: One (1) green LED
Sync: One (1) green LED | | Cable | Category 5 or better twisted pair cable
Transmitter requires additional VGA jumper cables (available separately) | | Ground Loop Isolation | Up to -2 VDC to +3 VDC between PC and display ground | | Power Supply | 110 to 240 VAC / 12 VDC / 0.5 A | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC/CE, RoHS | | Dimensions | 4.5 x 3.0 x 1.3" (11.4 x 7.6 x 3.2 cm) | | Weight | 2 lb (0.9 kg) | | | | Box Dimensions (LxWxH) | 7.6 x 7.0 x 3.7" | - 500144 Power Supply for Active VGA Balun II
| Compatibility | For Use With: MuxLab 500141 and 500142 baluns | | Power Input | 100 to 240 VAC | | Power Output | 12 VDC, 0.5 A | | | | Box Dimensions (LxWxH) | 4.6 x 3.3 x 2.3" |
