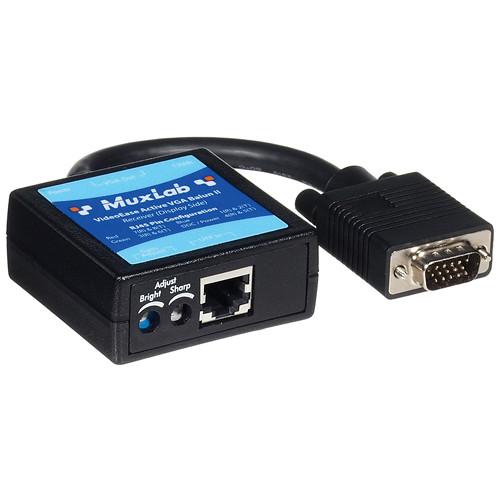

User Manual for MuxLab 500142 Active VGA Balun II Receiver Click to enlarge the picture
Contents of the user manual for the MuxLab 500142 Active VGA Balun II
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500142 Active VGA Balun II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description Designed for use in digital signage, classroom, and boardroom applications, the 500142 Active VGA Balun II Receiver from MuxLab transmits VGA or component video at distances of up to 600' using Cat 5e/6 cable. Furthermore, it supports up to 1920 x 1440 and 1080p resolutions for high-definition transmissions. The balun features manual gain compensation, allowing you to easily adjust the video signal's brightness, sharpness, and color intensity based on your cable conditions. The VGA balun also supports remote power pass-thru connectivity up to 150'. Providing a hassle-free cabling solution, this DDC compliant balun connects to a wide variety of equipment, including Pcs, Laptops, monitors, LCD monitors, plasma screens, and DLP projectors. - Receives VGA or component video up to 600' in a point-to-point configuration using Cat 5e/6 UTP cable
- Supports up to 1920 x 1440 and 1080p resolution
- Manual gain compensation adjustment enhances the brightness, sharpness, and color intensity of the video signal
- Supports remote power pass-thru connectivity up to 150'
- Ground loop isolation from -2 VDC to +3 VDC
- DDC1/DDC2 (Plug-and-Play) compliant
- Constructed of ABS fire retardant plastic for durability
- Connects to a variety of equipment including PCs, laptops, monitors, LCD monitors, plasma screens, and DLP projectors
- Suitable for use with digital signage, residential, boardroom, classroom, and medical imaging video systems
UPC: 627699001424 In the Box MuxLab 500142 Active VGA Balun II Receiver Limited 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500142 Active VGA Balun II Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500142 Specs | Environment | VGA. VESA VP&D 1.0, VIP version 2.0. DDC1 and DDC2 | | Devices | PCs, laptops, monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Bandwidth | Up to 220 MHz (1920 x 1200 resolution), 1080p | | Input Impedance | HD15; 75 Ohms | | Output Impedance | Cat5: 100 Ohms | | Connectors | VGA/Component Input (Cat5E): RJ45 shielded
VGA/Component Output (Display): DB15HD-M | | Maximum Distance | Remote Power:
150' (46 m) (Tx Balun unpowered, Rx balun powered)
150' (46 m) (Tx Balun powered, Rx balun unpowered)
For VGA via Cat 5e/6:
640 x 480 (VGA): 1000' (305 m)
800 x 600 (SVGA): 1000' (305 m)
1024 x 768 (XGA): 1000' (305 m)
1280 x 1024 (SXGA): 850' (260 m)
1600 x 1200 (UXGA): 800' (245 m)
1366 x 768 (WXGA): 850' (260 m)
1680x1050 (WSXGA): 850' (260 m)
1920 x1200 (WUXGA): 600' (180 m)
For Component Video (YPbPr) via Cat 5e/6:
480i/p: 1,000' (305 m)
1080p: 600' (180 m)
1080i: 850' (260 m) | | RJ45 Pin Configuration | Reverse Polarity Sensitive (Use EIA/TIA 568 A or B, straight through wiring)
Red: Pin 7 (R) Pin 8 (T)
Green: Pin 3 (R) Pin 6 (T)
Blue: Pin 1 (R) Pin 2 (T)
DDC/Remote Power: Pin 4 (R) Pin 5 (T) | | Gain Control | Gain control via brightness and sharpness potentiometers (Rev B) | | LED Indicators | Power: One (1) green LED | | Cable | Category 5 or better twisted pair cable
Transmitter requires additional VGA jumper cables (available separately) | | Ground Loop Isolation | Up to -2 VDC to +3 VDC between PC and display ground | | Power Supply | 110 to 240 VAC / 12 VDC / 0.5 A | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: Up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Regulatory | FCC/CE, RoHS | | Dimensions | 2.4 x 2.25 x 1.0" (6.1 x 5.5 x 2.5 cm) and 6.0" (15.2 cm) cable lead | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 0.35 lb | | Box Dimensions (LxWxH) | 8.7 x 5.3 x 1.1" |
