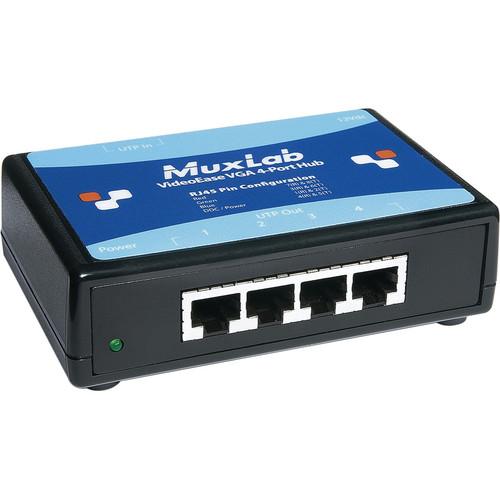

Product description The MuxLab 500151 VGA 1x4 Distribution Hub (220-240V) allows to distribute a VGA (RGBHV) source to up to 4 displays using Cat5/6 UTP cable.
Working in conjunction with the Active VGA Balun II Kit (500140) and Active VGA Balun II Receivers (500142), the unit supports a distance up to up to 600' (180m) at 1920x1200 (WUXGA) resolution. The DDC compliant switcher also supports remote power up to 150' (46m).
For supporting a source and a display, a minimum one 500140 is required, while up to 3 sources can be supported using 3 additional 500141 transmitters. Installed at the CCTV applications, the hub features gain compensation adjustment via DIP switches on receiver, which enhance the brightness and sharpness of the video signal. The unit offers ground loop isolation on every port that ranges from -2VDC to +3VDC and supports modular RJ45 on input and output.
The VGA 1x4 Distribution Hub is ideal for use with applications that include digital signage, boardroom systems, multi-room systems, classroom training, retail systems, electronic billboards, electronic signs, video kiosks, point-of-sale displays, and in-store video. - Allows to distribute a VGA (RGBHV) source to up to 4 displays using Cat5/6 UTP cable
- Works in conjunction with the Active VGA Balun II Kit (500140) and Active VGA Balun II Receivers (500142)
- Supports a distance up to up to 600' (180m) at 1920x1200 (WUXGA) resolution
- Supports remote power up to 150' (46m)
- Cascadable up to 4 levels
- Gain compensation adjustment via DIP switches on receiver - enhances the brightness and sharpness of the video signal
- Ground loop isolation on every port ranging from -2VDC to +3VDC
- Modular RJ45 on input and output
- ABS fire retardant plastic enclosure
In the Box MuxLab 500151 VGA 1x4 Distribution Hub (220-240V) 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500151 VGA 1x4 Distribution Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500151 Specs | Environment | VGA. VESA VP&D 1.0, VIP ver 2.0. DDC1 and DDC1 | | Devices | PCs, laptops, CRT monitors, LCD monitors, plasma screens, DLP projectors | | Transmission | Transparent to the user | | Bandwidth | Up to 280 MHz (1920 x 1440 resolution), 1080p | | Impedance | Coax: 75 ohms
UTP: 100 ohms | | Connectors | VGA Input (Cat5/6): One (1) RJ45 shielded
VGA Output (Cat5/6): Four (4) RJ45 shielded | | DDC | Transmits DDC control signals on RJ45 pins 4&5 for Plug-and-Play operation | | Remote Power | Transmits remote DC power on RJ45 pins 4&5 | | Maximum Distance | Remote Power
Source to Hub: 150 ft (46 m)
Hub to Display: 150 ft (46 m)
Between VGA source and Display
640 x 480 (VGA): 1000 ft (305m)
800 x 600 (SVGA): 1000 ft (305m)
1024 x 768 (XGA): 1000 ft (305m)
1280 x 1024 (SXGA): 850 ft (260m)
1600 x 1200 (UXGA):800 ft (245m)
1366 x 768 (WXGA):850 ft (260m)
1680x1050 (WSXGA):850 ft (260m)
1920x1200 (WUXGA): 600 ft (180m)
Component Video (YPbPr) via Cat 5 (or better) Twisted Pair
480i/p: 1,000 ft (305 m)
1080i: 850 ft (260 m)
1080p: 600 ft (180 m) | | Gain Compensation Switches | Gain control via DIP switches on receiver (factory default setting: all OFF) | | LED Indicators | Power: One (1) green LED
Sync: One (1) green LED per port | | Cable | Category 5/6 or better twisted pair cable | | Ground Loop Isolation | Ground loop isolation on every port, -2VDC to +3VDC between PC and display ground | | Power Supply | 220-240V/12VDC/1.25A
Detachable North American or Continental Europe AC power cord included
12VDC power jacks | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: up to 95% non-condensing | | Enclosure | Black. ABS fire retardant plastic | | Dimensions | 4.5 x 3.8 x 1.25" (11.4 x 9.7 x 3.2 cm) | | Weight | 2 lb (0.9 kg) | | Regulatory | FCC/CE, RoHS |
