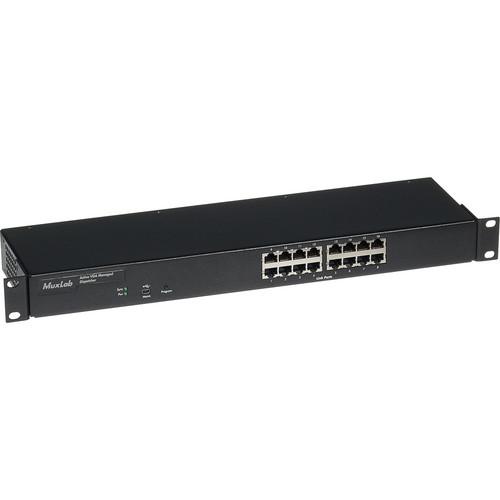

Product description The MuxLab 500171 Active VGA Managed Dispatcher Hub (16 Ports) is a cost-effective distribution system that duplicates a VGA signal along with stereo audio across 16 displays. Using CAT5e/6 cables, this Active VGA Hub allows you to install the display at a distance of up to 1000’ (305 m) from the source. In addition, an Active Repeater Hub can be used to further extend the transmission length.
Thanks to local VGA and audio output ports, you can keep an eye on the quality of the video being transmitted. The GUI software controls allow you to vary parameters such as the gain, skew, and sharpness of the video signal. It supports RS232 signaling and features a USB port that lets you manually perform maintenance operations. Typical applications of the Active VGA Managed Dispatcher Hub include digital signage, boardroom systems, multi-room systems, classroom training, electronic billboards, etc. - Transmits a VGA signal and stereo audio signal to 16 displays at a distance of up to 1000' (305 m)
- Transmission via CAT5e/6 UTP Cables
- Works with the Muxlab Active Managed Receiver (500174)
- Can be cascaded with the Active Repeater Hub (500172) to extend transmission distances
- Includes local VGA and audio output ports for monitoring and adjustments
- Allows transmission of RS232 signals
- Maintain a high-quality video output by changing parameters like gain, skew, and sharpness of the video signal
- Suitable for use in digital signage, boardroom and multi-room applications, classroom training, retail systems, electronic billboards, electronic signs, video kiosks, point-of-sale displays, in-store video applications, etc.
In the Box MuxLab 500171 Active VGA Managed Dispatcher Hub (16 Ports) VGA Male-to-Male Cable, 6' (1.5 m) for Video 3.5 mm Male-to-Male Cable, 6' (1.5 m) for Audio RS232 Male-to-Female Cable, 6' (1.5 m) for Control 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500171 Active VGA Managed Dispatcher Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500171 Specs | Environment | VGA, analog stereo audio, RS232 | | Devices | PCs, laptops, CRT monitors, LCD monitors, plasma screens, touchscreens | | Transmission | Transparent to the user | | Maximum Resolution | 1080p; 1920 x 1200 | | Connectors (Front Panel) | Maintenance: 1 mini USB
Link Ports: 16 RJ45S | | Connectors (Rear Panel) | Local In
RS232 In: 1 DB9F
Audio In: 1 3.5 mm stereo jack
VGA In: 1 HD15F
Local Out
RS232 Out: 1 DB9M
Audio Out: 1 3.5 mm stereo jack
VGA Out: 1 HD15F
Power: 1 power jack | | Maximum Distance | Up to 1920 x 1200 @ 60Hz; 1080P (depending on the cable length)
Up to 1000' (305 m) STP cables must be used in an electrically noisy environment. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used | | RJ45 Pin Configuration | | Red | Pin 7 (R) | Pin 8 (T) | | Blue | Pin 1 (R) | Pin 2 (T) | | Green | Pin 4 (R) | Pin 5 (T) | | COM | Pin 3 (R) | Pin 6 (T) |
Reverse Polarity Sensitive, use EIA/TIA 568 A or B, straight through wiring | | LED Indicators | Sync: 1 green LED
Power: 1 green LED | | Cable | Cat5e/6 or better unshielded twisted pair cable | | Power Supply | 110-240 V / 12 VDC / 1.25 A power jacks Removable AC blades included for North America, Continental Europe & UK | | Power Consumption | 8 W | | Compatible Products | 500172, 500174 | | Temperature | Operating: 32 to 104ºF (0 to 40ºC)
Storage: 14 to 158ºF (-10 to 70ºC)
Humidity: Up to 95% non-condensing | | Regulatory Approvals | FCC, CE-EMC Directive 89/336/EE, RoHS, WEEE | | Dimensions | 1U rack mountable
Enclosure: 17.15 x 4.69 x 1.72" (43.56 x 11.91 x 4.37 cm) | | Weight | 4.8 lb (2.2 kg) |
