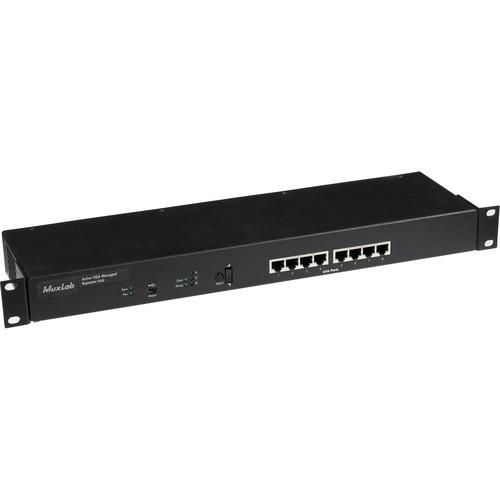

User Manual for MuxLab 500172 Active VGA Managed Repeater Hub Click to enlarge the picture
Contents of the user manual for the MuxLab 500172 Active VGA Managed Repeater
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500172 Active VGA Managed Repeater contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500172 Active VGA Managed Repeater Hub is designed to extend the transmission of a VGA signal with stereo audio across 8 displays. Using CAT 5e/6cables, this repeater allows you to expand the display network, making it suitable for digital signage applications.
The Managed Repeater Hub amplifies and equalizes the received VGA signal and achieves quality transmissions up to 1000’ (305 m). It supports RS232 signaling so you can adjust video signal parameters such as gain, skew, and sharpness. Thanks to a local VGA port, you can monitor the quality of the video being transmitted. Typical applications of the Active VGA Managed Repeated Hub include digital signage, boardroom and multi-room applications, classroom training, electronic billboards, etc. - Extends transmission of a VGA signal with stereo audio signal via UTP cables up to 1000' (305 m) away
- 8 output ports for further expanding the display network
- Amplifies and equalizes the received VGA signal for quality transmissions
- Local VGA output port for monitoring the signal on a local display
- Allows you to adjust the gain, skew, and sharpness of the video signal
- Supports transmission of RS232 signals
- USB port for manual maintenance operations
- Works with Active VGA Managed Dispatcher Hub (500170/171) and Active VGA Managed Receiver (500174)
- Suitable for use in digital signage, boardroom and multi-room applications, classroom training, retail systems, electronic billboards, electronic signs, video kiosks, point-of-sale displays, in-store video applications, etc.
In the Box MuxLab 500172 Active VGA Managed Repeater Hub 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500172 Active VGA Managed Repeater Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500172 Specs | Environment | VGA, analog stereo audio, RS232 | | Devices | PCs, laptops, CRT monitors, LCD monitors, plasma screens, touchscreens | | Transmission | Transparent to the user | | Maximum Resolution | 1080p; 1920 x 1200 | | Connectors (Front Panel) | Maintenance: 1 mini USB
Link Ports: 8 RJ45S | | Connectors (Rear Panel) | Local In
Link: 1 RJ45
Power: 1 power jack
Local Out
VGA: 1 HD15F | | Maximum Distance | Up to 1920 x 1200 @ 60Hz; 1080P (depending on the cable length)
Up to 1000' (305 m) STP cables must be used in an electrically noisy environment. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used | | RJ45 Pin Configuration | | Red | Pin 7 (R) | Pin 8 (T) | | Blue | Pin 1 (R) | Pin 2 (T) | | Green | Pin 4 (R) | Pin 5 (T) | | COM | Pin 3 (R) | Pin 6 (T) |
Reverse Polarity Sensitive, use EIA/TIA 568 A or B, straight through wiring | | LED Indicators | Sync: 1 green LED
Power: 1 green LED
Sharpness: 1 green LED
Gain: 1 green LED
R: 1 green LED
G: 1 green LED
B: 1 green LED | | Cable | Cat5e/6 or better unshielded twisted pair cable | | Power Supply | 110-240 V / 12 VDC / 1.25 A power jacks Removable AC blades included for North America, Continental Europe & UK | | Power Consumption | 15 W | | Compatible Products | 500170/171, 500174 | | Temperature | Operating: 32 to 104º F (0 to 40º C)
Storage: 14 to 158º F (-10 to 70º C)
Humidity: Up to 95% non-condensing | | Regulatory Approvals | FCC, CE-EMC Directive 89 / 336 / EE, RoHS, WEEE | | Dimensions | 1U rack mountable
Enclosure: 17.15 x 4.69 x 1.72 (43.56 x 11.91 x 4.37 cm) | | Weight | 3.8 lb (1.7 kg) |
