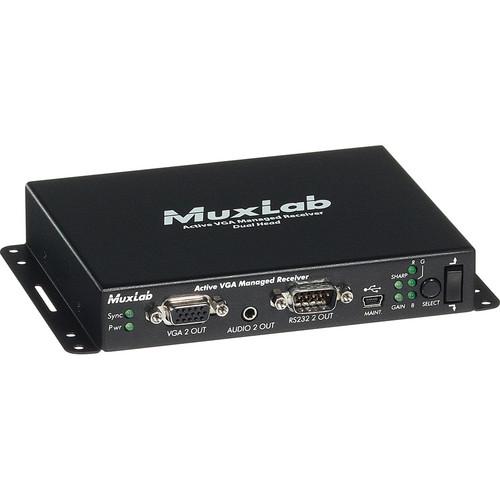

User Manual for MuxLab 500174 Active VGA Managed Receiver Click to enlarge the picture
Contents of the user manual for the MuxLab 500174 Active VGA Managed Receiver
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500174 Active VGA Managed Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500174 Active VGA Managed Receiver (Dual Head) has been designed to convert the signals received from the Active VGA Managed Dispatcher or Repeater Hubs to dual native VGA and stereo audio outputs. This device is capable of accepting full HD signals (1920 x 1200) sent over CAT5e/6 cables from up to 1000’ (305 m) away.
The GUI software controls allow you to vary parameters like the gain, skew, and sharpness of the video signal. It supports RS232 signaling and features a USB port that lets you manually perform maintenance operations. Using the built-in VESA mounting plate, the receiver can be easily attached to the rear of an LCD display for a neat installation. Typical applications of the Active VGA Managed Receiver include digital signage, residential, boardroom, classroom, medical imaging video systems, etc. - Converts CAT5e/6 signals to dual VGA and stereo audio outputs
- Accepts signals from up to 1000' (305 m) away
- Used with Active VGA Managed Dispatcher or Repeater Hubs
- GUI software lets you change parameters like gain, skew, and sharpness of the video signal
- USB port for local maintenance
- Built-in VESA 75/100 mm mounting flanges for quick and easy installation
- Suitable for use in digital signage, residential, boardroom, classroom, medical imaging video systems, etc.
UPC: 627699001745 In the Box MuxLab 500174 Active VGA Managed Receiver (Dual Head) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500174 Active VGA Managed Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500174 Specs | Environment | VGA, analog stereo audio, RS232 | | Devices | PCs, laptops, CRT monitors, LCD monitors, plasma screens, touchscreens | | Transmission | Transparent to the user | | Maximum Resolution | 1080p; 1920 x 1200 | | Connectors (Front Panel) | VGA 2 Out : 1 HD15F
Audio 2 Out : 1 3.5 mm stereo jack
RS232 2 Out: 1 DB9M
Maintenance: 1 Mini USB | | Connectors (Rear Panel) | Power : 1 power jack
VGA 1 Out : 1 HD15F
Link In : 1 RJ45S
RS232 1 Out : 1 DB9M
Audio 1 Out : 1 3.5 mm stereo jack
Cascade Out : 1 RJ45S | | Maximum Distance | Up to 1920 x 1200 @ 60Hz; 1080P (depending on the cable length)
Up to 1000' (305 m)
Dispatcher to receiver / Repeater Hub to receiver STP cables must be used in an electrically noisy environment. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. | | RJ45 Pin Configuration | | Red | Pin 7 (R) | Pin 8 (T) | | Blue | Pin 1 (R) | Pin 2 (T) | | Green | Pin 4 (R) | Pin 5 (T) | | COM | Pin 3 (R) | Pin 6 (T) |
Reverse Polarity Sensitive, use EIA/TIA 568 A or B, straight through wiring | | LED Indicators | Sync: 1 green LED
Power: 1 green LED
Sharpness: 1 green LED
Gain: 1 green LED
R: 1 green LED
G: 1 green LED
B: 1 green LED | | Cable | Cat5e/6 unshielded twisted pair (or better) | | Power Supply | 110-240 V / 12 VDC / 0.5 A power jacks Removable AC blades included for North America, Continental Europe & UK | | Power Consumption | 6 W | | Temperature | Operating: 32 to 104º F (0 to 40º C)
Storage: -4 to 185º F (-20 to 85º C)
Humidity: Up to 95% non-condensing | | Regulatory Approvals | FCC, CE-EMC Directive 89 / 336 / EE, RoHS, WEEE | | Dimensions | Hybrid VESA 75 mm and 100 mm mounting surface
Enclosure: 5.68 x 4.45 x 1.04" (14.42 x 11.30 x 2.64 cm) | | Weight | 2 lb (0.9 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 8.7 x 7.5 x 3.2" |
