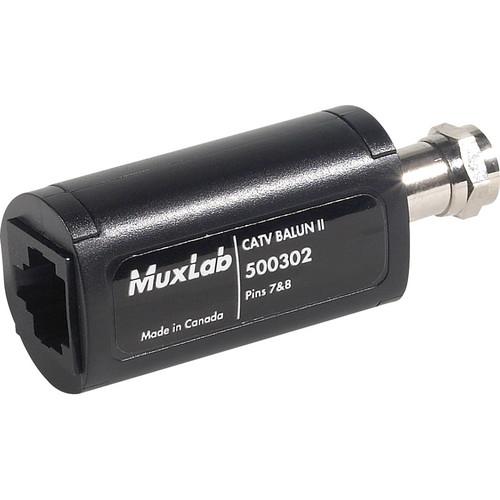

User Manual for MuxLab 500302 CATV Balun II Click to enlarge the picture
Contents of the user manual for the MuxLab 500302 CATV Balun II
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500302 CATV Balun II contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The 500302 CATV Balun II from MuxLab integrates terrestrial broadband video (bandwidth up to 900 MHz) by replacing traditional coax cabling with Cat5 UTP cables. Using Cat5 cables, the balun can transmit video signals at distances of up to 330', depending on the channel frequency and input power being used. Additionally, the balun is designed to be used in pairs, enabling you to easily move or add CATV equipment to any convenient modular wall outlet.Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the balun is ideal for use in schools, government offices, hospitals, financial institutions, hotels, and residential complexes. Constructed of ABS fire retardant plastic for strength and durability, this balun is designed for long-lasting use. Furthermore, it features low return loss for maximum power transfer with no line faults between the input and output. This balun can be used in conjunction with RF splitters, amplifiers, and cable modems for a comprehensive cabling solution. - Enables you to replace a 75 Ohm coax cable with a single pair of Cat5 UTP cable
- Transmits video signal up to 330', depending on channel frequency and input power
- Up to 900 MHz bandwidth for fast transmissions
- Suitable for use in private and public broadband, CATV, VHF, and FM networks
- Low return loss ensures maximum power transfer with no line faults
- Compact design and neat wiring for an organized and unobtrusive setup
- Made of ABS fire retardant plastic
- Suitable for use in schools, offices, hospitals, hotels, and residential condominiums
UPC: 627699003022 In the Box MuxLab 500302 CATV Balun II Limited Lifetime Warranty User Manual PDF 86.4kbxydwfycxfyrbsuazarbfst Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500302 CATV Balun II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab CATV Balun II Specs | Environment | Private and public broadband CATV, VHF, and FM networks | | Application | Terrestrial CATV, local channel amplified antennas, DVD players, RF modulators, splitters, cable modems, and other broadband video equipment. | | Transmission | Transparent to the user | | 3dB Bandwidth | 5 to 900 MHz | | Video Channels Supported | CATV 2 to 142
VHF channels 2 to 13
FM broadcast band | | Insertion Loss | < 10 dB: 5 to 10 MHz
< 4 dB: 600 to 725 MHz
< 3 dB: 10 to 600 MHz
< 3 dB: 725 to 900 MHz | | Return Loss | > 10 dB: 15 to 370 MHz
> 10 dB: 770 to 900 MHz
> 7 dB: 370 to 770 MHz | | Common Mode Rejection | -20 dB or higher at 5 to 900 MHz | | Cable Requirements | Cat5e/6 UTP
24-AWG or lower solid copper twisted pair
Impedance: 100 to 120 Ohms
Coax:
Impedance: 75 Ohms at 1 MHz (RG6) | | Connectors | Input: "F" connector (male)
Output: RJ45 (female)
RJ45 Pin Configuration: RJ45 Pins 7 & 8 | | Maximum Distance | Up to 330' (100 m) via Cat5 UTP depending on channel frequency and input power
Maximum 330' (100 m) at CATV Channel 2 (May require tilt amplifiers at higher frequencies) | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: 14 to 158°F (-10 to 70°C)
Humidity: up to 95% (non-condensing) | | Housing | ABS construction | | Approvals | FCC Part 15 Class A, CE | | Dimensions | Ø1 x 2.5" (Ø2.5 x 6.4cm) | | Weight | 1.1 oz (30 g) | | | | Package Weight | 0.085 lb | | Box Dimensions (LxWxH) | 7.15 x 5.95 x 0.9" |
