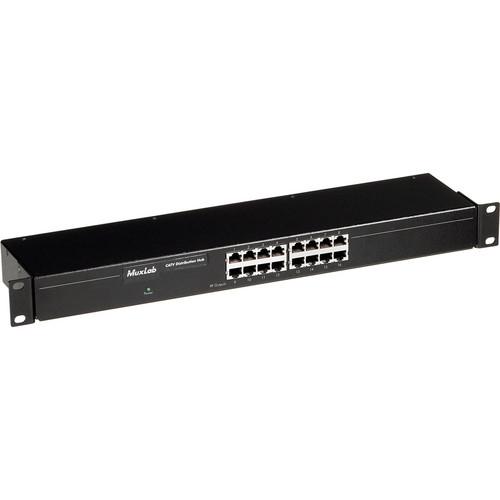

Product description The MuxLab 500303 CATV Distribution Hub (16 Ports, 110V) allows distribution of terrestrial broadband RF video (bandwidth up to 900 MHz) to several RF receivers via Cat5 UTP (Unshielded Twisted Pair) cables. Supporting broadband CATV, VHF, FM, broadband internet, and digital cable, the 16 ports hub is ideal for use in apartments, condominiums, hotels, offices, schools, hospitals, and trading floors. The hub features built-in gain amplification and port buffering and its RF amplifier enhances low power signals to ensure low insertion loss. Working in conjunction with MuxLab's passive CATV baluns (500006 and 500302) and other standard RF video equipment, the hub provides a complete cabling solution. Besides Cat5 being a cheaper alternative to coaxial cabling, the use of the hub also makes changes and additions easier. The 1U rack-mountable hub has a black anodized aluminum enclosure and includes a base unit, an external power supply, and a LED indicator. - 16 ports allow distribution of terrestrial broadband RF video to several RF receivers via Cat5 UTP
- Supports broadband (bandwidth up to 900 MHz) CATV, VHF, FM, broadband internet, and digital cable
- Features built-in RF amplifier, gain amplification and port buffering
- Works in conjunction with MuxLab's passive CATV baluns and other RF video equipment for a complete cabling solution / hassle-free wiring
- Allows use of Cat5 cables as an alternate to coaxial cables, making changes and additions easier
- Used in apartment, residential, condominiums, hotels, offices, schools, hospitals and trading floors
- Anodized aluminum enclosure
- 1U rack-mountable, compact design - 19 x 3.9 x 1.75" (48.3 x 9.9 x 4.4 cm)
- Includes a base unit, external power supply (12VDC), rubber stand-offs for desktop installation, and a LED power indicator
- Compatible with other MuxLab baluns (500006 and 500302)
- Meets FCC, CE, and RoHS regulatory standards
UPC: 627699003039 In the Box MuxLab 500303 CATV Distribution Hub (16 Ports, 110V) External Power Supply 12VDC/1.25 A Installation Guide 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500303 CATV Distribution Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500303 Specs | Application | Broadband CATV, VHF, FM, broadband Internet, digital cable
Set-top tuners, RF splitters, RF amplifiers, modulators, combiners, re-processors, cable modems | | Transmission | Transparent to the user | | Bandwidth | 3dB Bandwidth: 5 to 900 MHz | | Channel | Video Channels Supported: CATV 2-142, VHF channels 2-13, FM broadcast band. 5-42Hz return path for Internet | | Signal Gain | Signal Gain - Forward path (S21):
55-450 MHz: Tilt of -2.0 dB to 13.0 dB
450-900 MHz: 9.6 dB < S21 < 13.1 dB
Signal Gain - Reverse path (S12):
5-42 MHz: -6.7 dB < S12 < .4 dB | | Return Loss | >7 dB from 5 to 42MHz
> 10 dB from 55 to 900 MHz | | Common Mode Rejection | > 30 dB from 5 to 493 MHz
> 20 dB from 493 to 547 MHz
> 30 dB from 547 to 900 MHz | | Mounting | 1U Rack-mount | | Maximum Distance | Cat 5 UTP: Dependant on channel frequency, input power and receiver sensitivity. | | LED | Power: One (1) green LED | | Cable Requirements | Cable - UTP:
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305 m) at 1 MHz
Cable - "F":
Impedance: 75 ohms at 1 MHz (RG6) | | Connectors | RF Input: "F" connector
RF Outputs: Sixteen (16) RJ45S | | Compatibility | Compatible MuxLab Baluns: 500006 (550 MHz), 500302 (900 MHz) | | Power Requirements | 12VDC @ 400 mA | | Power Supply | Desktop 110-240V switching power supply
Input: 100-240V, ~0.5A Max, 50-60Hz
Output: +12V, 1.25A. Output Power: 15W Max. Detachable AC power cord | | Temperature | Operating: 32 - 104°F (0 - 40°C)
Storage: 14 ~ +158°F (-10 ~ +70°C)
Humidity: up to 95% (non-condensing) | | Enclosure | Black anodized aluminium | | Dimensions | 19 x 3.9 x 1.8" (48.3 x 9.9 x 4.4cm) | | Weight | 28.1 oz (817g) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 29.0 x 11.5 x 3.2" |
