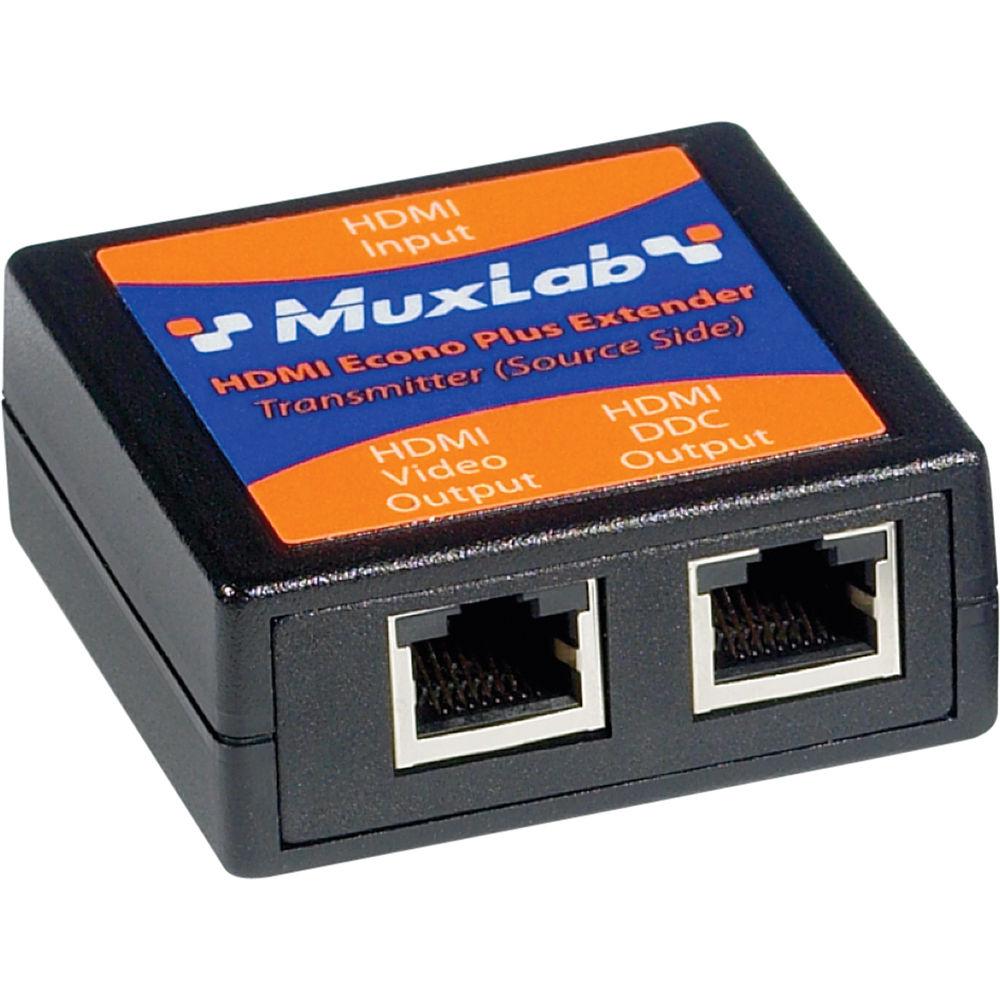

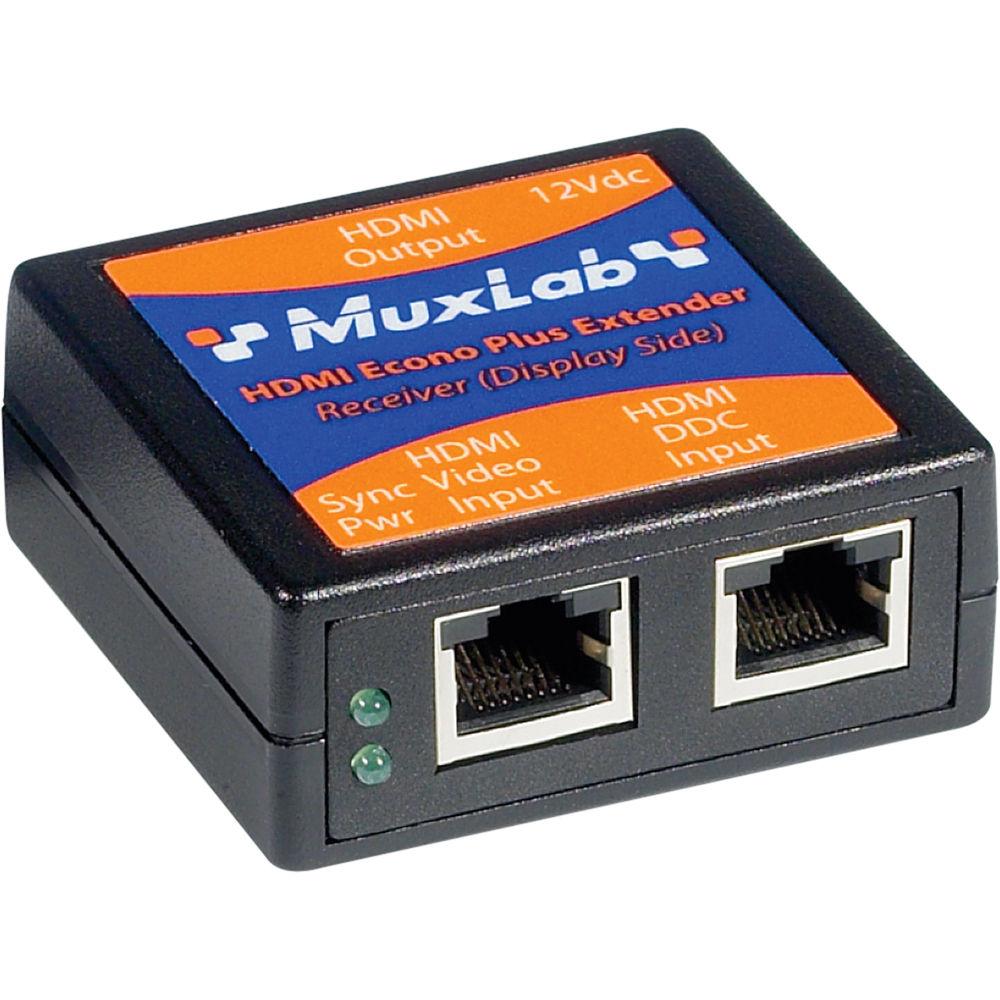

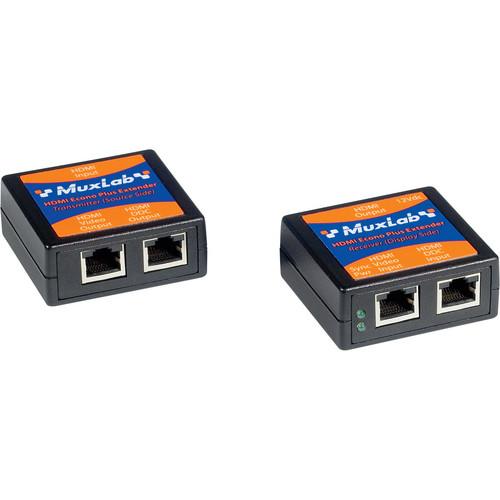

Product description The MuxLab 500401 HDMI Econo Plus Extender Kit allows HDMI equipment to be connected up to 150' (45m) via 2 Cat5E UTP (Unshielded Twisted Pair) cables; the distance can be extended up to 200' (60m) via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution. It also supports deep color up to 90' (27m) via Cat6 cable with 1080p 12-bit resolution. Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers. Made of ABS fire retardant plastic, the HDMI Econo Plus Extender Kit features a transmitter, a receiver, and a 110-240V/12VDC power supply with interchangeable blades. The unit includes hook and loop fastener pads for mounting, and is compatible with MuxLab mounting accessories.The extender kit is ideal for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems. - Allows HDMI equipment to be connected up to 150' via 2 Cat5E UTP cables; the distance can be extended up to 200' via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution
- Supports deep color up to 90' via Cat6 cable with 1080p 12-bit resolution
- Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers
- Features a transmitter, a receiver, and a 110-240V/12VDC power supply
- Includes hook and loop pads for mounting
- Made of ABS fire retardant plastic
- Can be used with MuxLab mounting accessories
- Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699004012 In the Box MuxLab 500401 HDMI Econo Plus Extender Kit Power Supply Hook and Loop Fastener for Mounting 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500401 HDMI Econo Plus Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500401 Specs | Environment | HDMI and DVI-D | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Bandwidth | 225 MHz | | Standard | HDMI 1.3a | | Connectors | HDMI receptacle
Two (2) RJ45S for Cat5e/6 unshielded or shielded twisted pair | | Maximum Distance | 480i/p: Cat5e: 300' (90 m) / Cat6: 300' (90 m)
720p, 1080i: Cat5e: 200' (60 m) / Cat6: 250' (76 m)
1080p 8-bit: Cat5e: 150' (45 m) / Cat6: 200' (60 m)
1080p 12-bit Deep Color: not specified / Cat6: 90' (27 m)
When installed in an electrically noisy environment, STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. Patch panels are not recommeneded with 1080p Deep Color. Based on a maximum length of 6.6' (2m) of HDMI cable per end | | Cable | Two (2) Category 5e or better twisted pair cables required | | Enclosure | ABS fire retardant plastic | | Mounting | Hook and loop pads included | | Compliance | Regulatory: FCC Class A, CE, RoHS
Flammability: 94V0 | | Power Supply | One (1) 110 - 240V/12VDC power supply with interchangeable blades included | | Power Consumption | 3W | | Operating Temperature | 32 - 131°F (0 - 55°C) | | Humidity | Up to 95% non-condensing | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.5 x 2.5cm) | | Weight | 10.9 oz (309g) | | | | Package Weight | 0.55 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.3" |
