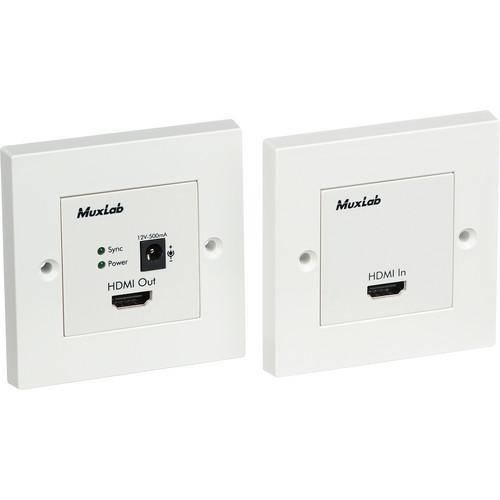

Product description The MuxLab 500401-WP-UK HDMI Econo Plus Wall Plate Extender Kit (UK) allows HDMI equipment to be connected up to 150' (45m) via 2 Cat5E UTP (Unshielded Twisted Pair) cables; the distance can be extended up to 200' (60m) via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution. It also supports deep color up to 90' (27m) via Cat6 cable with 1080p 12-bit resolution.
Made of ABS fire retardant plastic, the HDMI Econo Plus Wall Plate Extender Kit features a transmitter, a receiver, and a 110-240V/12VDC power supply with interchangeable blades. The unit includes adhesive pads for mounting, and is compatible with MuxLab mounting accessories. It is compatible with 3.3 x 3.3" (86 x 86mm) back boxes and 1.9 x 1.9" (50 x 50mm) faceplate openings.
Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers. The extender kit is ideal for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems. - Allows HDMI equipment to be connected up to 150' (45m) via 2 Cat5E UTP cables; the distance can be extended up to 200' (60m) via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution
- Supports deep color up to 90' (27m) via Cat6 cable with 1080p 12-bit resolution
- Features a transmitter, a receiver, and a 110-240V/12VDC power supply
- Can operate without external power
- Includes adhesive pads for mounting
- Made of ABS fire retardant plastic
- Can be used with MuxLab mounting accessories
- Compatible with 3.3 x 3.3" (86 x 86 mm) back boxes and 1.9 x 1.9" (50 x 50 mm) faceplate openings
- Suitable for use with MuxLab 500401
- Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers
- Ideal for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
- Meets FCC Class A, CE, and RoHS regulatory standards
UPC: 627699914014 In the Box MuxLab 500401-WP-UK HDMI Econo Plus Wall Plate Extender Kit (UK) Transmitter Receiver Adhesive Pads Power Supply 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500401-WP-UK HDMI Econo Plus Wall Plate Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500401-WP-UK Specs | Environment | HDMI 1.3a | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI
Compatible with MuxLab p/n 500401 | | Transmission | Transparent to the user | | Bandwidth | 225MHz | | Signals | HDMI 1.3a protocol | | Connectors | HDMI receptacle.
Two (2) RJ45S for Cat5 unshielded or shielded twisted pair
(HDMI cables not included) | | Power Switch | Switch on rear panel to select between Power or No-Power
Factory setting - Power | | Maximum Distance | 480i/p: Cat5e - 300' (90 m) / Cat6 - 300' (90 m)
720p, 1080i: Cat5e - 200' (60 m) / Cat6: 250' (76 m)
1080p 8-bit: Cat5e - 50' (45 m) / Cat6: 200' (60 m)
1080p 12-bit Deep Color: Cat6: 90' (27 m)
"No Power" Mode: Cat5e: 100' (30 m) / Cat6: 100' (30 m) | | Cable | Two (2) Category 5e or better twisted pair cables | | Power Supply | One (1) 110-240V/12VDC power supply with interchangeable blades | | Power Consumption | 3W | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95% non-condensing | | Enclosure | ABS fire retardant plastic | | Dimensions | 3.4 x 3.4 x 1.4" (86 x 86 x 36 mm)
Choose 1.6" (40mm) deep back box to allow for Cat 5E/6 wiring connection | | Mounting | Adhesive pads included | | Weight | 1.6 lb (0.7 kg) | | Compliance | Regulatory - FCC, CE, RoHS, Decora faceplate
Flammability - 94V0 | | | | Package Weight | 0.85 lb | | Box Dimensions (LxWxH) | 10.9 x 3.6 x 2.4" |
