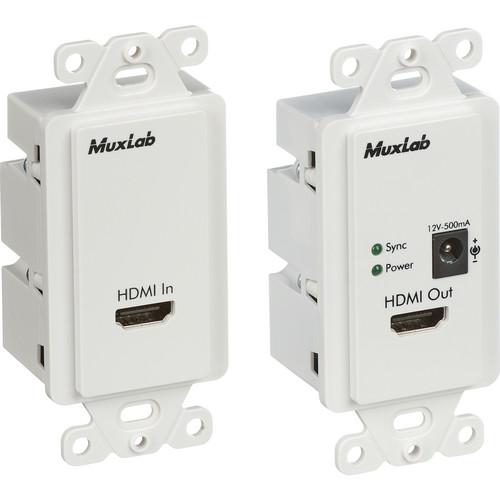

User Manual for MuxLab 500401-WP-US HDMI Econo Plus Wall Plate Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab 500401-WP-US HDMI Econo Plus Wall
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500401-WP-US HDMI Econo Plus Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500401-WP-US HDMI Econo Plus Wall Plate Extender Kit (US) allows HDMI equipment to be connected up to 150' (45m) via 2 Cat5E UTP (Unshielded Twisted Pair) cables; the distance can be extended up to 200' (60m) via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution. It also supports deep color up to 90' (27m) via Cat6 cable with 1080p 12-bit resolution.
Made of ABS fire retardant plastic, the HDMI Econo Plus Wall Plate Extender Kit features a transmitter, a receiver, and a 110-240V/12VDC power supply with interchangeable blades. The Decora compatible extender kit includes hook & loop pads for mounting, and is compatible with MuxLab mounting accessories.
Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers. The extender kit is ideal for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems. - Allows HDMI equipment to be connected up to 150' (45m) via 2 Cat5E UTP cables; the distance can be extended up to 200' (60m) via 2 Cat6 in a point-to-point configuration at 1080p 8-bit resolution
- Supports deep color up to 90' (27m) via Cat6 cable with 1080p 12-bit resolution
- Features a transmitter, a receiver, and a 110-240V/12VDC power supply
- Can operate without external power
- Includes hook & loop pads for mounting
- Made of ABS fire retardant plastic
- Can be used with MuxLab mounting accessories
- Supported HDMI equipment includes DVD, plasma, projectors, monitors, TV, PC, laptops, and servers
- Ideal for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
- Meets FCC, CE, and RoHS regulatory standards
UPC: 627699924013 In the Box MuxLab 500401-WP-US HDMI Econo Plus Wall Plate Extender Kit (US) Transmitter Receiver Power Supply Installation Guide 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500401-WP-US HDMI Econo Plus Wall Plate Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500401-WP-US Specs | Environment | HDMI 1.3a | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Bandwidth | 225MHz | | Signals | HDMI 1.3a protocol | | Connectors | HDMI receptacle
Two (2) RJ45S for Cat5e/6 unshielded or shielded twisted pair
(HDMI cables not included) | | Power Switch | Switch on rear panel to select between Power or No-Power
Factory setting: Power | | Maximum Distance | 480i/p: Cat5e: 300 ft (90 m) / Cat6: 300 ft (90 m)
720p, 1080i: Cat5e: 200 ft (60 m) / Cat6: 250 ft (76 m)
1080p 8-bit: Cat5e: 150 ft (45 m) / Cat6: 200 ft (60 m)
1080p 12-bit Deep Color: Cat6: 90 ft (27 m)
“No Power” Mode: Cat5e: 100 ft (30m) / Cat6: 100 ft (30m) | | Cable | Two (2) Category 5e or better twisted pair cables required | | Power Supply | One (1) 110-240V/12VDC power supply with interchangeable blades | | Power Consumption | 3 W | | Temperature | Operating: 32 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C)
Humidity: up to 95% non-condensing | | Enclosure | ABS fire retardant plastic. Color: white, Finish: glossy | | Dimensions | 4.1 x 1.8 x 1.44" (104 x 45.7 x 36.6 mm) | | Weight | 1.6 lb (0.7 kg) | | Mounting | hook & loop pads included | | Regulatory | FCC, CE, RoHS, European Standard for 86 mm faceplate | | Flammability | 94V0 | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 10.9 x 3.6 x 2.3" |
