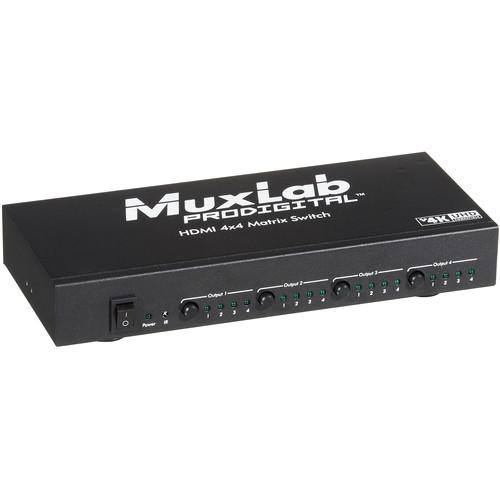

Product description The Muxlab 500440 UHD-4K 4 x 4 HDMI Matrix Switch connects four HDMI sources to four displays. This matrix provide four HDMI outputs and each HDMI output supports resolutions from 1080p Full HD to 4K plus all 3D formats and supporting independent EDID control. It works with Blu-ray players, set-top boxes, home theater systems, and game consoles that connect to an HDMI display. Any source is accessible at all times by any display by selecting it via the supplied IR remote control, RS-232, or by using the selection buttons on the front panel. - HDMI V1.4 connection that supports 4K x 2K @ 30 Hz, 1080p @ 120 Hz, and 1080p 3D @ 60 Hz
- Supports color depth of 48, 36, 30 and 24 bit
- Supports LPCM 7.1 channel, Dolby TrueHD and DTS-HD master audio
- Allows any source to be displayed on multiple displays at the same time
- Allows any HDMI display to view any HDMI source at any time
- Input ports support independent EDID
- Supports push button, IR, and RS232 control
- HDMI connectors with locking nuts
- Includes 5 IR sensors and 4 IR emitters with attached 60.6' cable
- Metal body with black finish
- Suitable for use in commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems

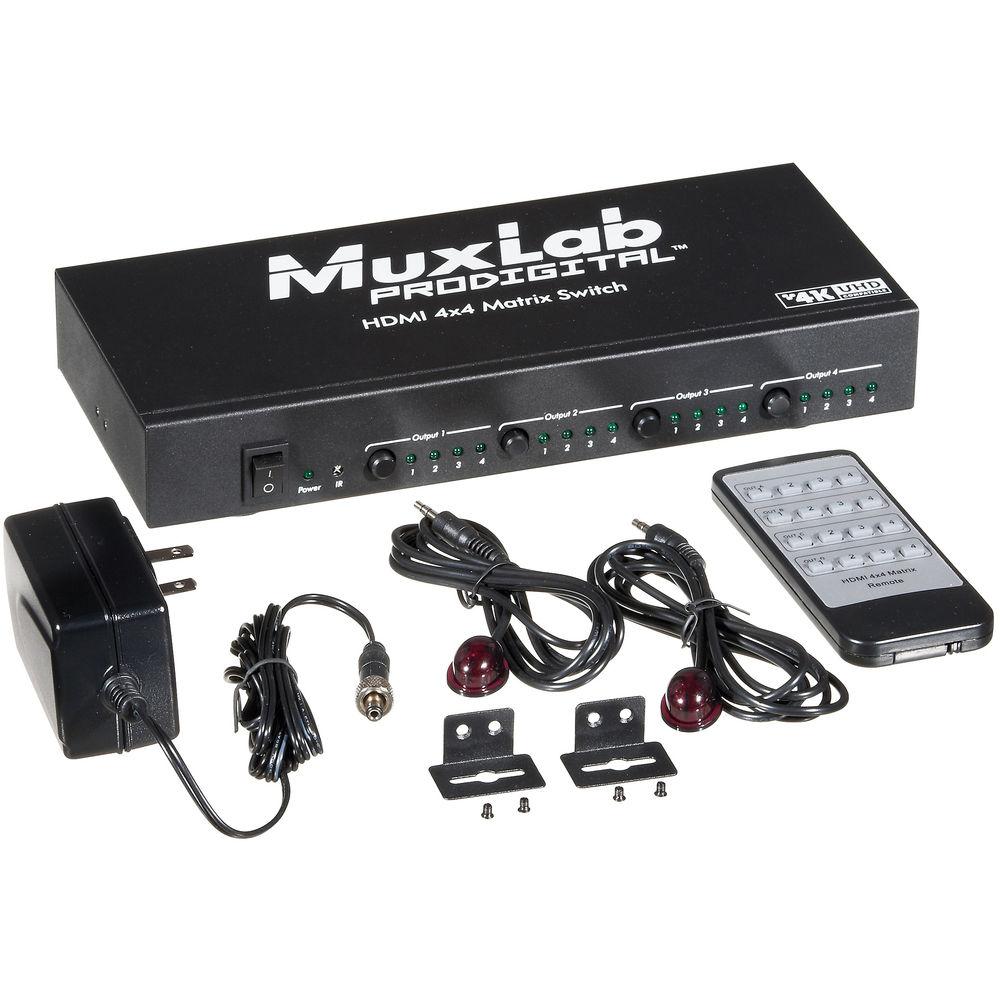

UPC: 627699004401 In the Box MuxLab 500440 UHD-4K 4 x 4 HDMI Matrix Switch 110 to 240VAC to 12VDC Power Supply with Interchangeable Blades 5 x IR Sensor 4 x IR Emitter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500440 UHD-4K 4 x 4 HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

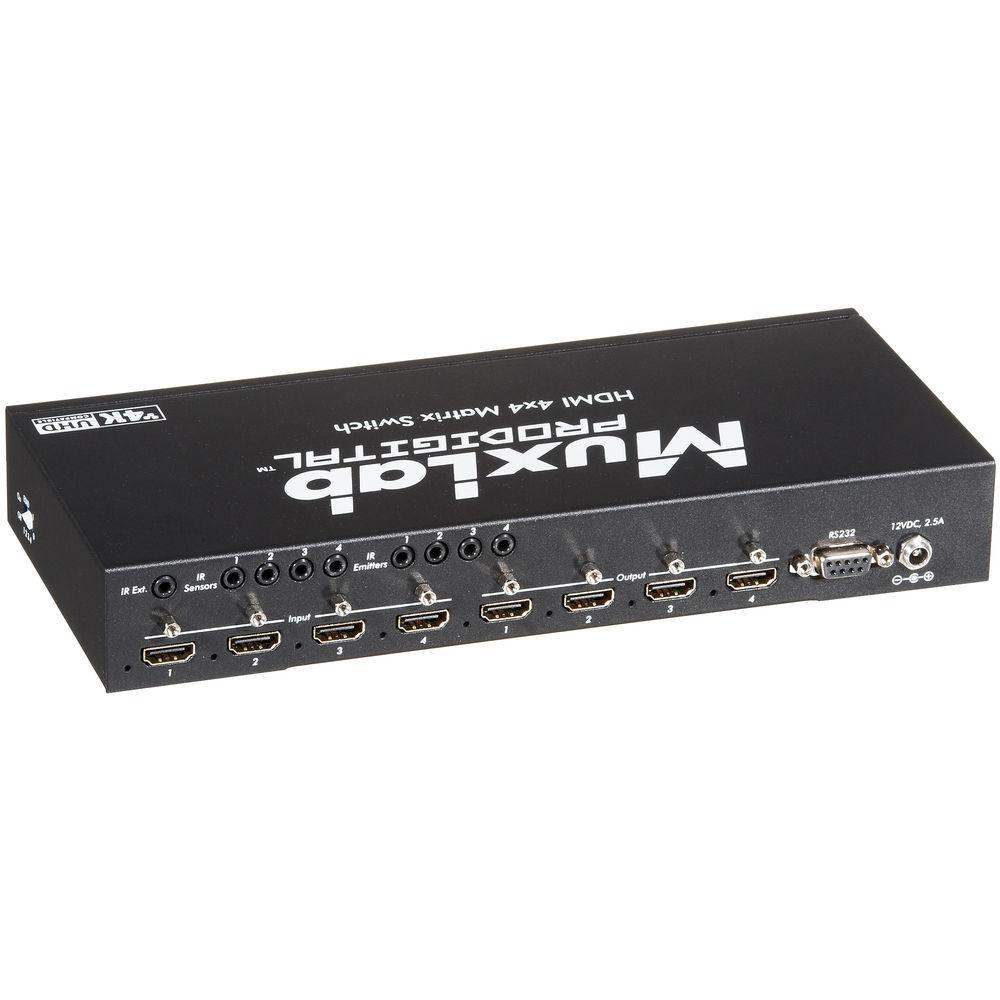

Technical parametersMuxLab 500440 Specs | Video Bandwidth | 297 MHz | | Supported Video Resolutions | 480i, 576i, 480p, 576p, 720p, 1080i, 1080p @ 24/30/50/60 Hz, 4 K @ 30 Hz, 1080p 3D @ 60 Hz | | Input Ports | 4 x HDMI Receptacle
1 x RS-232, 5 x IR Sensor 3.5 mm Jack | | Output Ports | 4 x HDMI Receptacle
4 x IR Emitter 3.5 mm Jack | | ESD Protection | Human-body Model: ±8 kV (Air-gap discharge), ±4 kV (Contact discharge) | | Power Supply | 110 to 240 VAC to 12 VDC / 2.5 A power supply with interchangeable blades (included) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Relative Humidity | 20 to 90% RH (non-condensing) | | Compliance | Regulatory: FCC, CE, RoHS | | Dimensions | 10.6 x 4.5 x 1.8" (27.0 x 11.5 x 4.5 cm) | | Weight | 3.2 lb (1.45 kg) | | | | Package Weight | 3.9 lb | | Box Dimensions (LxWxH) | 11.9 x 9.37 x 2.5" |
