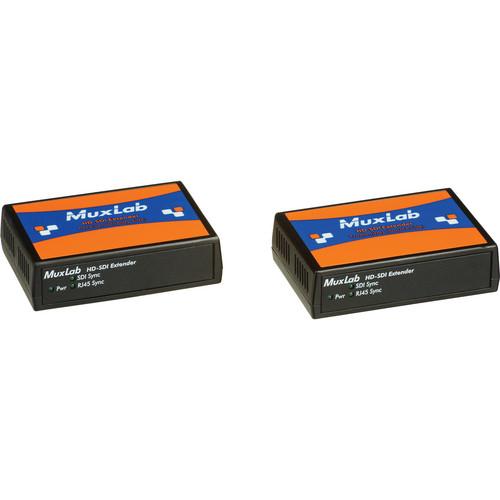

Product description Transmit HD-SDI video signals over Cat5e/6 cable using the 500700 HD-SDI Extender Kit from MuxLab. This kit is capable of transmitting up to 1920 x 1080 video resolution at a maximum distance of 400'. It supports up to 32 channels of embedded audio and/or embedded time code, and it can transmit uncompressed, unencrypted digital video at rates of up to 2.97/3.0 Gbps. The package also includes two power supplies with interchangeable blades for use in North America, Europe, and the UK. This kit is designed for professional video applications, including video production, broadcasting, live events, and mobile video. Note: This kit requires one Cat5e/6 twisted pair cable and two 75 Ohm coax cables with 75 Ohm BNC connections for full functionality. - Allows you to transmit HD-SDI signals via Cat 5e/6 cable
- Transmits resolutions up to 1080p at a maximum distance of 400'
- Supports up to 32 channels of embedded audio and/or embedded time code
- SDI-SMPTE 259M-C, HD-SDI-SMPTE 292M, HD-SDI-SMPTE 424M/425M standards supported
- Transmits up to 2.7/3.0 Gbps uncompressed, unencrypted digital video
- LED status light indicates syncing and SDI detection
- Suitable for use in video production, broadcasting, and live event applications
- Includes two power supplies with interchangeable blades for North America, Europe, and the UK
UPC: 627699007006 In the Box MuxLab 500700 HD-SDI Extender Kit (Transmitter/Receiver) 2 x Power Supplies Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500700 HD-SDI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500700 Specs | Environment | SDI Single Link: SD, HD, and 3G | | Devices | Monitors or any equipment supporting SDI single link | | Standards | SMPTE 259M (270 Mb/s), SMPTE 292M, and SMPTE 424M | | Bit Rates | 270 Mb/s, 1.485 Gb/s, and 2.97 Gb/s (automatic selection) | | Formats | SD:
525i, 59.94 Hz & 625i, 50 Hz
HD:
1035i, 60 Hz & 1080i, 50 Hz & 1080p, 30 Hz & 1080i, 60 Hz & 1080p, 25 Hz & 1080i, 50 Hz & 1080p, 24 Hz & 720p, 60 Hz
3G:
1080p, 4:2:2, 10b, 60Hz & 1080p, 4:2:2, 10b, 50Hz &
720p, 4:4:4:4, 10b, 60Hz & 720p, 4:4:4:4, 10b, 50Hz &
1080p, 4:4:4:4, 10b, 30Hz & 720p, 4:4:4:4, 10b, 30Hz &
1080p, 4:4:4:4, 10b, 25Hz & 720p, 4:4:4:4, 10b, 25Hz &
1080p, 4:4:4:4, 10b, 24Hz & 720p, 4:4:4:4, 10b, 24Hz &
1080i, 4:4:4:4, 10b, 30Hz & 1080i, 4:4:4:4, 10b, 25Hz &
1080p, 4:4:4, 12b, 30Hz & 1080p, 4:4:4, 12b, 25Hz &
1080p, 4:4:4, 12b, 24Hz & 1080i, 4:4:4, 12b, 30Hz &
1080i, 4:4:4, 12b, 25Hz & 1080p, 4:2:2, 12b, 30Hz &
1080p, 4:2:2, 12b, 25Hz & 1080i, 4:2:2, 12b, 30Hz &
1080i, 4:2:2, 12b, 25Hz
Only LEVEL A MAPPING is supported | | Indicators | Power SDI Sync RJ45 Link | | Connectors | 1 x BNC 75 Ohm female
1 x RJ45S for Cat5e/6 unshielded twisted pair
1 x Power connector (0.1" / 2.0 mm) | | Maximum Distance | UTP Cat5e: 330' (100 m)
UTP Cat6: 400' (122 m) | | RJ45 Pin Configuration | Pin 1 (R), Pin 2 (T)
Pin 3 (R), Pin 6 (T)
Pin 4 (R), Pin 5 (T)
Pin 7 (R), Pin 8 (T) | | Cables | 1 x Straight Cat 5e/6 twisted pair cables required
2 x 75 Ohm coax cables with 75 Ohm BNC required | | Power Supply | 2 x 100 to 240 VAC / 12 VDC / 15 W power supplies with interchangeable blades for NA, Europe, and UK | | Power Consumption | Transmitter: 4 W
Receiver: 8 W | | Operating Temperature | 0 to 104ºF (0 to 40ºC) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | 6061 aluminum alloy | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 4.5 x 3 x 1.25" (11.4 x 7.6 x 3.2 cm) | | Weight | 2.5 lb (1.1 kg) | | | | Package Weight | 2.56 lb | | Box Dimensions (LxWxH) | 12.3 x 6.9 x 4.2" |
