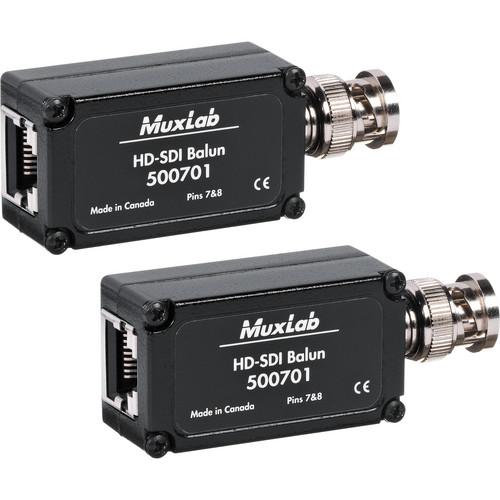

User Manual for MuxLab 500701 HD-SDI Balun Click to enlarge the picture
Contents of the user manual for the MuxLab 500701 HD-SDI Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab 500701 HD-SDI Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500701 HD-SDI Balun (Pack of 2) allows HD-SDI signals to be transmitted up to 150’ (45 m) via a CAT5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports uncompressed transmission of up to 2.97 / 3 Gbps and unencrypted digital video (optionally including embedded audio and / or time code) within television facilities and between professional video equipment. - Supports SD, HD, and 3G resolutions
- Up to 150' (45 m) via CAT5e cable @ HD
- Up to 400' (120 m) via CAT5e cable @ SD
- Cast aluminum enclosure for EMI / RFI shielding
- Applications include video production, broadcasting, HD camcorder, studio-to-studio, post production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, and medical imaging
UPC: 627699907016 In the Box MuxLab 500701 HD-SDI Balun (Pack of 2) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500701 HD-SDI Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500701-2PK Specs | Environment | SDI Single Link: SD, HD, & 3G | | Devices | Camcorders, video processors, monitors, projectors, scan converters, HD-CCTV cameras / DVR and any equipment supporting HD-SDI single link | | Standard | SD: SMPTE 259M (270 Mbps)
HD: SMPTE 292M
3G: SMPTE 424M | | Speed | 270 Mbps, and 1.485 & 2.97 Gbps (automatic selection) | | Insertion Loss | <6 dB: 5 to 1,500 MHz per balun | | Connectors | 1 x BNC 75 Ω male
1 x RJ45S for CAT5e/6 UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) | | Maximum Distance | CAT5e/6
SD:
Up to 375' (110 m) using CAT5 UTP
Up to 400' (120 m) using CAT5e UTP
Up to 500' (150 m) using CAT6 UTP
HD:
Up to 100' (30 m) using CAT5 UTP
Up to 150' (45 m) using CAT5e/6 UTP
3G:
Up to 50' (15 m) using CAT6 UTP Maximum distance is function of the receiving equipment equalizer. | | RJ45 Pin Configuration | RJ45 link
Pin 7 (reciever) and Pin 8 (transmitter) Use EIA / TIA 568A or 586B straight-through wiring. | | Cables | 1 x straight CAT5e/6 or better twisted pair cable required | | Temperature | Operating: 68 to 122°F (20 to 50°C)
Storage: -22 to 158°F (-30 to 70°C) | | Humidity | Up to 95% (non-condensing) | | Enclosure | Cast aluminum | | Regulatory | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions (L x H x W) | With Extended BNC Connector: 0.8 x 1.85 x 1.05" (2 x 2.6 x 4.7 cm) | | Weight | 1.5 oz (44 g) | | | | Package Weight | 0.3 lb | | Box Dimensions (LxWxH) | 5.5 x 4.6 x 0.9" |
