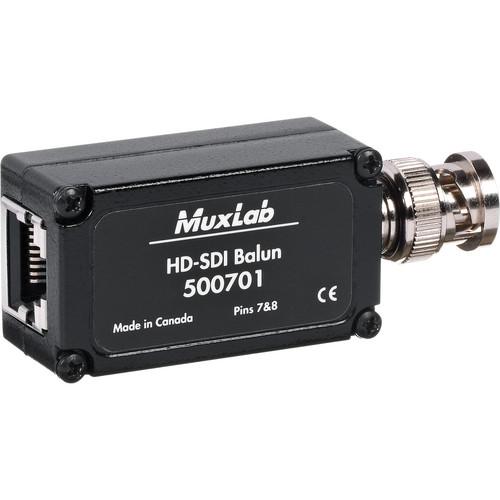

Product description The MuxLab 500701 HD-SDI Balun allows HD-SDI signals to be transmitted up to 150’ (45 m) via a CAT5e cable at HD resolution in a point-to-point configuration. The HD-SDI Balun supports uncompressed transmission of up to 2.97 / 3 Gbps and unencrypted digital video (optionally including embedded audio and / or time code) within television facilities and between professional video equipment. - Supports SD, HD, and 3G resolutions
- Up to 150' (45 m) via CAT5e cable @ HD
- Up to 400' (120 m) via CAT5e cable @ SD
- Cast aluminum enclosure for EMI / RFI shielding
- Applications include video production, broadcasting, HD camcorder, studio-to-studio, post production, live events, medical imaging displays, mobile video, HD/SD routing, HD-CCTV, and medical imaging
UPC: 627699007013 In the Box MuxLab 500701 HD-SDI Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500701 HD-SDI Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500701 Specs | Environment | SDI Single Link: SD, HD, & 3G | | Devices | Camcorders, video processors, monitors, projectors, scan converters, HD-CCTV cameras / DVR and any equipment supporting HD-SDI single link | | Standard | SD: SMPTE 259M (270 Mbps)
HD: SMPTE 292M
3G: SMPTE 424M | | Speed | 270 Mbps, and 1.485 & 2.97 Gbps (automatic selection) | | Insertion Loss | <6 dB: 5 to 1,500 MHz per balun | | Connectors | 1 x BNC 75 Ω male
1 x RJ45S for CAT5e/6 UTP (Unshielded Twisted Pair) or STP (Shielded Twisted Pair) | | Maximum Distance | CAT5e/6
SD:
Up to 375' (110 m) using CAT5 UTP
Up to 400' (120 m) using CAT5e UTP
Up to 500' (150 m) using CAT6 UTP
HD:
Up to 100' (30 m) using CAT5 UTP
Up to 150' (45 m) using CAT5e/6 UTP
3G:
Up to 50' (15 m) using CAT6 UTP Maximum distance is function of the receiving equipment equalizer. | | RJ45 Pin Configuration | RJ45 link
Pin 7 (reciever) and Pin 8 (transmitter) Use EIA / TIA 568A or 586B straight-through wiring. | | Cables | 1 x straight CAT5e/6 or better twisted pair cable required | | Temperature | Operating: 68 to 122°F (20 to 50°C)
Storage: -22 to 158°F (-30 to 70°C) | | Humidity | Up to 95% (non-condensing) | | Enclosure | Cast aluminum | | Regulatory | FCC, CE, RoHS | | Flammability | 94V0 | | Dimensions (L x H x W) | With Extended BNC Connector: 0.8 x 1.85 x 1.05" (2 x 2.6 x 4.7 cm) | | Weight | 1.5 oz (44 g) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 6.7 x 6.0 x 0.1" |
