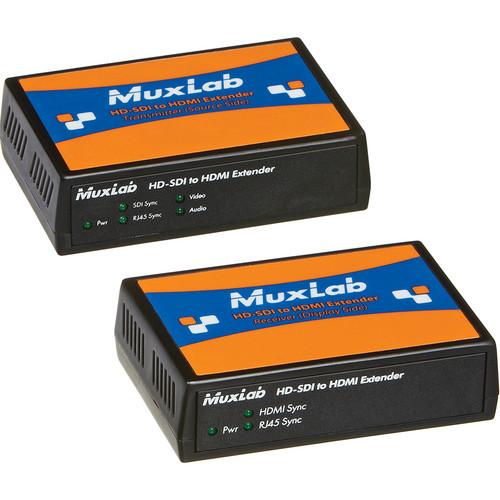

User Manual for MuxLab 500715 HD-SDI to HDMI Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab 500715 HD-SDI to HDMI Extender
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
 |
User manual for the MuxLab 500715 HD-SDI to HDMI Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description - HD-SDI to HDMI Extender Kit
The MuxLab Inc. 500715 HD-SDI to HDMI Extender Kit allows HD-SDI signals to be extended to an HDMI display to up to 330’ (100.5 m) using the CAT5e cable or up to 400’ (122 m) using the CAT6 cable. The extender kit supports 3G-SDI and is suitable for video production, broadcasting, camcorders, studio-to-studio and post-production applications, live events, medical imaging displays, mobile videos, HD / SD routing, and HD CCTV applications. - Extends up to 330' (100.5 m) via the CAT5e cable
- Extends up to 400' (122 m) via the CAT6 cable
- Supports: SDI-SMPTE 259M-C (270 Mbps), HD-SDI-SMPTE 292M (1.485, 1.485/1.001 Gbps), HD-SDISMPTE 424M / 425M (2.97/3.0 Gbps)
- LED diagnostics: sync, SDI detect

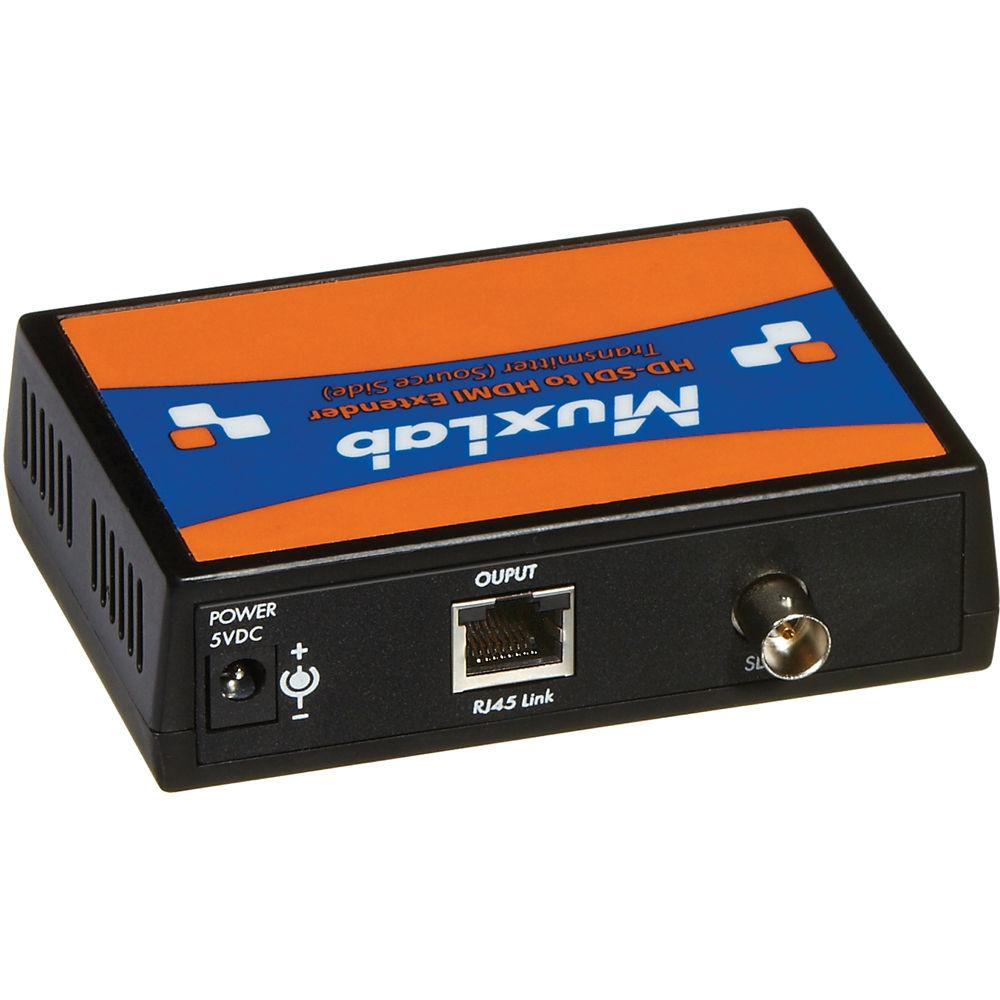

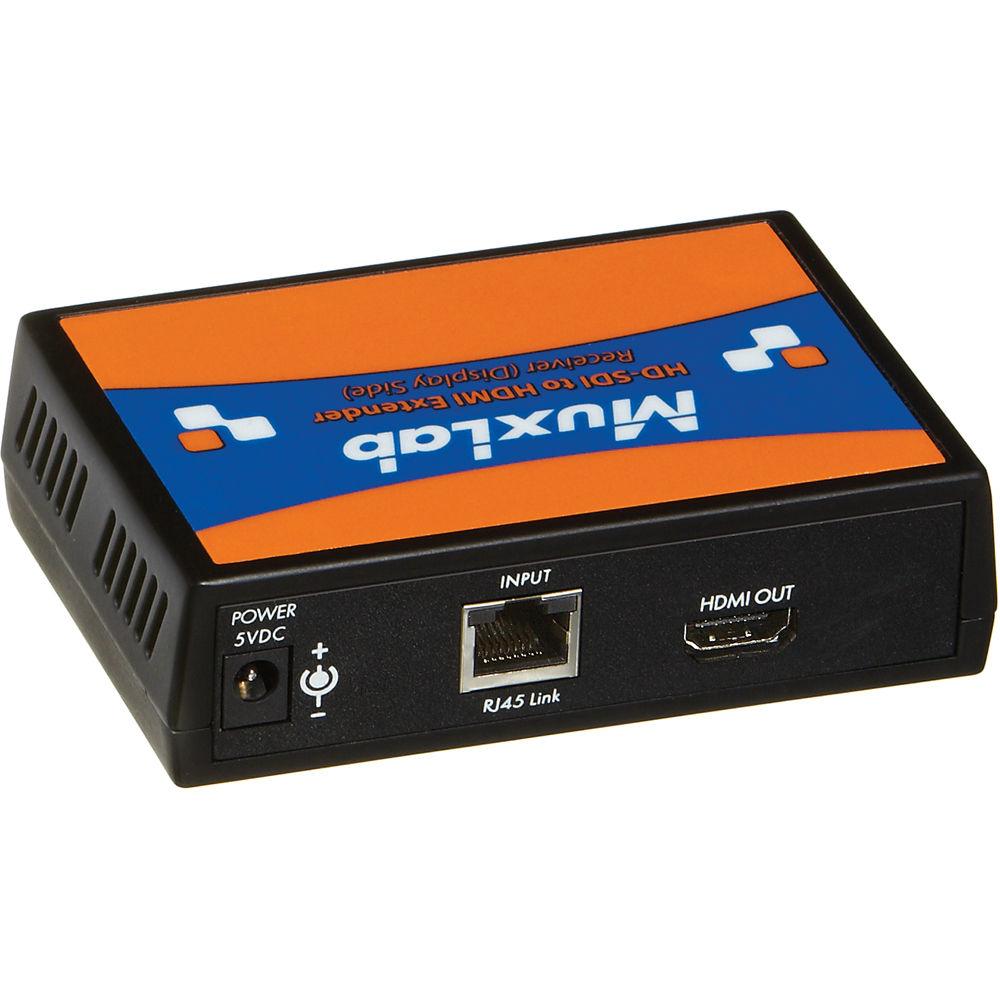

UPC: 627699007150 In the Box MuxLab 500715 HD-SDI to HDMI Extender Kit Transmitter (Source Side) Receiver (Display Side) 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500715 HD-SDI to HDMI Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500715 Specs | Dimensions (L x W x D) | 4.5 x 3 x 1.25" (11.43 x 7.62 x 3.18 cm) | | Weight | 32 oz (907.2 g) | | | | Package Weight | 2.05 lb | | Box Dimensions (LxWxH) | 8.5 x 7.0 x 3.1" |
