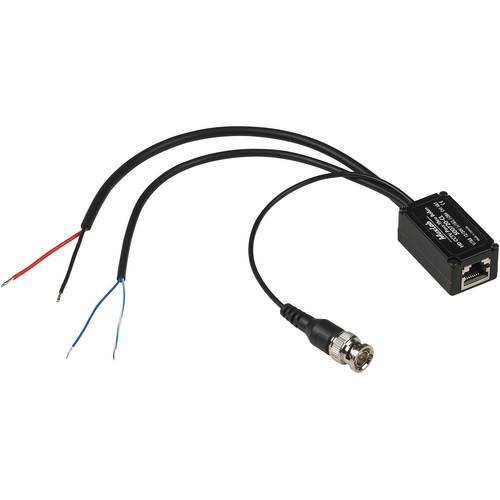

User Manual for MuxLab 500720-CL HD CCTV Pass-Thru Balun with Cable Leads Click to enlarge the picture
Contents of the user manual for the MuxLab 500720-CL HD CCTV Pass-Thru Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500720-CL HD CCTV Pass-Thru Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500720-CL HD CCTV Pass-Thru Balun with Cable Leads allows a single HD CCTV (HD-SDI) video channel along with remote power and PTZ control to be transmitted via a CAT5e or CAT6 cable (sold separately). The balun supports transmission of SDI digital video (including embedded audio and/or time code) between an HD CCTV camera and DVR at HD resolution (720p, 1080i) in a point-to-point configuration.
The 500720-CL Balun is used in conjunction with another 500720-CL, or a 500720 HD CCTV Pass-Thru Balun, and the 500721 Active HD CCTV Receiver Balun for greater distance. Common applications include campuses, highways, airports, hotels, casinos, commercial complexes, remote parking lots, self-storage, hospitals, and car dealerships. - HD-SDI video, power, and PTZ control over a single CAT5e/6 cable
- Supports SD, HD and 3G resolutions
- Works in pairs or with 500720 HD CCTV Pass-Thru Balun or 500721 Active HD CCTV
UPC: 627699907207 In the Box MuxLab 500720-CL HD CCTV Pass-Thru Balun with Cable Leads Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500720-CL HD CCTV Pass-Thru Balun with Cable Leads in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500454 Specs | Environment | HD CCTV; HD-SDI Single Link: SD, HD & 3G | | For Use with | CCTV cameras, monitors, DVR HD CCTV equipment, HD-SDI (up to 1080i) CCTV equipment that need to bring power and control using a single UTP cable | | Signal transmission | Signal: SDI (no analog)
Power: 12 VDC or 24 VAC, 2 A maximum
Control Signal: Any signal using a balanced pair, 1 A maximum | | Remote Power | Supports up to 20 VA / 2 A via 2 twisted pairs
Supports up to 30 VA / 2 A via 3 twisted pairs
Maximum Voltage: 28 V | | Compatible Baluns | 500720, other 500720-CL's, 500721 | | Standards | SD (270 Mb/s): SMPTE 259 M (480i, 576i)
HD (1.48 Gb/s): SMPTE 292 M (720p, 1080i)
3G (2.97 Gb/s): SMPTE 424 M (1080p) | | Speed | 270 Mb/s, 1.485 Gb/s & 2.97 Gb/s (automatic selection) | | Insertion Loss | <6 dB: 5 to 1,500 MHz (per balun) | | RJ45 Pin Configuration | Pin 7-8 for SDI signal
Pin 1+3, 2+6 for power (1 & 3 in parallel, 2 & 6 in parallel)
Pin 4-5 for control | | Maximum Distance | When Used with 500721:
SD: 500' (150 m) for CAT5e UTP, 500' (150 m) for CAT6 UTP
HD: 150' (45 m) using CAT5e UTP, 200' (60 m) for CAT6 UTP
3G: 50' (15 m) for CAT6 UTP only
When Used with Another 500720-CL or 500720:
SD: 400' (120 m) for CAT5e UTP, 500' (150 m) for CAT6 UTP
HD: 100' (30 m) using CAT5e UTP, 150' (45 m) for CAT6 UTP
3G: 65' (20 m) for CAT6 UTP only Maximum distance is a function of the receiving equipment. Dedicated CAT5e/6 cables are recommended with no patch panels. | | Cable | UTP:
24-Gauge or Lower Solid Copper Twisted Pair Wire Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 20 pF/ft
Attenuation: 6.6 dB/1,000' at 1 MHz Coax:
Impedance: 75 Ω at 1 MHz (RG59/U) | | Connectors | Video: BNC male, 75 Ω
Remote Power: 2-wire cable lead
PTZ Control: 2-wire cable lead
CAT5e/6 Link: RJ45S | | Temperature | Operating: -40 to 140°F (-40 to 60°C)
Storage: -40 to 185°F (-40 to 85°C) | | Humidity | Maximum 95% (non-condensing) | | Regulatory | FCC and CE | | Enclosure | Cast aluminum | | Dimensions | 0.8 x 1.9 x 1.1" (2.0 x 2.6 x 4.7 cm) excluding cables | | Weight | 2 oz (60 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 0.2" |
