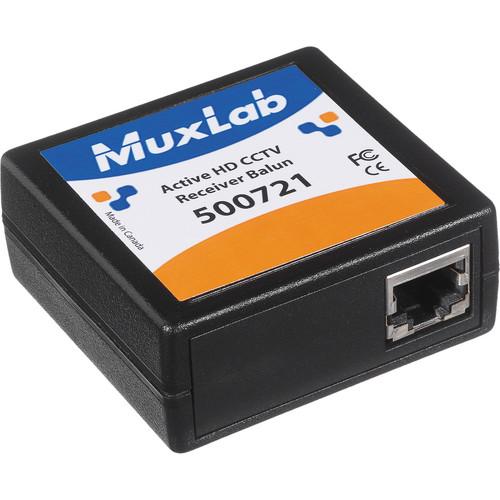

Product description The MuxLab 500721 Active HD CCTV Receiver Balun provides extended distance between an HD-SDI CCTV camera and an HD-SDI DVR via CAT5e/CAT6 cable (sold separately). It supports transmission up to 150’ (45m) via CAT5e cable and up to 200’ (60m) via CAT6 cable at HD resolution (720p, 1080i). The balun supports the transmission of SDI digital video signal (including embedded audio and/or time code) within facilities and between video equipment. It is installed at the receiver location and used in conjunction with the 500720 HD CCTV Pass-Thru Balun or 500720-CL HD CCTV Pass-Thru Balun with Cable Leads installed at the remote camera location.
Furthermore, the balun allows remote power and 2-wire PTZ control to be combined with HD-SDI video over the same CAT5e/CAT6 for optimized cabling. This receiver balun can be used at campuses, airports, hotels, casinos, commercial complexes, residential establishments, self-storage, hospitals, and car dealerships. - Used in conjunction with 500720 HD CCTV Pass-Thru Balun
- Supports HD CCTV (HD-SDI)
- Supports transmission up to 150' (45m) @ HD-SDI (720p, 1080i) via CAT5e cable
- Supports video, remote power, and control over a single CAT5e/CAT6
- LED indication for power and SDI sync
- Supports MuxLab mounting accessories (500900/902/910/915)
UPC: 627699007211 In the Box MuxLab 500721 Active HD CCTV Receiver Balun Wall-Mount Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500721 Active HD CCTV Receiver Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500721 Specs | Environment | HD CCTV, HD-SDI | | Devices | HD CCTV/HD-SDI cameras, monitors, DVRs and other HD-SDI (up to 1080i) CCTV equipment that need to bring power and control using a single UTP cable | | Compatible Transmitter | 500720, 500720-CL | | Mount Compatibility | 500902, 500900, 500910, 500915 | | Signal transmission | Signal: SDI (no analog signal)
Power: 12 VDC or 24 VAC, 2 A maximum
Control Signal: Any signal using a balanced pair, 60 V, 1 A maximum | | Remote Power | Supports up to 20 VA / 2 A via 2 twisted pairs
Supports up to 30 VA/ 2 A via 3 twisted pairs
Maximum Voltage: 28 V | | Maximum Distance via Cat5e/6 | SD: 500' (150 m) for CAT5e UTP, 500' (150 m) for CAT6 UTP
HD (720p, 1080I): 150' (45 m) using CAT5e UTP, 200' (60 m) for CAT6 UTP
3G (1080p): 65' (20 m) for CAT6 UTP only
Note: Maximum distance is affected by receiver equipment. Dedicated CAT5e/CAT6 cables are recommended with no patch panels. | | LED Indicators | One for power
One for SDI signal presence | | Cable Requirements | UTP
24 gauge or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 20 pF/ft
Attenuation: 6.6 dB/1,000' @ 1 MHz
Coax
Impedance: 75 Ω @ 1 MHz (RG59/U) | | Connectors | Video: BNC (female)
Remote Power: 2-pole screw terminal block
PTZ: 2-pole screw terminal block
CAT5e/CAT6 Link: RJ45S
Power connector | | RJ45 Pin Configuration | Pin 7-8 for SDI signal
Pin 1+3, 2+6 for power (1&3 in parallel, 2&6 in parallel)
Pin 4-5 for control | | Power Requirements | 12 VDC 90 mA, coming from the same power line as source
24 VAC 60 mA, coming from the same power line as source
5 V 130 mA using the external wall mount power supply included | | Temperature | Operating: -13 to 140°F (-25 to 60°C)
Storage: -40 to 185°F (-40 to 85°C)
Humidity: Maximum 95% (non-condensing) | | Enclosure | ABS UL94HB fire retardant plastic | | Regulatory | FCC and CE | | Dimensions | 2.4 x 2.2 x 1.0" (6.1 x 5.7 x 2.5 cm) | | Weight | 2 oz (70 g) | | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 4.724 x 3.386 x 2.284" |
