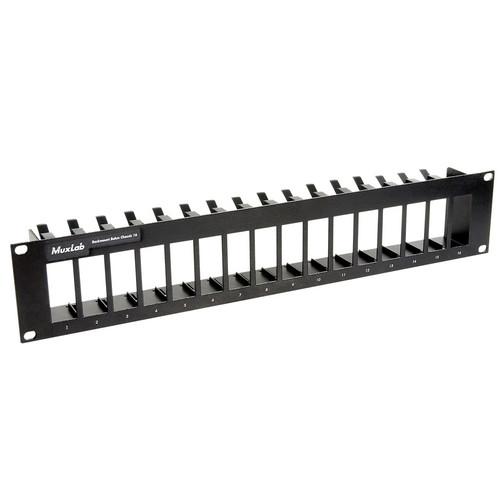

User Manual for MuxLab 500900 Rackmount Balun Chassis 16 Click to enlarge the picture
Contents of the user manual for the MuxLab 500900 Rackmount Balun Chassis 16
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500900 Rackmount Balun Chassis 16 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The Muxlab 500900 Rackmount Balun Chassis 16 is a 19” (48.26cm) relay rack that is designed to house any combination of up to 16 square baluns. Allowing you to place the baluns effortlessly facing front or rear with a snap-in design, the mount offers a secure and firm attachment with a spring latching mechanism. It employs a Cat5 structured cabling and provides a RJ45 connection with the baluns. Offering easy installation and maintenance with a 1 piece construction, the rack mount can be used with custom AV installations, head-end audio-video systems, home AV systems, boardroom systems, and digital signage systems. - Designed to house any combination of up to 16 square baluns
- Effortless placement of baluns facing front or rear
- Secure and firm attachment with a spring latching mechanism
- Employs a Cat5 structured cabling and provides a RJ45 connection with the baluns
- Easy installation and maintenance
- Used with custom AV installations, head-end audio-video systems, home AV systems, boardroom systems, and digital signage systems
UPC: 627699009000 In the Box MuxLab 500900 Rackmount Balun Chassis 16 4 x Rackmount Screws 4 x Washers Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500900 Rackmount Balun Chassis 16 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500900 Specs | Environment | Custom audio-video systems in a structured cabling environment | | Application | Head-end installations, audio-video rooms, telecom rooms | | Capacity | 16 positions | | Compatible Baluns | MuxLab baluns measuring: 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.5 cm) | | Orientation | Baluns may be installed front or rear facing | | Snap-in Mechanism | Baluns lock into position via spring latch mechanism | | Rack Height | 2U 3.5" (8.89cm) | | Enclosure | Black painted steel | | Mounting Holes | 4 rack mounting holes | | Mounting Hardware | 4 rack mounting 10-32 screws and washers | | Slot Id | Silkscreen on front and rear. Slots numbered "1" to "16" | | Dimensions (WxHxD) | 19 x 3.5 x 3.0" (48 x 8.9 x 7.6 cm) | | Weight | 1.9lb (.86kg) | | Standards | EIA/TIA | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 20.9 x 4.9 x 4.4" |
