User Manual for MuxLab 500910 Wall Mount Balun Fixture Click to enlarge the picture
Contents of the user manual for the MuxLab 500910 Wall Mount Balun Fixture
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500910 Wall Mount Balun Fixture contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

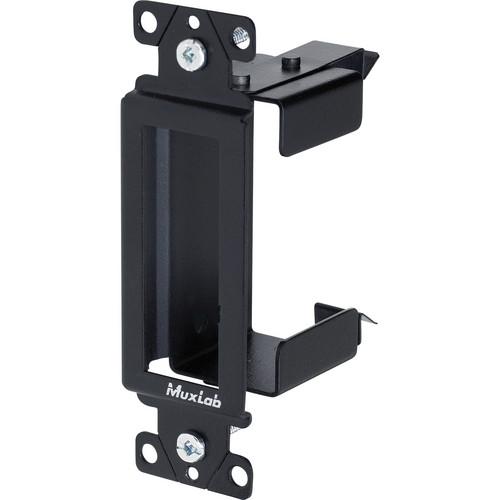

Product description The MuxLab 500910 Wall Mount Balun Fixture is used for custom installation of a MuxLab square balun behind a decora compatible wall plate. With a RJ45 connection, the baluns can be attached to the front or rear facing. Using the spring latching mechanism, the fixture holds the balun securely and also allows for quick removal, which increases versatility in mounting. To support a fully Cat5 cabling solution, the appropriate MuxLab baluns are installed near the equipment at the head end. With the one-piece design, the balun fixture is easy to maintain. It attaches to standard gang boxes and mud rings. - Used for custom installation of MuxLab square balun behind a decora compatible wall plate
- Can be attached to the front or rear facing to suit your needs
- Spring latching mechanism
- Fixture holds the balun securely and also allows for quick removal
- Supports Cat5 cabling solution at the head end
- Attaches to standard gang boxes and mud rings
UPC: 627699009109 In the Box MuxLab 500910 Wall Mount Balun Fixture 2 x Built-in Phillips 6-32 Self-tapping Screws Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500910 Wall Mount Balun Fixture in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500910 Specs | Environment | Custom audio-video systems in a structured cabling environment | | Application | Wall or furniture recessed-mounting of MuxLab baluns in audio-video rooms, boardrooms, offices, homes, classrooms, training centers, etc. | | Capacity | Single (1) position | | Compatible Baluns | MuxLab baluns measuring: 2.4 x 2.25 x 1" (6.1 x 5.7 x 2.5 cm) | | Orientation | Baluns may be installed front or rear facing | | Snap-in Mechanism | Baluns lock into position via spring latch mechanism | | Enclosure | Black painted steel | | Mounting Holes | Standard Decora mounting hole configuration | | Mounting Hardware | 2 built-in Phillips 6-32 self-tapping screws | | Dimensions (WxHxD) | 1.3 x 4 x 2.7" (3.3 x 10.3 x 6.8 cm) | | Weight | 2.6oz (73g) | | Standards | EIA/TIA | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 4.7 x 3.4 x 2.3" |
