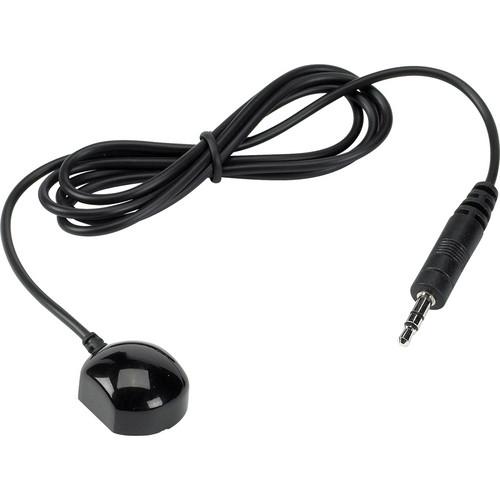

User Manual for MuxLab 500999 IR Sensor Click to enlarge the picture
Contents of the user manual for the MuxLab 500999 IR Sensor
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab 500999 IR Sensor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab 500999 IR Sensor is designed to provide support for IR source control between an AV source and display. It is connected to an active balun receiver, and when used in conjunction with an IR transmitter, supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats. - Designed to provide support for IR source control between an AV source and display
- Connected to an active balun receiver
- Used in conjunction with an IR transmitter
- Supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats
UPC: 627699009994 In the Box MuxLab 500999 IR Sensor 2-year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 500999 IR Sensor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500999 Specs | Environment | Infra-red (IR) control | | Devices | TV Sets, STB, DVD, DVR, PVR, satellite receivers | | Compatible With | 500145, 500405, and 500407 P/Ns | | Transmission | Transparent to the user | | Distance | 49.21' (15m) | | IR Data Format Supported | NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code | | Carrier Frequency | 38 kHz | | IR Wavelength | 940nm | | Connector | 3.5mm (stereo) plug | | Temperature | Operating: 32 to 104º F (0 to 40º C)
Storage: 14 to 158º F (-10 to 70º C)
Humidity: Up to 95% non-condensing | | Enclosure | Dark purple epoxy resin | | Dimensions | 0.79 x 0.95 x 0.51" (20 x 24 x 13 mm) with 39" (1m) cable | | Weight | 0.64oz (18g) | | Regulatory | RoHS | | | | Package Weight | 0.1 lb | | Box Dimensions (LxWxH) | 6.0 x 4.5 x 0.3" |
