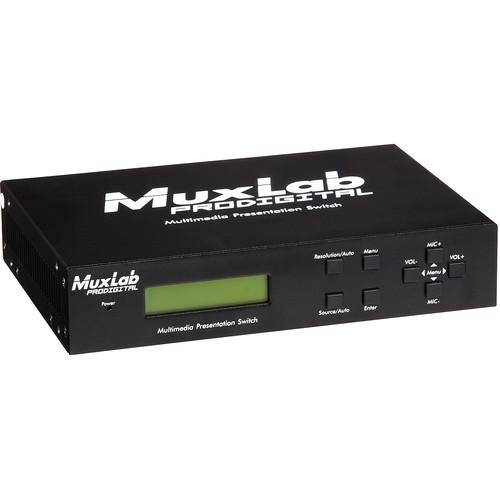

User Manual for MuxLab 5x1 HDMI HDBT Multimedia Presentation Scaler Switcher Click to enlarge the picture
Contents of the user manual for the MuxLab 5x1 HDMI HDBT Multimedia Presentation
- Product category: Routers & Switchers MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Routers & Switchers
|
User manual for the MuxLab 5x1 HDMI HDBT Multimedia Presentation contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The compact Muxlab 5x1 HDMI/HDBT Multimedia Presentation Scaler/Switcher offers five video inputs (HDMI and VGA) and six audio inputs (HDMI, VGA, and Mic). The VGA inputs support VGA, component (YPbPr), and composite video. The 5x1 switch scales and switches the video signal to HDMI and HDBaseT output for a transmission up to 230’, via Cat5e/6 cable with PoC support.With one IR sensor, RS-232 port, and five IR emitters, bidirectional IR and RS-232 signals can be transmitted simultaneously between the 5x1 HDMI/HDBT and an HDMI Extender PoC/PoE Receiver (sold separately). The switch has various applications such as monitoring, conference room, conference centers, corporate boardrooms, hotels, hospitality rooms, big screen displays, television education, command/control centers, and smart homes. - Supports video source autoswitching function
- Bidirectional IR & RS-232 control
- Supports HDMI, VGA, composite, and component video (YPbPr)
- Selectable output resolutions include 1920 x 1200/1080, 1600 x 1200, 1360 x 768, 1280 x 800/720, and 1024 x 768
- Supports CEC, with commands to enable/disable this function
- Supports online software upgrading
- Mic port supports balanced/unbalanced signal, suppresses the external noise effectively
- Phantom power (48V) supports condenser microphones
- Three-level Mic input supports condenser, dynamic, and wireless microphones
- Controllable via buttons, IR, and RS232
In the Box MuxLab 5x1 HDMI/HDBT Multimedia Presentation Scaler/Switcher IR Remote (Needs Two AAA Batteries, Not Included) IR Sensor (with Carrier Wave) IR Emitter 2 x VGA to Component Video (YPbPr) or Composite Cables 2 x RS-232 Cables 2 x Mounting Wall Brackets 4 x Black Screws 7 x Captive Screw Connectors 4 x Plastic Cushions with Black Screws 12 VDC, 2A Power Adapter with Interchangeable Blades Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 5x1 HDMI HDBT Multimedia Presentation Scaler Switcher in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500435 Specs | Environment | HDMI 1.3 | | Devices | DVD, plasma, projectors, monitors, TV, PC, laptops, servers supporting HDMI | | Transmission | Transparent to the user | | Video Bandwidth | HDMI: 4.96 Gb/s
Composite Video: 150 MHz
Component Video (YPbPr): 170 MHz
VGA: 375 MHz | | Maximum Pixel Clock | 165 MHz | | Video Impedance | 75 Ohms | | Video Resolution | 1920 x 1200 / 1920 x 1080
1600 x 1200
1360 x 768
1280 x 800 / 1280 x 720
1024 x 768 | | Audio Bandwidth | 20 Hz to 20 kHz | | Audio Impedance | Input: > 10 kOhms
Output: 70 Ohms | | Stereo Channel Separation | > 80 dB @ 1 kHz | | Signals | HDMI 1.3a protocol and HDCP | | Connectors | 3 x HDMI in
1 x HDMI out
2 x 15-pin VGA in
1 x RJ45S for HDBaseT out
5 x IR emitter, 3.5 mm mono jacks
1 x IR sensor, 3.5 mm stereo jack
6 x 3-pin Terminal block (3.81 mm) for audio (5 x in / 1 x out)
1 x 3-pin Terminal block (3.81 mm) for microphone
1 x 3-pin Terminal block (3.81 mm) for RS-232
1 x 2.1 mm Barrel for power
1 x USB type A | | Maximum Distance | Cat5e/6: 230' (70 m) up to 1080p, based on a maximum length of 6.6' (2 m) of HDMI cable per end | | Cable | 1 x Cat5e/6 or better twisted pair cable required | | Compatible Receiver | 500451-RX (No serial port, no PoE)
500454-RX (With serial port, no PoE)
500454-POE-RX (With serial port and PoE) | | Power Supply | 1 x 110 to 240 V/12 VDC, power supply with interchangeable blades (locking PSU connector) | | Power Consumption | 8 W, for Switch alone
16 W, when 5x1 HDMI/HDBT presentation provides PoE power to HDMI extender receiver | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS | | Dimensions | 8.7 x 1.7 x 5.8" (22.0 x 4.4 x 14.8 cm) | | Weight | 3.3 lb (1.5 kg) |
