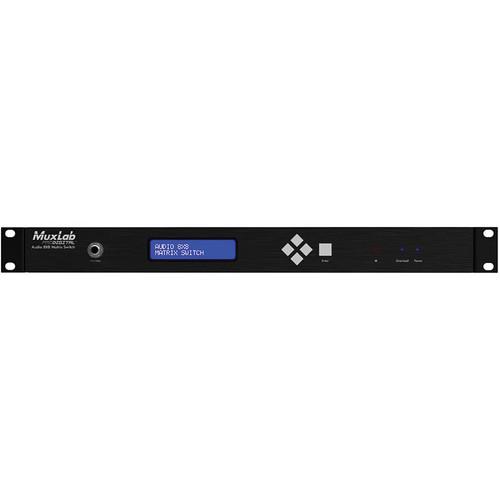

Product description The 8 x 8 Cat 5e/6 Line Level Audio Matrix Switch by Muxlab supports audio switching between multiple audio sources and distribution via Cat 5e/6 cable.
The Cat 5e/6 Line Level Audio Matrix Switch provides full non-blocking port switching and distribution between multiple stereo line level analog audio sources. The Audio Matrix Switch uses RJ45 connectors and works in conjunction with MuxLab's stereo audio balun and digital audio balun (500020).
The product provides port buffering, unity gain compensation and ground loop isolation. The Switch can be managed via push-button, IR, RS232, Ethernet, Web Server, or 3rd party software. UPC: 627699002100 In the Box MuxLab 8 x 8 Cat 5e/6 Line Level Audio Matrix Switch 110-240V/12VDC, 1 A Power Supply Remote USB Cable RS-232 Cable 2 x Brackets 2 Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab 8 x 8 Cat 5e 6 Line Level Audio Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500210 Specs | Environment | Stereo, Analog, SPDIF, Digital | | Devices | DVD and Blu-Ray players
Home Theater systems
Home Theater PCs
Game Consoles | | Input | 8x Analog Stereo RCA
8x Digital RCA (SPDIF)
1x Expansion | | Output | 8x Analog/Digital (RJ45)
1x Expansion
1x Monitor | | Connectivity | Ethernet LAN (RJ45), USB (Type B) and RS232 (DB9) | | Maximum Distance | UTP Cat 5e/6 output port: 1000 ft (305 m) analog and 600 ft (183 m) digital | | Cable Type | Cat 5e/6 UTP | | Power | 12 VDC, 1 A | | LED Diagnostics | Power (Blue)
Channel Overload (Blue)
LAN: Link (Green) Activity (Yellow) | | Temperature | Operating: 0ºC to 40ºC / 32 to 104ºF
Storage: -20ºC to 85ºC / -4 to 185ºF
Humidity: Up to 95% non-condensing | | Dimensions | 16.9 x 8.7 x 1.8" / 43.0 x 22.0 x 4.5 cm | | Compliance | FCC, CE, RoHS, WEEE | | | | Package Weight | 6.55 lb | | Box Dimensions (LxWxH) | 27.005 x 11.575 x 3.228" |
