User Manual for MuxLab Active VGA Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Active VGA Audio Balun
- Product category: KVM Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab KVM Extenders
|
User manual for the MuxLab Active VGA Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

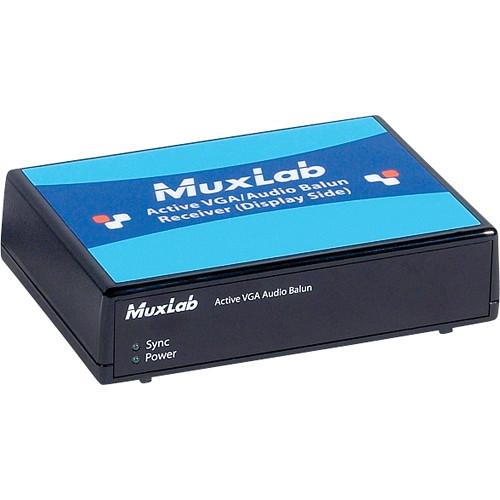

Product description The MuxLab Active VGA/Audio Balun (RX) allows reception of VGA and stereo or digital audio in a point-to-point configuration using Category 5e/6 unshielded copper twisted pair cables. It supports reception of VGA signals up to 600' (180m) at a resolution of 1920 x 1200. The unit is also capable of receiving analog stereo audio and digital audio at a maximum distance of 1000' (305m). When used in conjunction with MuxLab's IR-Emitter (500998) and IR Sensor (500999), the balun provides IR source control. The unit also features RS-232 control, ground loop isolation, manual brightness, sharpness, and skew adjustments. The active balun is enclosed in a black ABS fire retardant plastic case. Supporting DDC1 and DDC2 compliant, the balun is ideal for use in digital signage, residential, boardroom, classroom, and medical imaging video systems. Providing a hassle-free cabling solution, it connects directly to PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors. - Allows reception of VGA and stereo or digital audio in a point-to-point configuration using Category 5E/6 unshielded copper twisted pair cables
- Supports reception of signals up to 600' (180m) at a resolution of 1920 x 1200
- Capable of receiving analog stereo audio and digital audio at a maximum distance of 1000' (305 m)
- Provides IR source control, when used in conjunction with MuxLab's IR-Emitter (500998) and IR Sensor (500999)
- Manual brightness, sharpness, and skew adjustments
- Case made of black ABS fire retardant plastic
- Local VGA/Audio monitor output
- LED indicators - power (green) and sync (green)
- Includes 110-240V/12VDC/0.5A power supply and 12VDC power jacks
- Ideal for use in digital signage, residential, boardroom, classroom, and medical imaging video systems
- Connects directly to PCs, laptops, CRT monitors, LCD monitors, plasma screens, and DLP projectors
- Meets FCC, CE, and RoHS regulatory standards
