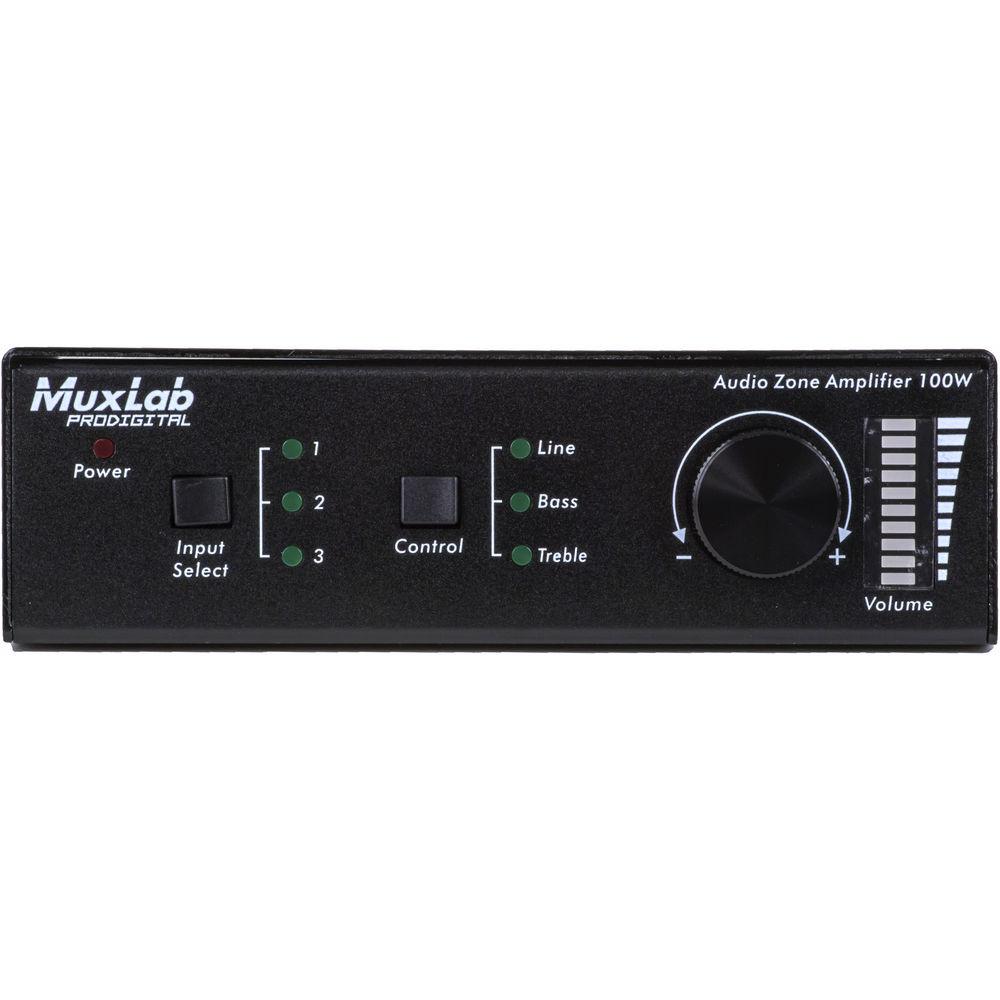

Product description The Audio Zone Amplifier 100W from MuxLab features two 50W digital amplifiers (Class-D), three inputs, and a switchable stereo or mono (bridged) output. For EQ management, the Audio Zone Amplifier lets you control the volume, bass, and treble. These three control options can be controlled, in a circular pattern, via the control button on the front panel. This compact amplifier is suitable for applications such as classrooms, small meeting rooms, lecture halls, bars/pubs, and more. - One 2-channel RCA analog input, one 2-channel 3.5mm analog input, and one PCM digital/optical TosLink input
- Supports two 50W for 2-channel audio at 8 Ohms
- Supports one 100W for mono bridge mode function at 4 Ohms
- Supports 70V speaker systems when connected to a MuxLab 70V transformer such as the 500755-70V (not included)
- Audio inputs switchable by pushbutton

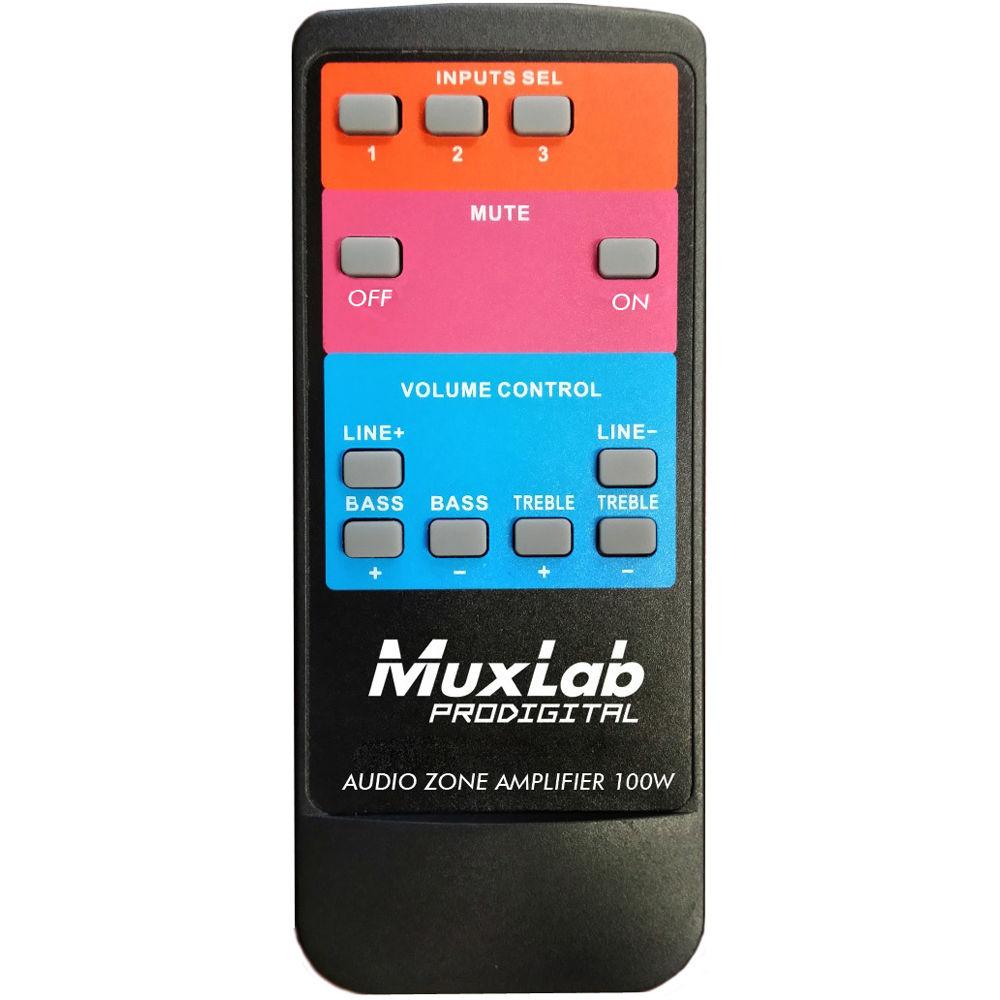

- Can be controlled via an IR remote (included), RS232, or over the Web
- Supports a web-based GUI via the Ethernet port
- Easy adjustments via a volume (level) rotary knob on the front panel
- Audio Cascade output support
- Intuitive LED indicators for input source, control, and volume setting
- Convection cooling, no fan needed
UPC: 627699012178 In the Box MuxLab Audio Zone Amplifier 100W Pluggable 4-Position Terminal Block RS232 Cable 33 VDC, 4A Power Adapter Remote Control IR Sensor Power Cord 2 x Detachable Mounting Ear 4 x Screw 4 x Plastic Feet Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Audio Zone Amplifier 100W in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500217 Specs | Type | Analog Audio | | Devices | Supports audio system, line output, microphone, and speaker | | Compatibility | Compatible with MuxLab analog audio products | | Transmission | Transparent to the user | | Frequency Response | 20 Hz to 20 kHz | | CMMR | >75 dB @ 20 Hz to 20 KHz | | SNR | 80 dB at maximum output | | Input Impedance | >10 kOhms | | Damping | >100 | | Stereo Channel Separation | >75 dB @ 20 HZ to 20 kHz | | THD + Noise | 1% @ 1 kHz, 50 W | | Voltage Gain | 32 dB | | Power Output | 1 x 100 W @ 4 Ohms

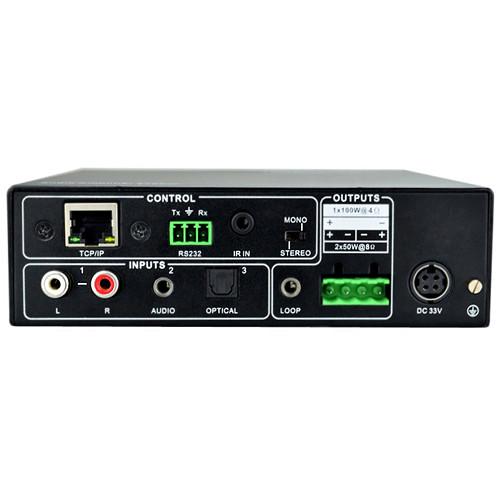

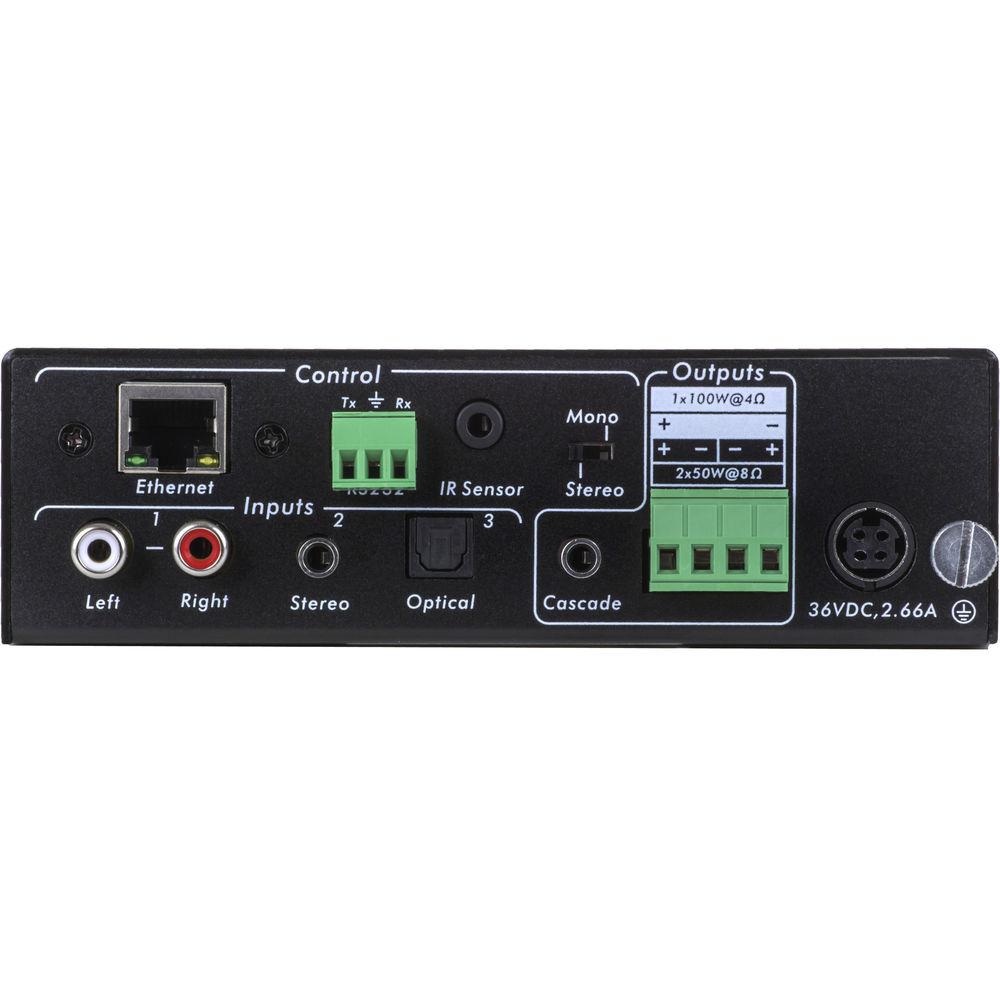

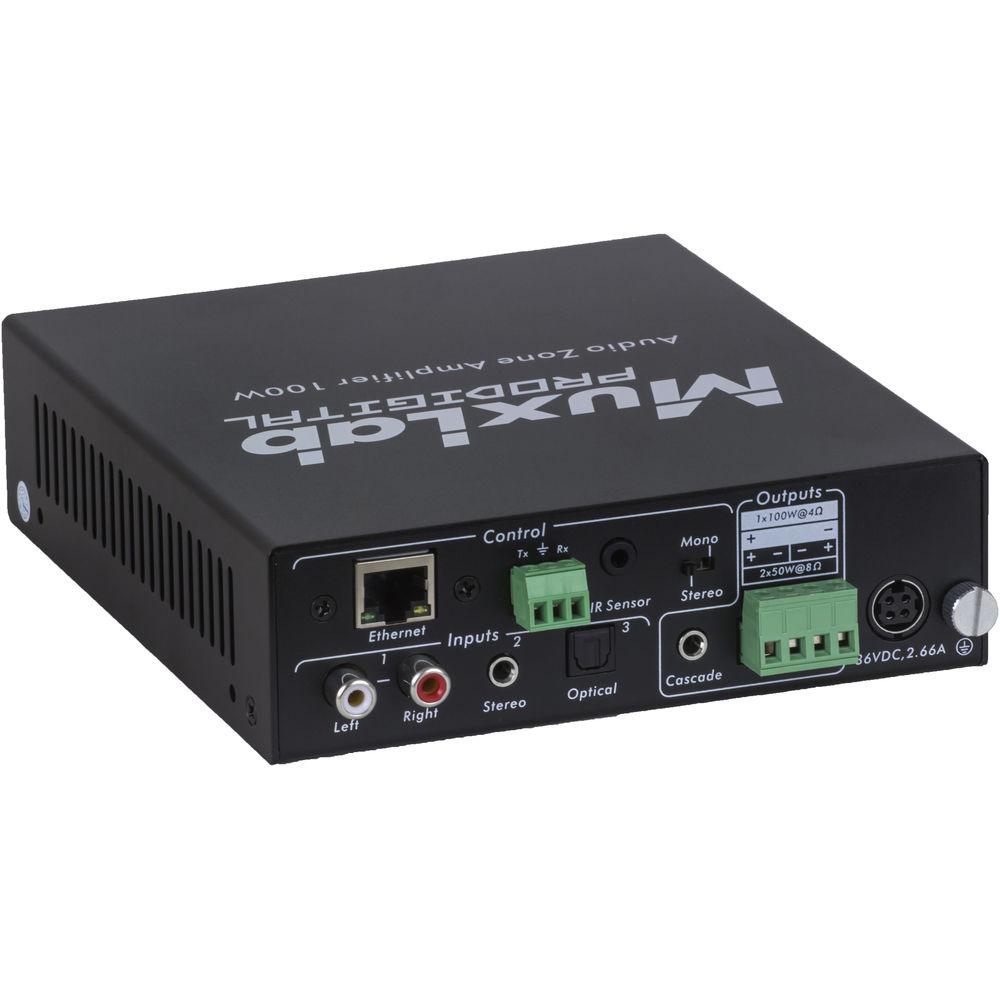

2 x 50 W @ 8 Ohms | | Connectors | 2 x RCA input jacks for L+R audio input
2 x 1/8" (3.5 mm) jacks; one input & one cascade output
1 x 4-pin 0.2" (5.08 mm) terminal block for the speakers
1 x Optical TosLink for the digital audio
1 x IR sensor 0.13" (3.5 mm) stereo jack
1 x RJ45 shielded for the Ethernet LAN connection
1 x 3-pin 0.15" (3.81 mm) terminal block for RS232
1 x 4-pin DIN Jack for power | | Power Supply | 110 - 240 VAC to 33 VDC power supply | | Environmental Conditions | Operating Temperature:
0 to 122°F (0 to 50°C)
Storage Temperature:
-4 to 185°F (-20 to 85°C)
Humidity:
Up to 95% non-condensing | | Regulatory | FCC, CE, RoHS | | Enclosure | Metal | | Dimensions | 5.83 x 1.73 x 6.50" (148 x 44 x 165 mm) | | Weight | 1.59 lb (0.72 kg) | | | | Package Weight | 4.4 lb | | Box Dimensions (LxWxH) | 12.5 x 9.6 x 4.8" |
