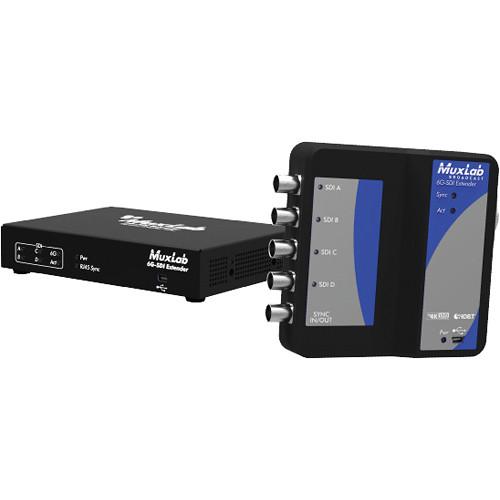

User Manual for MuxLab Broadcast 6G-SDI 4K Extender over UTP Click to enlarge the picture
Contents of the user manual for the MuxLab Broadcast 6G-SDI 4K Extender over
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Broadcast 6G-SDI 4K Extender over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description MuxLab 6G-SDI Extender: Transmit a 6G-SDI Signal an Additional 300 Feet Read More wssvsdbx The black MuxLab Broadcast 6G-SDI 4K Extender allows extending Full HD and 4K video signals from sources (including cameras) with SDI outputs up to 330' using a CAT5e/6 cable. Featuring automatic SDI link recognition, the transmitter automatically enables long-reach mode (up to 500') when HD signal is detected. The transmitter features four BNC SDI inputs that accept a single 6G (up to 4K) using one coaxial cable, dual 3G (up to Full HD) using two coaxial cables, or quad HD inputs using four coaxial cables (not included). The transmitter connects to the receiver using a CAT5e/6 cable. The receiver, featuring 4 SDI outputs, needs to be powered using the included 48 VDC power supply. The transmitter is powered by the receiver through the CAT5e/6 cable. The Broadcast 6G-SDI 4K Extender is suitable for cinema recording, movie making, studio production, news coverage, and live reporting. - Extends 3G/6G signal up to 330' and HD signal up to 500' over UTP
- Supports a single 6G (up to 4K), dual 3G (up to Full HD), or quad HD inputs via coaxial cables (not included)
- Maximum Resolution Supported: 4096 x 2160 @ 24/25 fps, 3840 x 2160 @ 30 fps
- Supported Modes: SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M
- Supports all 6G channel configurations (1/2/4)
- Automatic SDI Link recognition and activation of long reach mode (up to 492') when HD signal is detected
- USB interface for field upgradable firmware and diagnostics
- The transmitter is powered by the receiver via PoE
- etherCON connectivity and aluminum enclosure for ruggedized use
- Multiple 1/4"-20 threads for mounting the transmitter to a camera or other equipment
- Black transmitter with Electrophoretic coating
- Black receiver with enamel coating
- Suitable for cinema recording, movie making, studio production, news coverage, and live reporting
UPC: 627699007303 In the Box MuxLab Broadcast 6G-SDI 4K Extender over UTP (Black) 48 VDC Wall-Mount Power Supply Blades for Wall-Mount Power Supply Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Broadcast 6G-SDI 4K Extender over UTP in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500730 Specs | Environment | 6G-SDI digital signal transmission | | Control | Serial console emulation with USB interface | | Power | 48 V external power supply with US, UK, and Euro blades | | Connectivity | Transmitter:
Front Side:
4 x BNC SDI input connectors (0.8 Vpp, 75 Ω)
1 x BNC sync output connector
Rear Side:
1x RJ45 etherCON connector (compatible with NE8MC system)
Top Side:
Mini USB for firmware updates (and control & status LEDs)
Receiver:
Front Side:
Mini USB for firmware updates (and control & status LEDs)
Rear Side:
1 x RJ45/UTP connector
4 x BNC SDI output connectors (0.8 Vpp, 75 Ω)
1 x BNC sync input connector
1 x standard 0.1" (2.1 mm) power connector | | Compliance | FCC, CE, RoHS | | Enclosure | Metal | | Dimensions | Transmitter: 4.3 x 4.3 x 1.3" (11.0 x 11.0 x 3.2 cm)
Receiver: 5.8 x 4.1 x 1.0" (14.6 x 10.5 x 2.6 cm)
Power Connector: 0.2 x 0.1" (5.5 x 2.1 mm) | | Weight | Transmitter: 0.76 lb (0.34 kg)
Receiver: 0.60 lb (0.27 kg) | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 12.205 x 7.087 x 4.252" |
