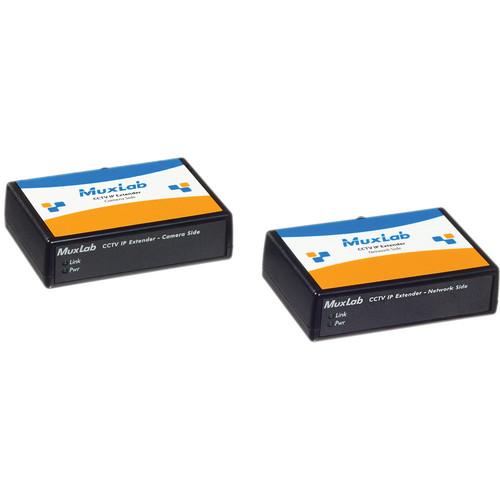

User Manual for MuxLab CCTV IP Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab CCTV IP Extender Kit
- Product category: Ethernet Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Ethernet Extenders
|
User manual for the MuxLab CCTV IP Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab CCTV IP Extender Kit connects 2 CCTV IP cameras to a 10/100BaseT LAN over extended distances via a single coax or CAT 5e twisted pair cable. It supports transmission at a distance up to 650’ (200 m) at 100 MB/s and up to 1 mile (1.6 km) at 25 MB/s . - Connects up to 2 CCTV IP cameras to a 10/100BaseT LAN over extended distances via a single coax or CAT 5e twisted pair cable
- Supports transmission up to 650' (200 m) at 100 MBps and up to 1 mile (1.6 km) at 25 MBps
- Leverages the existing coax or CAT 5e/6 installation
- Plug-and-forget technology eliminates service calls
- Suitable for use in campus, highways, airports, hotels, casinos, commercial complexes, remote parking lots, entry gates, hospitals, and prisons
UPC: 627699001103 In the Box MuxLab CCTV IP Extender Kit 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab CCTV IP Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500110 Specs | Environment | CCTV IP | | Devices | CCTV IP cameras, NVR, IP encoders, network switches and any device with a 10/100 MB/s Ethernet port, supporting IP | | Transmission | Transparent to the user | | Standard | Ethernet: IEEE 802.3 10BaseT, IEEE 802.3U 100Base-TX, IP ver 4 and 6
Line side: VDSL-DMT: ITU-T G993.1 VDSL, ITU-T G997.1, G.993.2 VDSL2 (profile 17a) | | Distance versus Speed | Asymetric-Downstream/Upstream
CAT 5e/6:
5000' (1.5 km) => 17 MB/s 1.2 MB/s
4000' (1.2 km) => 22 MB/s 5.3 MB/s
3000' (0.9 km) => 28 MB/s 10 MB/s
2000' (0.6 km) => 34 MB/s 21 MB/s
1000' (0.3 km) => 44 MB/s 31 MB/s
RG59/U 20AWG Coax:
5000' (1.5 km) => 31 MB/s 14 MB/s
4000' (1.2 km) => 39 MB/s 21 MB/s
3000' (0.9 km) => 39 MB/s 26 MB/s
2000' (0.6 km) => 44 MB/s 28 MB/s
1000' (0.3 km) => 44 MB/s 31 MB/s
With two (2) cameras connected, maximum distance depends on throughput/resolution/compression ratio of the camera; 5 to 25 MB/s per camera | | Cable Type | Between unit:
Coax 75 ohm or Cat5e/6 twisted-pair
AWG24 or better
Between Ethernet port:
10 MB/s: CAT3, 4 or 5 UTP up to 330' (100 m)
100 MB/s: CAT5, 5E or 6 UTP up to 330' (100 m) | | LED Indicators | Power, Link, Ethernet: 10/100 MB/s
Ethernet: Activity | | Connectors | 1 isolated BNC 75 ohm female to connect remote unit
1 isolated RJ45 to connect remote unit
1 or 2 metallic RJ45 with leds for Ethernet with auto reversal
1 power connector, 2 mm | | Pin Configurations | RJ45 connector: Pin 4 & Pin 5 (1 pair required only, blue and white/blue)
BNC: 75 ohms coax cable: Center & Shield (shield is isolated from chassis)Polarity insensitive | | Power Supplies | 100-240 V/5 VDC/625 mA
2 power supplies with for NA, Eur and UK | | Power Consumption | 1.2 W each unit | | Temperature | Operating: 32 to 140° F (0 to 60° C)
Storage: -67 to 185° F (-55 to 85° C)
Humidity: up to 95% non-condensing | | Enclosure | Plastic | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94 V0 | | Dimensions | 4.5 x 3 x 1.2" (11.4 x 7.6 x 3.2 cm) | | Weight | 1 lb (0.5 kg) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 12.4 x 6.9 x 4.2" |
