User Manual for MuxLab CCTV Pass-Thru Balun Click to enlarge the picture
Contents of the user manual for the MuxLab CCTV Pass-Thru Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab CCTV Pass-Thru Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

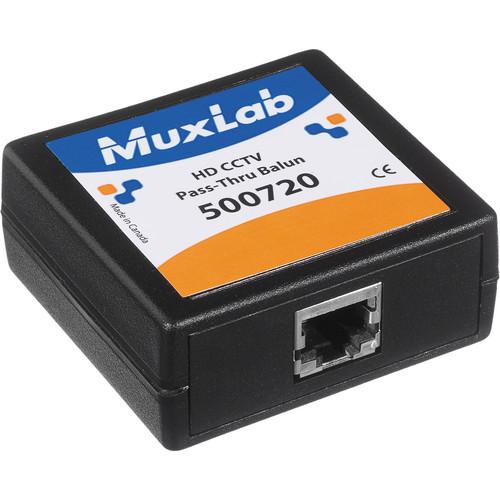

Product description The CCTV Pass-Thru Balun from MuxLab works, when paired with one of three complementary units, to convert an analog signal from a surveillance camera to digital for transmission through a Cat5e/6 cable. A second unit then converts the signal back to analog for delivery to a DVR. It can transmit video resolutions up 1080i, along with remote power and full PTZ control. This saves material, time, and installation cost by requiring only a single Cat5e/6 cable instead of separate video, power, and PTZ control wires. - Required Pairing Units
-
- This balun must paired with another unit, one at each end of the Cat5e/6 cable
- Use 500720-CL, 500721, or another 500720
UPC: 627699007204 In the Box MuxLab CCTV Pass-Thru Balun Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab CCTV Pass-Thru Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500720 Specs | Speed | 270Mb/s, 1.485Gb/s & 2.97 Gb/s (automatic selection). | | Connectors | Video: BNC-F
PTZ: 2-pole screw terminal block Cat5e/6, Link: RJ45S | | Maximum Distance | When used with another 500720 or 500720-CL:
Standard Def:CAT 5e: 400' (120 m)CAT 6: 500' (150 m)
High Def, 720p/1080i:Cat 5e: 100' (30 m)CAT 6: 150' (45 m)
3G, 1080p:CAT 6 only: 65' (20 m)
When used with 500721:
Standard Def:CAT 5e: 500' (150 m)CAT 6: 500' (150 m)
High Def, 720p, 1080i:Cat 5e: 150' (45 m)CAT 6: 200' (60 m)
3G, 1080p:CAT 6 only: 50' (15 m) | | Material | ABS polymer plastic | | Environmental | Temperature: -40 to 140°F (-40 to 60°C)
Humidity: Maximum 95%, non-condensing | | Dimensions | 2.4 x 2.3 x 1.0" (6.1 x 5.7 x 2.5 cm) | | Weight | 2 oz (60 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.8 x 4.1 x 0.9" |
