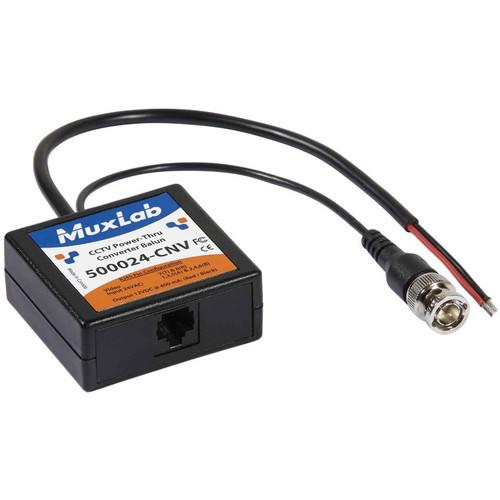

Product description The MuxLab CCTV Power-Thru Converter Balun can be used for transmitting video and remote power via a 4-pair CAT5e/6 cable to any CCTV equipment, minimizing the need for multiple cables in CCTV and surveillance installations. You can use a central 24VAC CCTV power supply to remotely power a 12VDC camera, thanks to its ability to convert 24VAC to 12VDC.
For a complete cabling solution, this balun can be used in conjunction with MuxLab’s CCTV Power-Thru Balun (500024), Passive CCTV Power Integrator Hub (500136), or Passive CCTV Hub (500130). In this configuration, the balun is installed at the camera side. - Video and remote power transmission via a single 4-pair CAT5e/6 cable
- Converts 24VAC to 12VDC @ 400mA at the camera end
- Video transmission up to 2,200' (670m) via CAT5e/6 UTP (unshielded twisted pair) 1
Please Note: Shorter distances may result with certain DVR models. close - Transmits 24VAC power up to 795' (242m) @ 400mA maximum (when installed at the camera side)
- Suitable for use with CCTV cameras, monitors, switchers, sequencers, multiplexers, DVRs, or any other CCTV equipment
- Works with CCTV Power-Thru Balun (500024), Passive CCTV Power Integrator Hub (500136), Passive CCTV Hub (500130), LongReach II Active CCTV 8/16-port Receiver Hub (500126/500127), and LongReach II Active CCTV Receiver Balun (500124)
UPC: 627699800249 In the Box MuxLab CCTV Power-Thru Converter Balun Limited Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab CCTV Power-Thru Converter Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500024-CNV Specs | Video System | Baseband video; NTSC, PAL, SECAM | | Transmission | Transparent to the user | | Bandwidth | DC to 8 MHz | | Impedance | Input: 75 Ω (BNC), Output: 100 Ω (RJ45) | | Maximum Input | 1.1 Vpp | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color
CAT3: 1,200' (365 m), CAT5e/6: 2,200' (670 m)
B&W
CAT3: 1,500' (457 m), CAT5e/6: 2,500' (762 m) Color: Certain models of DVR may yield shorter distances of 1,000 to 1,500' (304.8 to 457.2 m). | | Wiring | Remote power via 3 twisted pairs Class II power supply recommended. | | Maximum Distance | 795' (242 m) with 24 VAC or 1,113' ( (339 m) with 28 VAC With a maximum consumption of 400 mA. | | Input Voltage | 13 to 30 VAC/DC | | Output Voltage | 12 VDC/400 mA | | Cable Type | UTP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 Ω at 1 MHz
Maximum Capacitance: 20 pF/ft
Attenuation: 6.6 dB per 1,000' (304.8 m) at 1 MHz
Coax
Impedance: 75 Ω at 1 MHz (RG59/U)
Maximum 25.0' (7.6 m) of coax allowed end to end | | Connectors | Video: BNC male 8.0" (20.3 cm) mini-coax lead
Power: 2-wire 18 AWG lead | | Temperature | Operating: 0 to 131°F (0 to 55°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% | | Enclosure | ABS fire-retardant plastic | | Dimensions | 2.4 x 2.2 x 1.0" (6.1 x 5.5 x 2.5 cm) plus cable leads
8.0" (20.3 cm) for video, 10.0" (25.4 cm) for power lead | | Weight | 1.95 oz (55.00 g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.4 x 4.4 x 0.9" |
