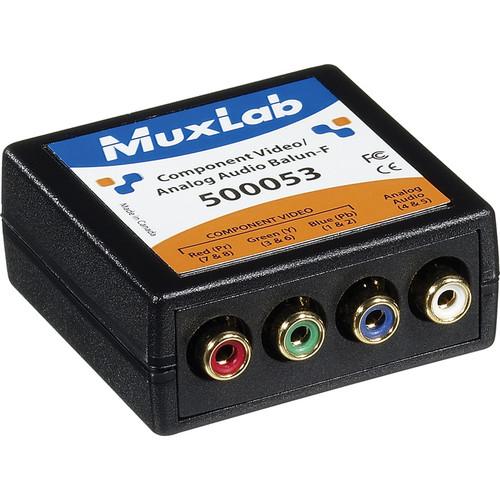

User Manual for MuxLab Component Video Analog Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Component Video Analog Audio Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Component Video Analog Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Component Video/Analog Audio Balun (Transmitter) transmits 1 component video (YPbPr or RGB) signal and 1 analog audio signal using Category 5E/6 twisted pair cables. When used in pairs, the Component Video/Analog Audio Balun supports applications that use 480i/p (up to 1000'), 720p, and 1080i/p (up to 500') HDTV (hi-definition) video. It offers support for analog audio on a fourth twisted pair, and features molded color-coded RCA cable leads and modular shielded RJ45 connectors for easy attachment. Offering a common mode rejection of up to -55 dB for video and up to 60 dB for audio, the Component Video/Analog Audio Balun ensures error-free transmission. It is housed in ABS fire-retardant plastic. - Transmits one component video (YPbPr or RGB) signal and one analog audio signal
- Uses category 5E/6 twisted pair cable to transmit data
- Supports applications that use 480i/p (up to 1000'), 720p, and 1080i/p (up to 500') HDTV (hi-definition) video
- Offers support for analog audio on a fourth twisted pair
- Features molded color-coded RCA cable leads for easy attachment
- Uses a modular shielded RJ45 connector
- Featuring a common mode rejection of up to -55 dB for video
- Common mode rejection up to 60 dB for audio
- Housed in ABS fire-retardant plastic
UPC: 627699000533 In the Box MuxLab Component Video/Analog Audio Balun (Transmitter) Lifetime Warranty Quick-Start Guide PDF 85.8kb Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Component Video Analog Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500053 Specs | Standards | Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p
Line level analog audio | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off
Analog audio: 20 Hz to 20 KHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Video: 0.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Audio: Less than 2 dB per pair over the frequency range | | Return Loss | Return Loss (video): Greater than 15 dB over the frequency range | | Common Mode Rejection | Video: -55 dB max
Audio: Greater than 60 dB @ 1 KHz / Greater than 40 dB over the frequency and distance range | | Maximum Distance | 480i/p: 1,000' (305m)
720p and 1080i: 500' (152m)
Analog Audio: 3,250' (990m) | | Cable | Cat5E/6 UTP/STP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz
Coax
Impedance: 75 ohms at 1 MHz | | Connectors | 3 gold-plated RCA-F connectors: Green (Y), Blue (Pb), Red (Pr)
1 RCA-F connector for analog audio
RJ45S for twisted pair | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) | | Weight | 2.9 oz (81g) | | | | Package Weight | 0.25 lb | | Box Dimensions (LxWxH) | 8.2 x 5.6 x 0.9" |
