User Manual for MuxLab Component Video Analog Audio Wall Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Component Video Analog Audio Wall
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Component Video Analog Audio Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

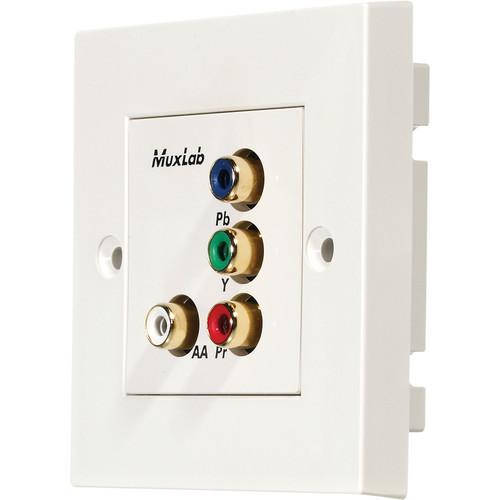

Product description The MuxLab Component Video/Analog Audio Wall Balun (UK) allows transmission of a component video (YPbPr or RGB) signal and an analog audio signal using Category 5E/6 twisted pair cables. When used in pairs or with 500052/500053, the Component Audio Wall Balun supports 480i/p, 720p, and 1080i/p commercial and residential HDTV video applications. It offers support for analog audio on a fourth twisted pair. The Wall Balun features molded color-coded RCA cable leads for an easy attachment and is housed in an ABS fire retardant plastic. Providing a hassle-free cabling solution, the balun connects to DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre, and other equipment supporting HDTV component video and/or analog audio. - Allows transmission of a component video (YPbPr or RGB) signal and an analog audio signal using Category 5E/6 twisted pair cables
- Used in pairs or with 500052/500053
- Supports 480i/p - up to 1000' (305m)
- Supports 720p and 1080i/p - up to 500' (152m)
- Transmits analog audio at a maximum distance of up to 3250' (990m)
- Offers support for analog audio on a fourth twisted pair
- Includes 3 RCA-F connectors - Green (Y), Blue (Pb) , and Red (Pr) and a RCA-F connector for analog audio
- Uses molded color-coded RCA cable leads
- Made of ABS fire retardant plastic
- Changes and additions to other outlet connections are made easier
- Meets FCC, CE, and RoHS regulatory standards
