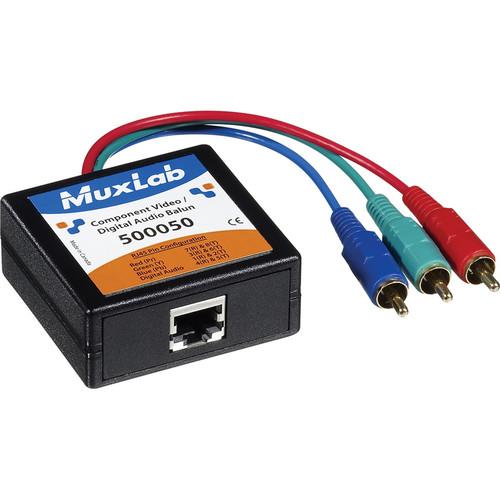

User Manual for MuxLab Component Video Digital Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Component Video Digital Audio Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Component Video Digital Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Component Video/Digital Audio Balun (Male) allows transmission of a component video (YPbPr or RGB) signal and a digital audio signal using Category 5E/6E/6 twisted pair cables. When used in pairs, the Component Audio Balun supports applications that use 480i/p (up to 1000'), 720p, and 1080i/p (up to 500') HDTV (hi-definition) video. It transmits digital audio at a maximum distance of up to 600' (182m), and offers support for digital audio on a fourth twisted pair. The balun also features molded color-coded RCA cable leads and modular shielded RJ45 connectors for an easy attachment. The Component Audio Balun is housed in an ABS fire-retardant plastic case. Besides using Cat 5E/6E/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes or additions to outlet connections faster and easier. Providing a hassle-free cabling solution, the balun connects to DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theater systems, and other equipment supporting HDTV component video and/or digital audio. - Allows transmission of a component video (YPbPr or RGB) signal and a digital audio signal using Category 5E/6E/6 twisted pair cables
- Supports applications that use 480i/p (up to 1000'), 720p, and 1080i/p (up to 500') HDTV (hi-definition) video when used in pairs
- Transmits digital audio at a maximum distance of up to 600' (182m)
- Offers support for digital audio on a fourth twisted pair
- Includes 3 RCA-M connectors - Green (Y), Blue (Pb), and Red (Pr)
- Features molded color-coded RCA cable leads for easy attachment
- Uses a modular shielded RJ45 connector
- Made of ABS fire retardant plastic
- Changes and additions to other outlet connections are made easier
- Meets FCC, CE, and RoHS regulatory standards
UPC: 627699000502 In the Box MuxLab Component Video/Digital Audio Balun (Male) Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Component Video Digital Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500050 Specs | Standards | Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off
Digital audio: 25 MHz, 1dB roll off | | Maximum Input | 1.1Vp-p | | Insertion Loss | Video: 0.1 dB for 0.1 MHz. Gradually increasing to 3.0 dB over the frequency range
Audio: Less than 2 dB per pair over the frequency range | | Return Loss | Return Loss (video): Greater than 15 dB over the frequency range
Return Loss (audio): Greater than 15 dB over the frequency range | | Common Mode Rejection | Common Mode Rejection (video): -55 dB max.
Common Mode Rejection (audio): -55 dB max. | | Maximum Distance | 480i/p: 1,000' (305m)
720p and 1080i: 500' (152m)
Digital Audio: 600' (182m). Compatible with 500020 | | Cable | Cat5E/6 UTP/STP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz
Coax
Impedance: 75 ohms at 1 MHz | | Connectors | 3 RCA-M connectors: Green (Y), Blue (Pb), Red (Pr) | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | ABS fire retardant plastic | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) - plus 6" (15.2cm) cable lead for video | | Weight | 2.9 oz (81g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 4.4 x 4.3 x 1.1" |
