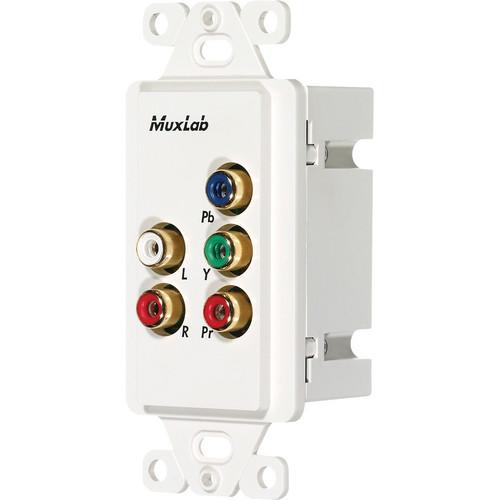

User Manual for MuxLab Component Video Stereo Audio Wall Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Component Video Stereo Audio Wall
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Component Video Stereo Audio Wall contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Component Video/Stereo Audio Wall Balun (US) allows transmission of a component video (YPbPr or RGB) signal and a stereo audio channel using Category 5e/6 twisted pair cables. When used in pairs or with 500058, the Component Audio Wall Balun supports 480i/p, 720p, and 1080i/p HDTV video applications, and true Hi-fi left/right analog stereo audio for commercial and residential AV applications. It transmits stereo audio at a maximum distance of up to 3250' (1km). The Decora-compatible balun features a modular shielded RJ-45 connector for an easy attachment, and is housed in an ABS fire retardant plastic. Besides using Cat 5e/6 as a cost-effective alternative to coaxial cabling, the balun also makes changes or additions to outlet connections faster and easier. Providing a hassle-free cabling solution, the balun connects to DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theater, and other equipment supporting HDTV component video and/or stereo audio. - Allows transmission of a component video (YPbPr or RGB) signal and a stereo audio channel using Category 5e/6 twisted pair cables
- Used in pairs or with 500058
- Supports 480i/p - up to 1000' (305m)
- Supports 720p and 1080i/p - up to 500' (152m)
- Supports true Hi-fi left/right analog stereo audio for commercial and residential AV applications
- Transmits stereo audio at a maximum distance of up to 3250' (1km)
- Features GLC (Ground Loop Coupling)
- Modular shielded RJ45 connector for an easy attachment
- Housing made of ABS fire retardant plastic
- Changes and additions to other outlet connections are made easier
- Meets FCC, CE, and RoHS regulatory standards
UPC: 627699920589 Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Component Video Stereo Audio Wall Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500058-WP-US Specs | | | Package Weight | 0.4 lb | | Box Dimensions (LxWxH) | 5.5 x 4.5 x 2.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 80 owners. Add your rating and experience with the product.
