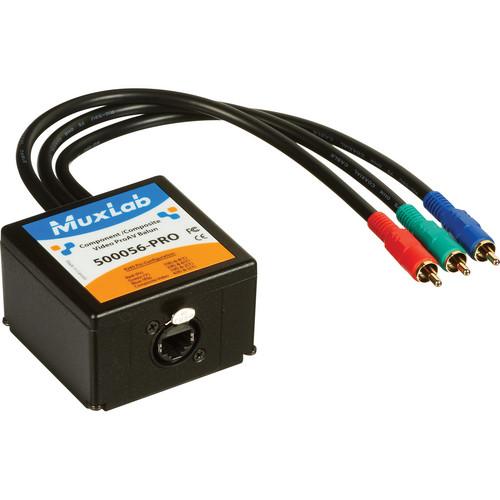

User Manual for MuxLab Composite Component ProAV Video Balun Transmitter Click to enlarge the picture
Contents of the user manual for the MuxLab Composite Component ProAV Video Balun
- Product category: Signal Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Signal Extenders
|
User manual for the MuxLab Composite Component ProAV Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Composite/Component ProAV Video Balun Transmitter can transfer a component video signal (YPbPr or RGB) and a composite video signal via a single CAT 5e/6 twisted pair cable, up to 500’ (152 m). It features a rugged cast-aluminum enclosure and heavy-duty 12” (30.5 cm) built-in cable leads. An Ethercon RJ45S connector is included for cable strain relief. - Transmits a component video signal (YPbPr or RGB) and a composite video signal via a single CAT 5e/6 twisted pair cable
- Offers transmission distance up to 500' (152 m)
- Rugged cast-aluminum enclosure
- Heavy-duty 12" (30.5 cm) built-in cable leads
- Ethercon RJ45S connector for cable strain relief
- Supports composite video on fourth twisted pair
- Compatible with 500056 and can be used in pairs or in conjunction with other MuxLab component video baluns
- Suitable for use in rental & staging, and mobile production
UPC: 627699900567 In the Box MuxLab Composite/Component ProAV Video Balun Transmitter Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Composite Component ProAV Video Balun Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500056-PRO Specs | Environment | Component Video (YPbPr), RGB Video (sync on green)
480i/p, 720p, 1080i/p
Line level Composite Video (NTSC, PAL, SECAM) | | Devices | DVD players, satellite receivers, plasma displays, projectors, monitors, up-converters, amplifiers, switchers, home theatre and other equipment supporting HDTV component video and/or Composite Video | | Transmission | Transparent to the user | | Bandwidth | Video: 60 MHz, 3 dB roll off
Composite Video: DC to 8 MHz | | Maximum Input | 1.1 Vp-p | | Insertion Loss | Loss per pair:
Component: Less than 3 dB per pair over the frequency range
Composite: Less than 2 dB per pair over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Component: -55 dB max.
Composite: Greater than 40 dB @ 8 MHz | | Maximum Distance | CAT 5E/6 UTP & STP:
480i/p: 1,000' (305 m)
720p and 1080i/p: 500' (152 m)
Composite Video: 2,200' (670 m) | | Cable | CAT 5/6 UTP/STP:
24 gauge or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1000' at 1 MHz Coax:
Impedance: 75 ohms at 1 MHz | | Connectors | 3 RCA-M connectors: Green (Y), Blue (Pb) , Red (Pr)
1 RCA-F connector for Composite Video
Ethercon RJ45S for twisted pair | | Pin Configurations | Red (Pr): Pins 7 [R] & 8 [T]
Green (Y): Pins 3 [R] & 6 [T]
Blue (Pb): Pins 1 [R] & 2 [T]
Composite Video: Pins 4 [R] & 5 [T]
Reverse polarity sensitive | | Temperature | Operating: 32 to 131° F (0 to 55° C)
Storage: -4 to 185° F (-20° to 85° C)
Humidity: up to 95% | | Enclosure | Cast aluminum | | Regulatory | FCC, CE, RoHS | | Dimensions | 2.7 x 2.6 x 1.9" (7 x 6.7 x 5.02 cm)
Plus 12" (30cm) cable leads | | Weight | 0.54 lb (0.24 kg) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 11.0 x 3.5 x 2.4" |
