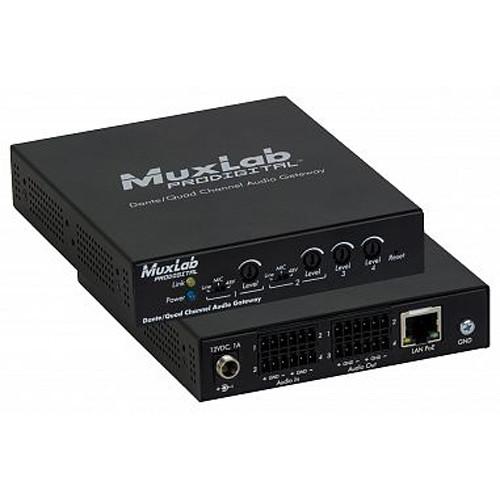

User Manual for MuxLab Dante Quad Channel Audio PoE Gateway Click to enlarge the picture
Contents of the user manual for the MuxLab Dante Quad Channel Audio PoE
- Product category: Networked Audio Systems MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Networked Audio Systems
 |
User manual for the MuxLab Dante Quad Channel Audio PoE contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

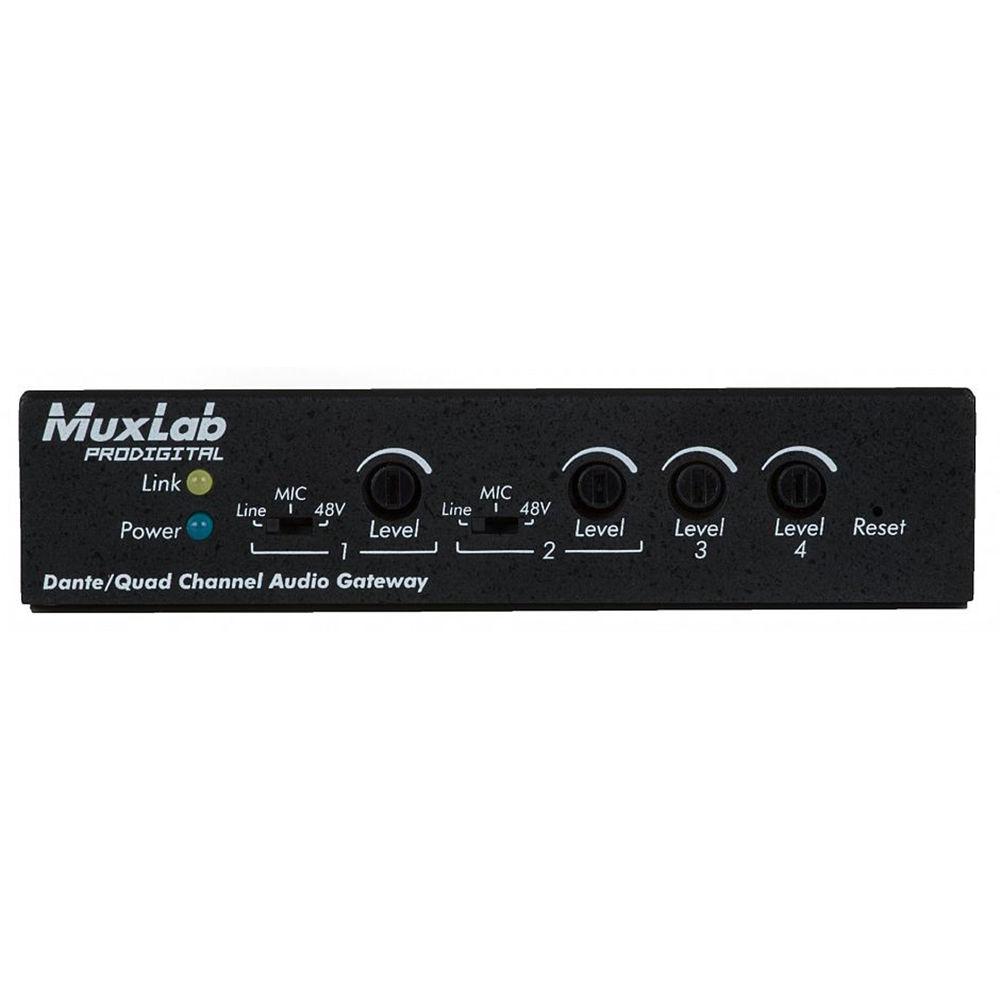

Product description The Dante/Quad Channel Audio PoE Gateway from MuxLab permits non-Dante compatible analog audio equipment to interface with Dante compatible professional audio equipment. It can be used to transmit dual two-channel or quad single-channel full-range audio—20 Hz to 20 kHz—over the network to Dante. In addition, dual two-channel or quad single-channel balanced analog audio signals may also be received from Dante compatible equipment in the same manner. The unit may be connected via Cat 5e/6 cable up to 330' from an Ethernet switch. The Dante/Quad Channel Audio PoE Gateway includes four single-channel balanced analog audio-in and four single-channel balanced analog audio-out ports via phoenix connectors. The quad single-channel balanced analog audio-in ports may be connected to line-level balanced analog audio signals or to line-level balanced microphones. Furthermore, the quad single-channel balanced analog audio-out ports may be connected to balanced analog audio amplifiers supporting line-level inputs, such as a zone amplifier (100W), or to two pairs of powered speakers for direct sound output. Finally, the Dante/Quad Channel Audio PoE Gateway can be powered by a PoE Ethernet switch. Cables and a power supply are not included. - Interface analog audio equipment to Dante audio equipment
- Supports dual two-channel or quad single-channel full-range balanced analog audio from 20 Hz to 20 kHz
- Transmission up to 330' over Cat 5e/6
- Supports quad single-channel balanced analog audio-in and quad single-channel balanced analog audio-out from Dante audio equipment
- Balanced audio ports may be interfaced to unbalanced audio ports when only 2 of 3 pins are used per channel
- IP managed for remote control
- Controllable via the Audinate Dante controller software
UPC: 627699007655 In the Box MuxLab Dante/Quad Channel Audio PoE Gateway Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Dante Quad Channel Audio PoE Gateway in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

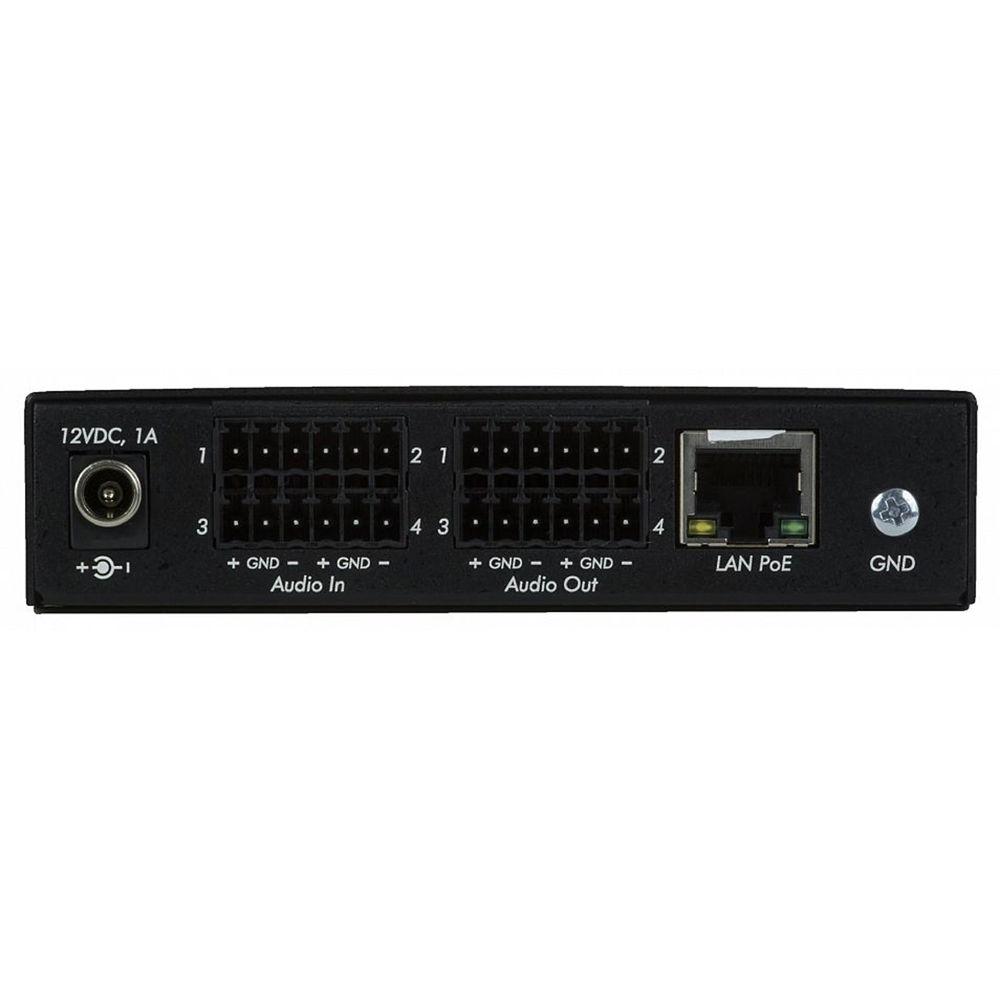

Technical parametersMuxLab 500765 Specs | Environment | Quad single-channel balanced analog audio and Dante audio | | Devices | Analog audio equipment and Dante professional audio equipment | | Connectors | 2 x 6-pin phoenix connector, for quad single-channel balanced analog audio-in
2 x 6-pin phoenix connector, for quad single-channel balanced analog audio-out
1 x RJ45S for Cat 5e/6 unshielded or shielded twisted pair, for Ethernet connection
1 x 2.1 mm jack, for power | | Maximum Distance | Cat 5e/6: 330' / 100 m from Ethernet Switch
Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used. | | Signal Format | Dante | | Bandwidth | Analog: 20 Hz to 20 kHz
Network: TBD | | RJ45 Pin Configuration | Reverse Polarity Sensitive: Use EIA/TIA 568A or 586B straight-through wiring
RJ45 Link:
Pin 1 (R) pin 2 (T)
Pin 3 (R) pin 6 (T)
Pin 4 (R) pin 5 (T)
Pin 7 (R) pin 8 (T) | | Cables Supported | 1 x Cat 5e/6 or better twisted pair cables required
8 x quad single-channel balanced audio cables with 3-pin phoenix connectors (for audio-in and audio-out) | | Power Source | This device supports PoE (PD); an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet switch. If required, an optional power supply may be purchased separately. | | PoE | IEEE 802.3af | | Power Consumption | 4.5 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C | | Humidity (Non-Condensing) | Up to 95% | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions (W x L x H) | 4.4 x 4.6 x 1.0" / 11.2 x 11.7 x 2.5 cm | | Weight | 1.5 lb / 0.7 kg | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 8.0 x 6.0 x 2.3" |
