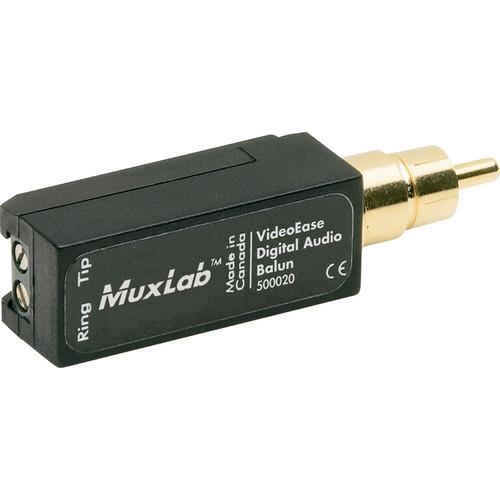

User Manual for MuxLab Digital Audio Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Digital Audio Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Digital Audio Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Digital Audio Balun allows an audio source from a digital audio decoder/amplifier to be connected up to 600' (183m) away using 1 twisted pair cable, and supports Dolby Digital and dts digital audio formats. When used in pairs, it allows a digital audio source such as a DVD, VCR, or satellite receiver to be connected to a digital audio home theater system. Featuring screw terminals that connect directly to the digital audio equipment, the Digital Audio Balun also features built-in cable strain relief for ease of installation and reliable connectivity. It has a common mode rejection of up to 60 dB at 10 MHz for an error-free connection. - Source from a digital audio decoder/amplifier to be connected up to 600' (183m) away
- Uses 1 twisted pair cable
- Supports Dolby Digital and dts digital audio formats
- Allows a digital audio source such as a DVD, VCR, or satellite receiver to be connected to a digital audio home theater system
- Features screw terminals that connect directly to the digital audio equipment
- Built-in cable strain relief for ease of installation and reliable connectivity
- Common mode rejection of up to 60 dB at 10 MHz for an error-free connection
UPC: 627699000205 In the Box MuxLab Digital Audio Balun Lifetime Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Digital Audio Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500020 Specs | Environment | Dolby Digital, Dolby Pro Logic, dts, LOGIC7, THX Surround EX | | Devices | DVD, VCR, camcorders, satellite receivers, home theater, channel processors, amplifiers, D/A converters, MPEG encoders/decoders, switchers and other commercial or consumer audio equipment supporting digital audio | | Transmission | Transparent to the user | | Bandwidth | DC to 25 MHz | | Input | Maximum Input: 1.0 Vp-p | | Insertion Loss | Less than 1 dB per pair over the frequency range | | Return Loss | Greater than 15 dB over the frequency range | | Common Mode Rejection | Greater than 60 dB @ 10 MHz | | Maximum Distance | Cat 5 - 600' (183m) | | Cable Requirements | 24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz. Maximum capacitance: 20 pf/foot. Attenuation: 6.6 dB/1000' (305m) at 1 MHz | | Connectors | 2 screw terminals
1 S/PDIF (RCA) gold-plated male connector | | Pins | Pin Configuration: Tip-signal, Ring-GND | | Impedance | Input: 75 ohms (RCA)
Output: 100 ohms (Screw Terminals) | | Temperature | Operating: 32 ~ 131°F (0 ~ 55°C)
Storage: -4 ~ 185°F (-20 ~ 85°C)
Humidity: up to 95% | | Enclosure | Fire retardant plastic | | Dimensions | 2.3 x 0.6 x 0.6" (5.8 x 1.6 x 1.6cm) | | Weight | 1.5 oz (43g) | | | | Package Weight | 0.02 lb | | Box Dimensions (LxWxH) | 2.35 x 0.75 x 0.75" |
