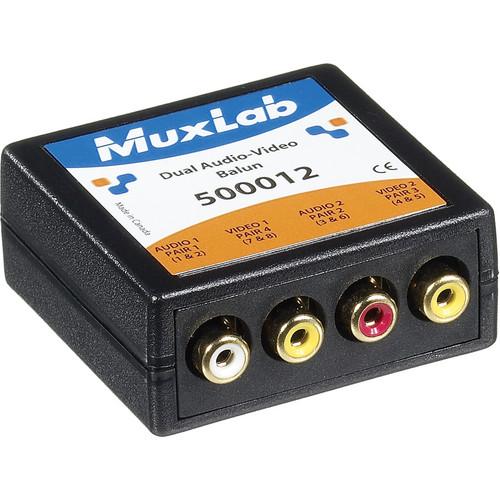

User Manual for MuxLab Dual Audio-Video Balun Click to enlarge the picture
Contents of the user manual for the MuxLab Dual Audio-Video Balun
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab Dual Audio-Video Balun contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab Dual Audio-Video Balun allows transmission of up to 2 composite video signals and up to 2 unbalanced audio signals in a point-to-point configuration using Cat5E/6 UTP (Unshielded Twisted Pair) cable, eliminating the need for up to 4 coaxial cables. When used in conjunction with MuxLab's Audio-Video Distribution Hub (p/n 500200), the balun allows distribution of audio-video signals via UTP to up to 8 locations. It is used in pairs to transmit color video signals at a distance of up to 2200' (670m) and audio signals up to 3250' (990m) via Cat5E/6. Providing a hassle-free cabling solution, the balun connects to DVD, VCR, camcorders, audio receivers, audio amplifiers, AV switchers, splitters, AV mixers, and other analogue audio-video equipment featuring coaxial input or output with BNC or RCA connectors. Supporting composite video and unbalanced audio, the Dual Audio-Video Balun can be used in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, podium presentation systems, and video kiosks. - Allows transmission of up to 2 composite video signals and up to 2 unbalanced audio signals in a point-to-point configuration using Cat5E/6 UTP cable
- Eliminates the need for up to 4 coaxial cables
- Allows distribution of audio-video signals via UTP to up to 8 locations when used in conjunction with MuxLab's Audio-Video Distribution Hub (p/n 500200)
- Used in pairs to transmit color video signals at a distance of up to 2200' (670m) and audio signals up to 3250' (990m)
- Hassle-free cabling solution
- Compact design - 2.40 x 2.25 x 1.00" (6.1 x 5.7 x 2.54 cm)
- Fire retardant plastic enclosure
- Can be used in classroom video distribution, commercial and home audio/video systems, hospital video training, video conferencing, podium presentation systems, and video kiosks
UPC: 627699000120 In the Box MuxLab Dual Audio-Video Balun Lifetime Warranty Quick-Start Guide PDF 37.5kbwtyzrusbxywbeuve Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab Dual Audio-Video Balun in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500012 Specs | Standards | Composite video and unbalanced audio for the consumer and commercial market | | Transmission | Transparent to the user | | Bandwidth | Video: DC to 8 MHz
Analog audio: 20 Hz to 20 KHz | | Maximum Input | 1.1Vp-p | | Insertion Loss | Less than 2 dB per pair over the frequency range from DC to 8 MHz | | Return Loss | Greater than 15 dB over the frequency range from DC to 8 MHz | | Common Mode Rejection | Greater than 40 dB @ 8 MHz | | Maximum Distance | Color Video Cat5e/6: 2,200' (671m)
Audio Cat5e/6: 3,250' (1 km) | | Cable | Cat5E/6 UTP/STP
24 gauge or lower solid copper twisted pair wire impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/foot
Attenuation: 6.6 dB/1,000' (304.8m) at 1 MHz
RCA
Standard audio cable terminated by RCA connectors
BNC
75-ohm coaxial cable | | Connectors | 2 RCA-receptacle for video
2 RCA-receptacle for audio
1 RJ45 jack | | Pins | Video 1: Pins 7 (R) & 8 (T)
Video 2. Pins 4 (R) & 5 (T)
Audio 1: Pins 1 (R) & 2 (T)
Audio 2: Pins 3 (R) & 6 (T) | | Impedance | Video: 75 ohms (RCA) unbalanced
Audio: 600 ohms (RCA) unbalanced | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Enclosure | Fire retardant plastic | | Dimensions | 2.4 x 2.3 x 1" (6.1 x 5.7 x 2.5cm) | | Weight | 2.1 oz (61g) | | | | Package Weight | 0.2 lb | | Box Dimensions (LxWxH) | 5.7 x 3.6 x 1.1" |
