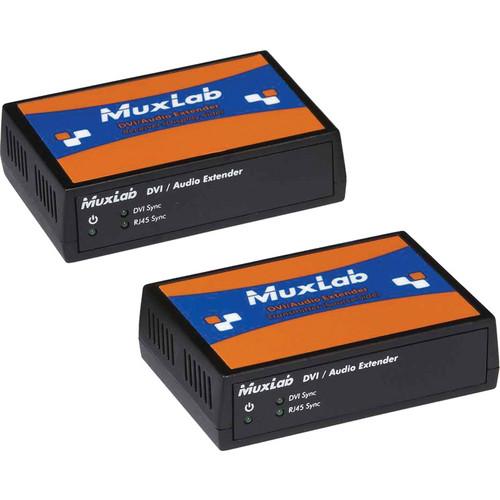

User Manual for MuxLab DVI & Audio Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab DVI & Audio Extender Kit
- Product category: KVM Extenders MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab KVM Extenders
|
User manual for the MuxLab DVI & Audio Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab DVI & Audio Extender Kit is a compact transmitter and receiver set that extends a DVI and line level stereo audio signal over a single Cat5e/6 (or better) twisted pair cable. You can transmit up to 1080p HD and 1920 x 1200 computer resolutions 230 ft and 4K resolution 115 ft. (DVI supports 4K if your device's graphics card does.) A twisted pair cable is not included. - Transmits DVI and line level stereo audio in 1080p and 4K
UPC: 627699003909 In the Box MuxLab DVI & Audio Extender Kit 2 x 110-240 V / 5 VDC Power Supply with Interchangeable Blades 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab DVI & Audio Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500390 Specs | | | Ports | Transmitter:
1 x RJ45 Ethernet (Output)
1 x DVI-D 1.0 (Input)
1 x 3.5 mm Audio (Input)
Receiver:
1 x DVI-D 1.0 (Output)
1 x 3.5 mm Audio (Output)
1 x RJ45 Ethernet (Input) | | Maximum Transmission Distance | 230' / 70 m | | | | DC Input Power | 5 VDC | | Power Consumption | 3.2 W | | AC Input Power | 110 to 240 VAC, 50 / 60 Hz | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Material of Construction | Aluminum | | Dimensions | 4.5 x 3.0 x 1.2" / 11.4 x 7.6 x 3.2 cm | | Weight | 2.6 lb / 1.2 kg | | | | Package Weight | 1.985 lb | | Box Dimensions (LxWxH) | 8.55 x 7.1 x 3.05" |
