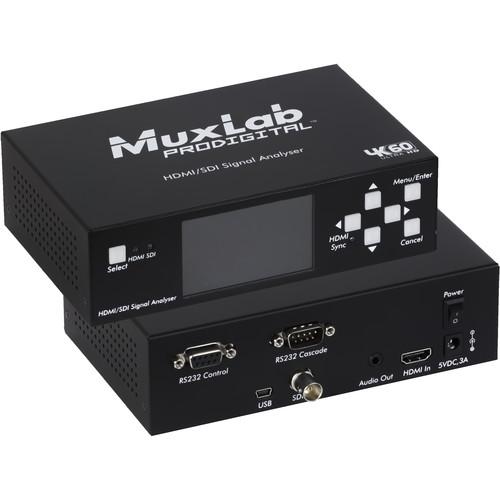

User Manual for MuxLab HDMI 2.0 3G-SDI Signal Analyzer Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI 2.0 3G-SDI Signal Analyzer
- Product category: Test Equipment MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Test Equipment
|
User manual for the MuxLab HDMI 2.0 3G-SDI Signal Analyzer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The HDMI 2.0/3G-SDI Signal Analyzer from MuxLab is a portable test tool designed to analyze SD/HD/3G-SDI and HDMI 2.0 test patterns in a full range of resolutions up to 4K at 60 Hz (4:4:4). The unit assists users in validating the capabilities and proper operation of their source devices. When used with the 500830 Signal Generator (available separately), a useful set of cable connectivity/quality tests, and device compatibility tests can be performed to help identify problems. This signal analyzer is portable with an internal rechargeable lithium-ion battery, allowing the device to be operated for up to five hours per charge. - Designed for testing AV source devices and AV transmission infrastructure
- Supports RGB444, YUV444, YUV422, and YUV420 (HDMI 2.0 only) color
- Supports an HDMI cable test function
- Displays AV signal characteristics
- 3" LCD panel for pattern preview and menu settings
- Supports seven audio sample rates
- VU meter supported on LCD
- Supports HDCP 2.2 and 1.4
- Locally or remotely managed via RS-232 or USB
- Supports an RS-232 cascade for management
- Windows management software
UPC: 627699008317 In the Box MuxLab HDMI 2.0/3G-SDI Signal Analyzer Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 2.0 3G-SDI Signal Analyzer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500831 Specs | Environment | HDMI 2.0 and 3G-SDI | | HDMI Support | Up to HDMI 2.0/DVI | | SDI Formats Supported | SD-SDI, HD-SDI, and 3G-SDI | | HDCP Support | HDCP 2.2 and 1.4 | | Video Bandwidth | Up to 18.0 GHz (6.0 GHz per Channel) | | Color Depth | 24-/30-/36-/48-Bit | | Color Space | RGB444, YUV444, YUV422, YUV420 (HDMI 2.0 Only) | | Audio Bit Depth | 16-/20-/24-Bit | | Audio Sample Rate | 32/44/48/88/96/176/192 K | | Vertical Frequency Range | ≤ 120 Hz | | Connectors | 1 x HDMI, Video Input
1 x BNC, SDI Video Input
1 x S/PDIF, Digital Audio Output
1 x 1/8" / 3.5mm Jack, Analog Audio Output
1 x 9-Pin Sub-D, RS-232 Management
1 x Terminal Block, RS-232 Cascading Management
1 x USB, Management
1 x 2.1mm Jack Locking, Power | | Power Source | 1 x 110/240 VAC to 5 VDC at 1 A Power Supply, with Interchangeable Blades for US, UK, and EU
1 x Built-In (Non-Serviceable) Rechargeable Lithium-Ion Battery, Supports up to 5 Hours of Usage per Charge
(Unit Features a Power Switch on Rear. Battery Charge Duration May Vary.) | | Power Consumption | 2 W | | Temperature | Operating: 32 to 104°F / 0 to 40°C
Storage: -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% Non-Condensing | | Enclosure | Metal | | Compliance | Regulatory: FCC, CE, RoHS
Flammability: 94V0 | | Dimensions | 6.69 x 1.97 x 4.29" / 17 x 5 x 10.9 cm, Not Including Connectors | | Weight | 2.05 lb / 0.93 Kg | | | | Package Weight | 3.1 lb | | Box Dimensions (LxWxH) | 10.7 x 8.3 x 3.3" |
