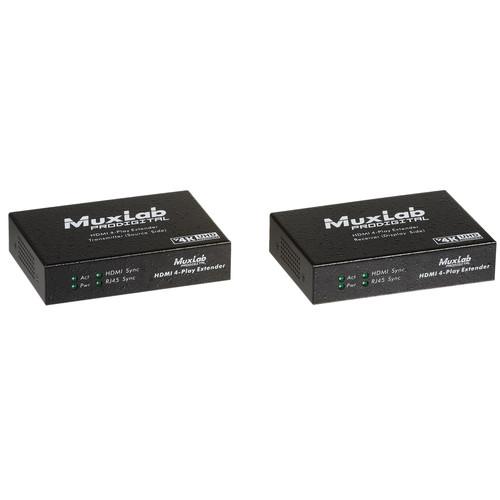

Product description The HDMI 4-Play Extender Kit from MuxLab is an extender kit that allows HDMI equipment to be connected up to 330' (100 m) @ 1080p Deep Color via one Cat 5e/6 unshielded twisted pair cables in a point-to-point configuration. The product also features one LAN port for interconnecting Ethernet equipment and a RS-232 port for control via the same Cat 5e/6 cable. The kit comes with one transmitter and one receiver as well as an IR Emitter and IR Sensor for remote control applications. - 500998 IR Emitter The MuxLab 500998 IR Emitter is designed to provide support for IR source control between an AV source and display. It is connected to an active balun transmitter, and when used in conjunction with an IR receiver, supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats.
- Designed to provide support for IR source control between an AV source and display
- Connected to an active balun transmitter
- Used in conjunction with an IR receiver
- Supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats
UPC: 627699009987 - 500999 IR Sensor The MuxLab 500999 IR Sensor is designed to provide support for IR source control between an AV source and display. It is connected to an active balun receiver, and when used in conjunction with an IR transmitter, supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats.
- Designed to provide support for IR source control between an AV source and display
- Connected to an active balun receiver
- Used in conjunction with an IR transmitter
- Supports NEC code, RC5 code, RC6 code, Grunding code, RCA Code, Zenith code, and Sony 12-bit code IR data formats
UPC: 627699009994 In the Box Bundle Items 500998 IR Emitter 500999 IR Sensor
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 4-Play Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 500998 IR Emitter
| Environment | Infra-red (IR) control | | Devices | TV Sets, STB, DVD, DVR, PVR, satellite receivers | | Compatible With | 500145, 500405, and 500406 P/Ns | | Transmission | Transparent to the user | | IR Data Format Supported | NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code | | Carrier Frequency | 38 kHz | | IR Wavelength | 940nm | | Connector | 3.5mm (mono) plug | | Temperature | Operating: 32 to 104º F (0 to 40º C)
Storage: 14 to 158º F (-10 to 70º C)
Humidity: Up to 95% non-condensing | | Enclosure | Dark purple epoxy resin | | Dimensions | 0.79 x 0.95 x 0.51" (20 x 24 x 13 mm) with 71" (1.8m) cable | | Weight | 0.64oz (18g) | | Regulatory | RoHS | | | | Box Dimensions (LxWxH) | 5.95 x 4.85 x 0.8" | - 500999 IR Sensor
| Environment | Infra-red (IR) control | | Devices | TV Sets, STB, DVD, DVR, PVR, satellite receivers | | Compatible With | 500145, 500405, and 500407 P/Ns | | Transmission | Transparent to the user | | Distance | 49.21' (15m) | | IR Data Format Supported | NEC code, RC5 code, RC6 code, Grundig code, RCA Code, Zenith code and Sony 12-bit code | | Carrier Frequency | 38 kHz | | IR Wavelength | 940nm | | Connector | 3.5mm (stereo) plug | | Temperature | Operating: 32 to 104º F (0 to 40º C)
Storage: 14 to 158º F (-10 to 70º C)
Humidity: Up to 95% non-condensing | | Enclosure | Dark purple epoxy resin | | Dimensions | 0.79 x 0.95 x 0.51" (20 x 24 x 13 mm) with 39" (1m) cable | | Weight | 0.64oz (18g) | | Regulatory | RoHS | | | | Box Dimensions (LxWxH) | 6.0 x 4.5 x 0.3" |
