User Manual for MuxLab HDMI 4K over Cat5e 6 HDBT Wall Plate Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI 4K over Cat5e 6
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab HDMI 4K over Cat5e 6 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

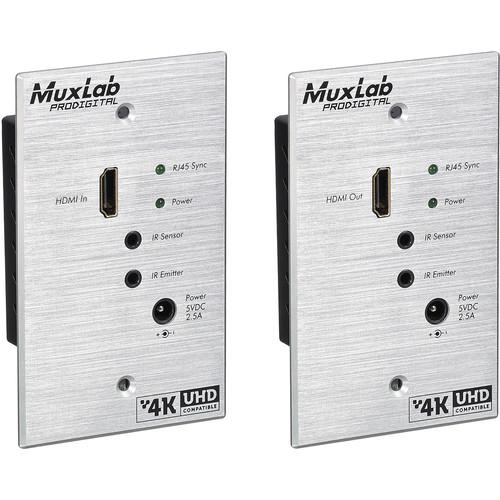

Product description The HDMI 4K over Cat5e/6 HDBT Wall Plate Extender Kit from MuxLab comes with a transmitter wall plate and a receiver wall plate. This US version kit allows HDMI equipment to be connected up to 200' (60 m) at 1080p resolution, and up to 131' (40 m) at 4K 3840 x 2160/24 resolution via one Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. - Supports 1080p deep color, 4K @ 30 fps, and 3D resolutions
- Up to 230' (70 m) via Cat5e cable
- Supports bidirectional IR
- Suitable for commercial and residential AV systems, classroom projector systems, digital signage, boardroom systems, collaborative PC systems, and medical information systems
UPC: 627699014516 In the Box MuxLab HDMI 4K over Cat5e/6 HDBT Wall Plate Extender Kit (US Version) Set of Mounting Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 4K over Cat5e 6 HDBT Wall Plate Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500451-WP-KIT Specs | Bandwidth | 340 MHz | | Signals | HDMI 1.4a protocol | | Connectors | 1 x HDMI
1 x RJ45S, Cat5e/6 | | Maximum Distance | Cat5e/6:
230' (70 m) up to 1080p Deep Color
131' (40 m) for 4K; 3840 x 2160/24, 25 & 30 Hz | | RJ45 Pin Configuration | RJ45
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T) | | Power Supply | 1 x 110 - 240 VAC, 5 VDC power supply with interchangeable blades | | Power Consumption | 6 W for each side | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | up to 95% non-condensing | | Enclosure | Metal Wall-Plate one gang | | Compliance | Regulatory: FCC, CE, RoHS | | Dimensions | 4.5 x 2.8 x 1.5" (11.4 x 7.1 x 3.8 cm) | | Weight | 1.6 lb (0.7 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 9.9 x 8.1 x 3.9" |
