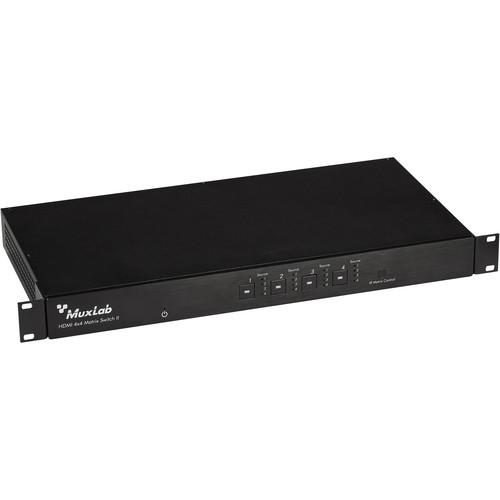

Product description The MuxLab HDMI 4x4 Matrix Switch HDBaseT & PoE (Europe Power Cord) allows you to distribute four HDMI sources among four HDMI displays via single Cat5e/6 cables to compatible receivers, sold separately, at a max switching time of 3 seconds. It supports resolutions up to UltraHD 4K (3840 x 2160) and transmits 4K up to 115 ft and 1080p60/50 up to 230 ft.
This switcher also features the ability to pass Power-over-Ethernet to supporting receivers over the same Cat5e/6 cables. Compatible receivers include models 500451-RX, 500454-RX, and 500454-POE-RX, the last one supporting PoE. The switcher can be controlled by front panel buttons, IR remote control (controller included), RS-232, webserver interface via a provided IP address, and USB control via a free-download software. LED diagnostics indicate power, connection, and LAN activity in different colors. Four IR sensors and IR emitters are also included for remote control of the source devices from the display location. - Key Features
-
- Distributes 4 HDMI sources among 4 HDMI displays via Cat5e/6 to compatible receivers
- Max switching time of 3 seconds
- Transmits UltraHD 4K up to 115 ft and 1080p60/50 up to 230 ft
- Passes Power-over-Ethernet to supporting receivers
- Front panel, IR, RS-232, webserver interface, and USB control
- Includes 4 IR sensors and 4 IR emitters
- Multi-color LED activity diagnostics
UPC: 627699814161 In the Box MuxLab HDMI 4x4 Matrix Switch HDBaseT & PoE (Europe Power Cord) 110-240V / 24VDC, 5A Power Supply with Europe Adapter 4 x 500999 IR Sensor fsbzxtabdvuwcc 4 x 500998 IR Emitter IR Remote Control USB Type A to Type B Cable 2-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 4x4 Matrix Switch HDBaseT & PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500416-POE-EU Specs | Environment | HDMI 1.4a, 3D support, HDBaseT | | Switching Time | 3 seconds (maximum) | | Input | 4x HDMI
4x 3.5 mm stereo jacks for IR sensors | | Output | 4x RJ45 HDBaseT
4x 3.5 mm mono for IR emitters | | Connectivity | Ethernet LAN (RJ45), USB (Type B), and RS-232 (DB-9) | | Transmission Distance Supported | Via UTP/STP Cat 5e/6:
115 ft (35 m) for up to 4K 3840 X 2160 @ 24/25/30 Hz
230 ft (70 m) for up to 1080p Deep Color | | RJ45 Pin Configuration | RJ45 A (HDMI A)
Pin 1 Pin 2 (T)
Pin 3 Pin 6 (T)
Pin 4 Pin 5 (T)
Pin 7 Pin 8 (T)
RJ45 B (HDMI B)
Pin 1 Pin 2 (T)
Pin 3 Pin 6 (T)
Pin 4 Pin 5 (T)
Pin 7 Pin 8 (T)
Reverse Polarity Sensitive
Use EIA/TIA 568A or 568B straight-through wiring | | Required Cabling | 1x Cat5e/6 UTP/STP cable (or better) required per HDBaseT port | | Power Supply | 1x 110-240 V / 24 VDC, 5 A power supply (with included Europe power cord) | | Compatible Receivers | MuxLab 500451-RX, 500454-RX, 500454-POE-RX | | Approvals | FCC, CE, RoHS, WEEE | | Operating Temperature | 32 to 104°F (0 to 40ºC) | | Storage Temperature | -4 to 185°F (-20º to 85ºC) | | Humidity | Up to 95% non-condensing | | Dimensions | 16.9 x 8.7 x 1.8" (43 x 22 x 4.5 cm), 1 RU rack-mountable | | Weight | Approx. 7 lb (Approx. 3 kg) | | | | Package Weight | 10.8 lb | | Box Dimensions (LxWxH) | 20.7 x 13.1 x 4.8" |
