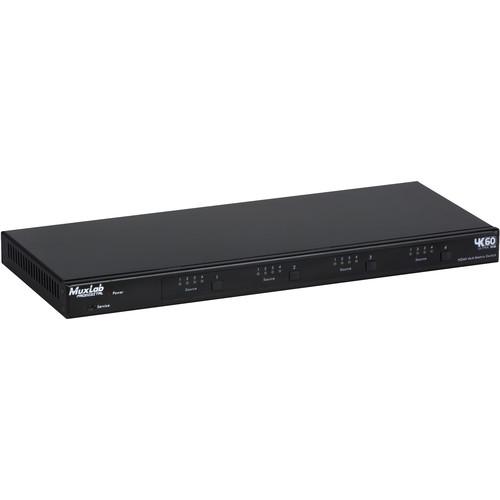

User Manual for MuxLab HDMI 4x4 Matrix Switcher Kit with United Kingdom Power Cord Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI 4x4 Matrix Switcher Kit
- Product category: Routers & Switchers MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Routers & Switchers
|
User manual for the MuxLab HDMI 4x4 Matrix Switcher Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The HDMI 4x4 Matrix Switcher Kit with United Kingdom Power Cord from MuxLab allows up to four different HDMI sources to be connected and/or distributed to up to four HDMI displays. The unit supports three HDBT outputs for long-distance connectivity and one HDMI output for local connectivity. The kit includes three HDBT PoC receivers which are powered by the matrix switch and support distances up to 229.6' at 1080p and 131.2' at 4K via Cat5e cable (not included). Management functions include front panel push-button, IR, RS232, and web server interface. Software update is also supported via the USB port. - Features
-
- Supports HDMI 2.0 (4K/60 4:2:0) & HDCP 2.2
- Supports LPCM 7.1 CH, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- RCA L/R audio out and TOSLink optical audio out
- Supports 2-way IR to manage end devices
- Powerful EDID management
- Built-in GUI web interface
- Applications
-
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
In the Box MuxLab HDMI 4x4 Matrix Switcher Kit with United Kingdom Power Cord 3 x HDBT PoC Receiver Wall Mount Bracket United Kingdom Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 4x4 Matrix Switcher Kit with United Kingdom Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500412-UK Specs | Environment | HDMI 2.0a | | Devices | Ultra HD Blu-ray, media players/streamers, projectors, monitors, TV, PC, laptops | | Transmission | Transparent to the user | | Video Bandwidth | 10.2 Gb/s | | Maximum Pixel Clock | 297 MHz | | Signals | HDMI 2.0 (4K/60 4:2:0) protocol and HDCP 1.4 & 2.2 | | Video Resolution | VESA and SMPTE 480p to 2160p (4K) with 3D
Bit depth: 8, 10, 12 | | Connectors | 5 x HDMI connectors for 4 x HDMI inputs & 1 x output
3 x RJ45 shielded connectors for HDBT
8 x 3.5 mm jacks for IR sensor & emitters
1 x 3-pin phoenix/terminal block (3.81 mm) for RS232
1 x TOSLink for digital audio output
1 x RCA jacks for 2-channel audio output
1 x RJ45 shielded connector for Ethernet
1 x USB port for firmware upgrade
1 x 2.1 mm barrel locking connector for power | | Audio | Analog Audio: 2-channel PCM
Digital Audio: PCM, Dolby TrueHD, DTS-HD Master Audio | | Cable | HDMI cable of appropriate length for video resolution selected
Cat 5e/6 or better twisted pair cable required | | Maximum Distance | Cat 5e/6: Up to 230' (70 m) @ 1080p
Up to 131' (40 m) @ 4K/30 (4:4:4), or 4K/60: (4:2:0) When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connections reduce the effective distance depending on the twisted pair cable used | | Number of Receivers | 3 x HDBT PoC receivers included | | Power Supply | 110 to 240 VAC to 24 VDC, 2.71 A | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 90% non-condensing | | Enclosure | Metal enclosure | | Compliance | Regulatory: FCC, CE, RoHS | | Dimensions | 14.17 x 1.10 x 5.91" (360 x 28 x 150 mm) | | Weight | 2.00 lb (0.91 kg) |
