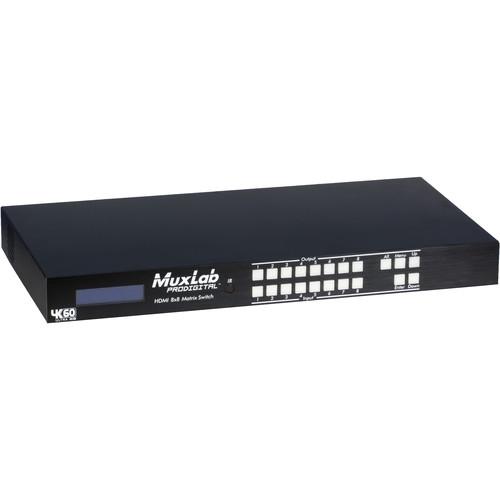

Product description The HDMI 8 x 8 Matrix 4K/60 Switcher with UK Power Cord from MuxLab connects eight HDMI sources to eight displays. It provides eight HDMI outputs and each HDMI output supports up to 4K resolution. The matrix also supports 3D formats and independent EDID control with scaling capability, so that different displays, each with different resolutions, can be simultaneously supported. It works with Blu-ray players, media players/streamers, cameras, set-top boxes, home theater systems, and game consoles that connect to an HDMI display. Any source can be accessed at any time, by any display, by selecting it via the supplied IR remote control, RS-232, TCP/IP, or by using the selection buttons on the front panel. - Features
-
- HDCP 2.2 compliant
- Full HDR support
- Powerful EDID management
- Supports independent port scaling and displays with different resolutions
- Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio, and DTS:X
- Supports coax digital audio out (S/PDIF)
- Available Window’s GUI control software
- Fits on a standard 19” rack
- Applications
-
- Commercial and residential AV systems
- Classroom training systems
- Digital signage
- Boardroom systems
- Collaborative PC systems
- Medical information systems
UPC: 627699914434 In the Box MuxLab HDMI 8 x 8 Matrix 4K/60 Switcher with UK Power Cord UK Power Cord Bracket IR Remote Control Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 8 x 8 Matrix 4K 60 Switcher with UK Power Cord in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500443-UK Specs | Environment | HDMI 2.0a | | Devices | 4K Blu-ray, media players/streamers, projectors, monitors, TV, PC, laptops | | Transmission | Transparent to the user | | Video Bandwidth | 18 Gb/s | | Maximum Pixel Clock | 594 MHz | | Signals | HDMI 2.0a (4K/60 4:4:4) protocol and HDCP 1.4 and 2.2 | | Video Resolution | VESA and SMPTE 480p to 2160p (4K) with 3D
Bit Depth: 8, 10, 12 | | Connectors | 8 x HDMI connectors, for HDMI input
8 x HDMI connectors, for HDMI output
1 x 3.5 mm jack, for IR sensor
1 x DB9 connector for RS232 management
1 x RJ45 shielded connector for Ethernet
8 x Coax digital audio outputs
1 x 2.1 mm barrel locking connector for power | | Audio | Supports LPCM 7.1CH, Dolby TrueHD, Dolby Digital Plus, Dolby Atmos, DTS-HD Master Audio & DTS:X | | HDMI Distance | 32.8' (10 m) for HDMI cable | | Power Supply | 110 to 240 VAC
12 VDC, 5.0 A | | Temperature | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Enclosure | Metal enclosure | | Compliance | Regulatory: FCC, CE, RoHS | | Dimensions | 17.20 x 1.69 x 8.86" (437 x 43 x 225 mm) | | Weight | 9.69 lb (4.40 kg) | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 19.3 x 13.2 x 3.5" |
