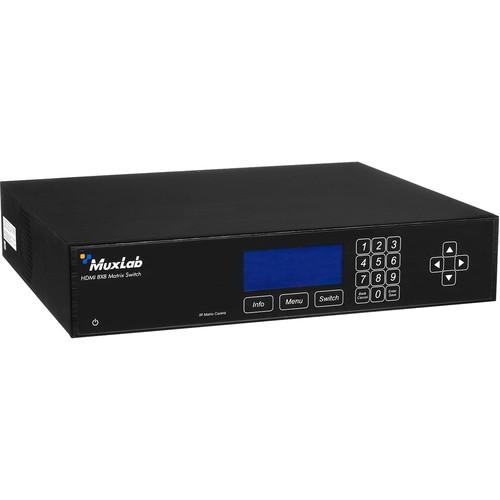

User Manual for MuxLab HDMI 8x8 Matrix Switch HDBaseT & PoE Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI 8x8 Matrix Switch HDBaseT
- Product category: Routers & Switchers MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Routers & Switchers
|
User manual for the MuxLab HDMI 8x8 Matrix Switch HDBaseT contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|
Product description The MuxLab HDMI 8x8 Matrix Switch HDBaseT & PoE (EU Power Cord) allows you to distribute 8 HDMI sources among eight displays via CAT5e/6 cables to compatible receivers, sold separately, at a max switching time of 3 seconds. It supports 2K and 1080p60/50 resolutions, transmitting them up to 230 ft.
This switcher also features the ability to pass Power-over-Ethernet to supporting receivers over the same Cat5e/6 cables. Available, but not included, receivers include MuxLab models 500451-RX, 500454-RX, and 500454-POE-RX (with PoE support). The switcher can be controlled by its front panel buttons, an included IR remote control, RS-232, or webserver interface - utilizing the RJ-45 Ethernet port. USB control can be enabled by downloading and activating free software. The unit incorporates LED indicators for power, connection, and LAN activity in different colors. One IR sensor and four IR emitters are also included for remote control of the source devices from the display location, additional IR sensors are available for purchase separately. - Key Features
-
- Distributes 8 HDMI sources among 8 HDMI displays via CAT5e/6 to compatible receivers
- Max switching time of 3 seconds
- UTP/STP extension for 1080p Deep Color up to 230’ via Cat 5e/6 UTP/STP cables
- Single modular RJ45 jacks
- HDMI 3D support
- HDMI input supported with resolution up to 1080p
- HDBaseT supported output
- Configurable EDID settings
- Web interface
- Firmware is field upgradable
- Touch pad on front panel for manual control
- Device control over HTTP protocol
- Passes Power-over-Ethernet to supporting receivers
- Front panel, IR, RS-232, webserver interface, and USB CDC control
- Includes 1 IR sensor and 8 IR emitters
- Multi-color LED activity diagnostics
- 2U rackmount unit
- HDCP 1.4 compliant
In the Box MuxLab HDMI 8x8 Matrix Switch HDBaseT & PoE (EU Power Cord) 110-240V / 24VDC, 5A Power Supply with EU Adapter 500999 IR Sensor 8 x 500998 IR Emitter IR Remote Control USB Type A to Type B Cable Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI 8x8 Matrix Switch HDBaseT & PoE in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500469-POE-EU Specs | Environment | HDMI 1.4a, 3D support, HDBaseT | | Switching Time | 3 seconds (maximum) | | Input | 8 x HDMI
8 x 3.5 mm stereo jacks for IR sensors | | Output | 8 x RJ45 HDBaseT
8 x 3.5 mm mono for IR emitters | | Connectivity | Ethernet LAN (RJ45), USB (Type B), and RS-232 (DB-9) | | Transmission Distance Supported | Via UTP/STP Cat 5e/6: 230' (70 m) | | Required Cabling | HDMI and Cat5e/6 UTP/STP cables (or better) required for HDBaseT port | | Power Supply | 110 to 240 VAC 50/60 Hz, 0.72 A power supply (with included US power cord) | | Compatible Receivers | MuxLab 500451-RX, 500454-RX, 500454-POE-RX Not included. | | Approvals | FCC, CE, RoHS, WEEE | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 185°F (-20 to 85°C) | | Humidity | Up to 95% non-condensing | | Dimensions | 19.0 x 13.6 x 3.5" (48.3 x 34.5 x 8.8 cm), 2 RU rack-mountable | | Weight | Approximate 7 lb (3 kg) |
