User Manual for MuxLab HDMI Bi-IR Extender Kit Click to enlarge the picture
Contents of the user manual for the MuxLab HDMI Bi-IR Extender Kit
- Product category: Video Extenders & Repeaters MuxLab
- Brand: MuxLab
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for MuxLab Video Extenders & Repeaters
|
User manual for the MuxLab HDMI Bi-IR Extender Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any MuxLab product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official MuxLab user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a MuxLab product will considerably shorten its lifespan!
|

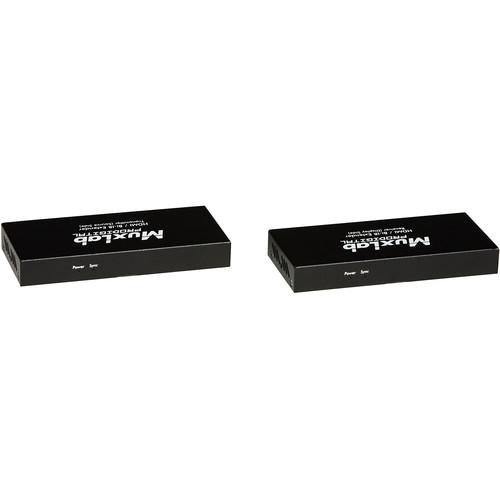

Product description The HDMI / Bi-IR Extender Kit from MuxLab consists of a transmitter, receiver, IR Emitter and IR Sensor (for remote control applications). This extender allows HDMI equipment to be connected up to 131' 1080p via a single Cat 5e/6 unshielded twisted pair cables in a point-to-point configuration. Four mounting ears are also provided for wall-mount applications. - Allows HDMI equipment to be connected up to 158' (40 m) @ 1080p via one Cat 5e/6 unshielded twisted pair cables
- Suitable for commercial and residential audio, boardroom, collaborative PC, and medical information systems
UPC: 627699004043 In the Box MuxLab HDMI / Bi-IR Extender Kit Transmitter Receiver IR Emitter IR Sensor 4 x Wall-Mount Brackets and Screws Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the MuxLab HDMI Bi-IR Extender Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersMuxLab 500404 Specs | Bandwidth | 225 MHz | | Signals | HDMI 1.3A protocol | | Connectors | 1 x HDMI
1 x RJ45S, Cat 5e/6
2 x 3.5 mm phone jack, IR emitter / sensor | | Maximum Distance | 480i/p: Cat 5e/6: 131' (40 m)
720p, 1080i: Cat 5e/6: 131' (40 m)
1080p: Cat 5e/6: 131' (40 m) | | RJ45 Pin Configuration | RJ45 Link
Pin 1 (R) Pin 2 (T)
Pin 3 (R) Pin 6 (T)
Pin 4 (R) Pin 5 (T)
Pin 7 (R) Pin 8 (T) | | Cable | 1 x Cat 5e/6 or better twisted pair cables required | | Power Supply | 2 x 110 - 240 VAC, 12 VDC power supplies with interchangeable blades; US, UK & Euro | | Power Consumption | Transmitter: 5 W
Receiver: 5 W | | Operating Temperature | 32 to 95°F (0 to 35°C) | | Storage Temperature | -4 to 158°F (-20 to 70°C) | | Humidity | Up to 95% non-condensing | | Compliance | Regulatory: FCC, CE, RoHS | | Enclosure | Metal black | | Dimensions | 5.00 x 2.12 x 0.67" (12.70 x 5.38 x 1.70 cm) | | Weight | 1.4 lb (0.6 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.9 x 6.8 x 3.1" |
